| Product Parameter | Parameter Description |
| Size | 500Lx48.5Wx25H(mm) |
| Armature Plate Dimension | 180Lx38Wx11H(mm) |
| Holding Force | 280kgx2(600Lbsx2) |
| Input Voltage | 12 or 24VDC |
| Current | 12V/500mA*2 or 24V/250mA*2 |
| Suitable | Wooden door , Glass door ,Metal door , Fireproof door |
| Surface Temp | ≤+20℃ |
| Operating Temp | -10~+55℃(14-131F) |
| Humidity | 0~90%(non-condensing) |
| Cover Finish | Anodized aluminum |
| Lock Finish | Zinc |
| Armature Plate Finish | Zinc |
| Weight | 4.2kg |

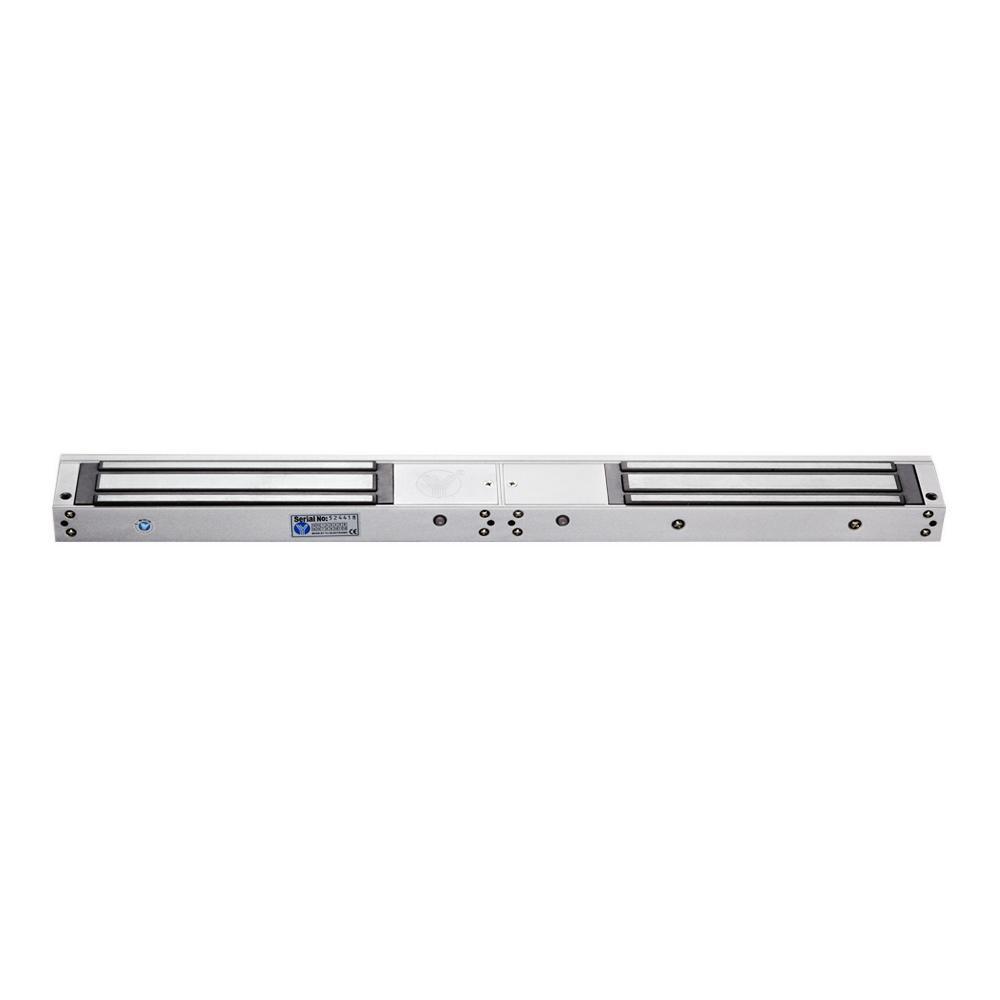

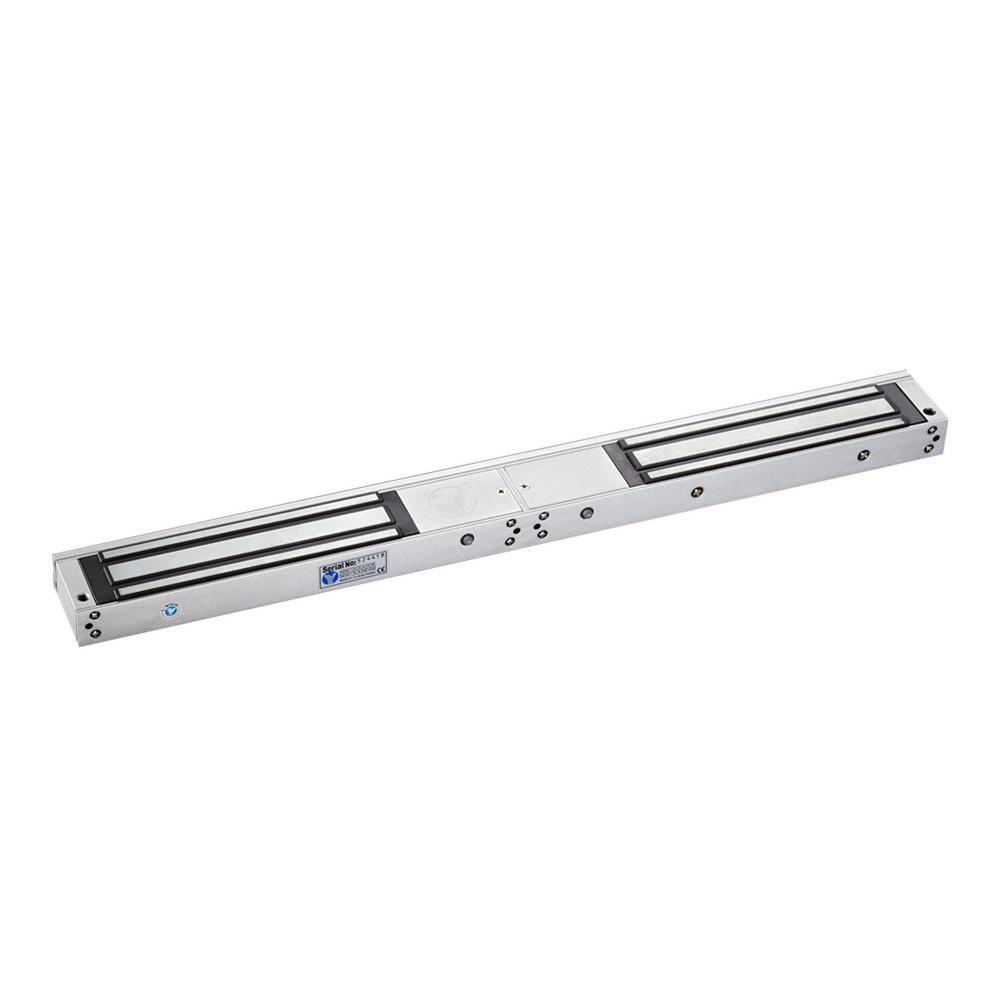

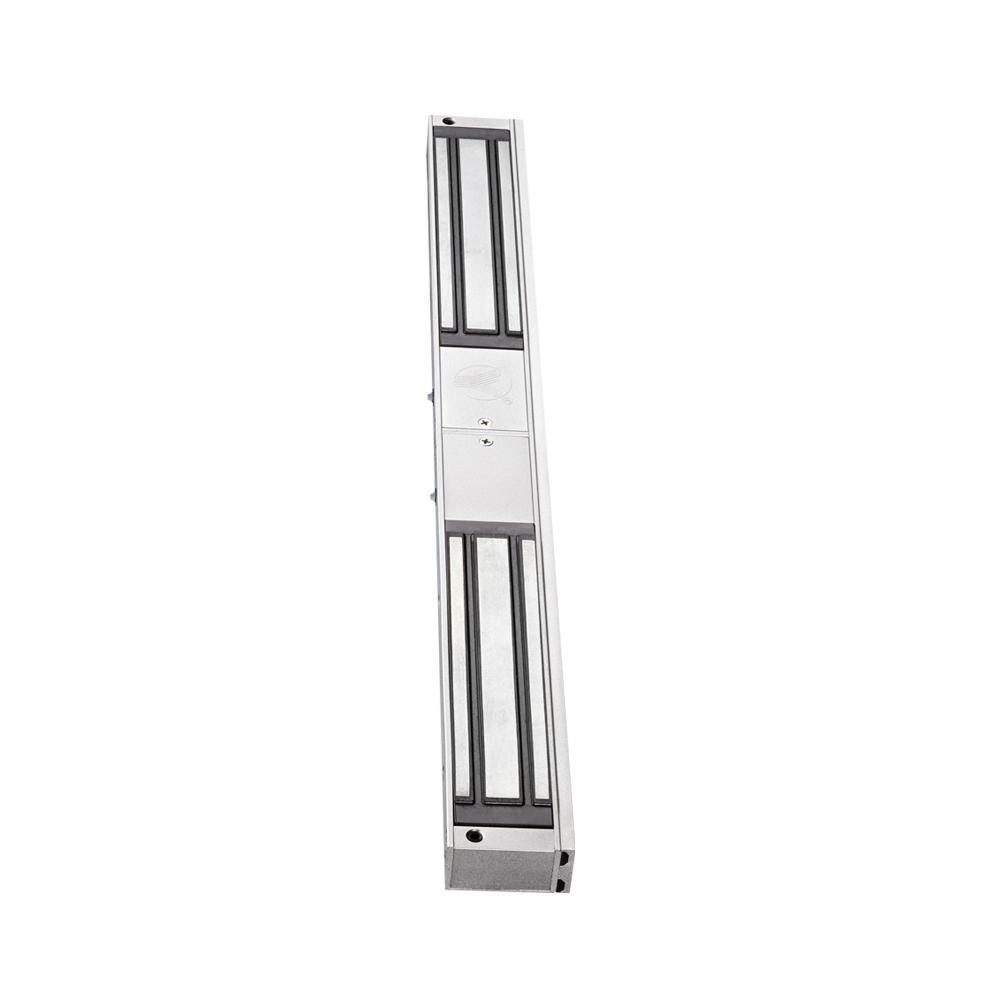

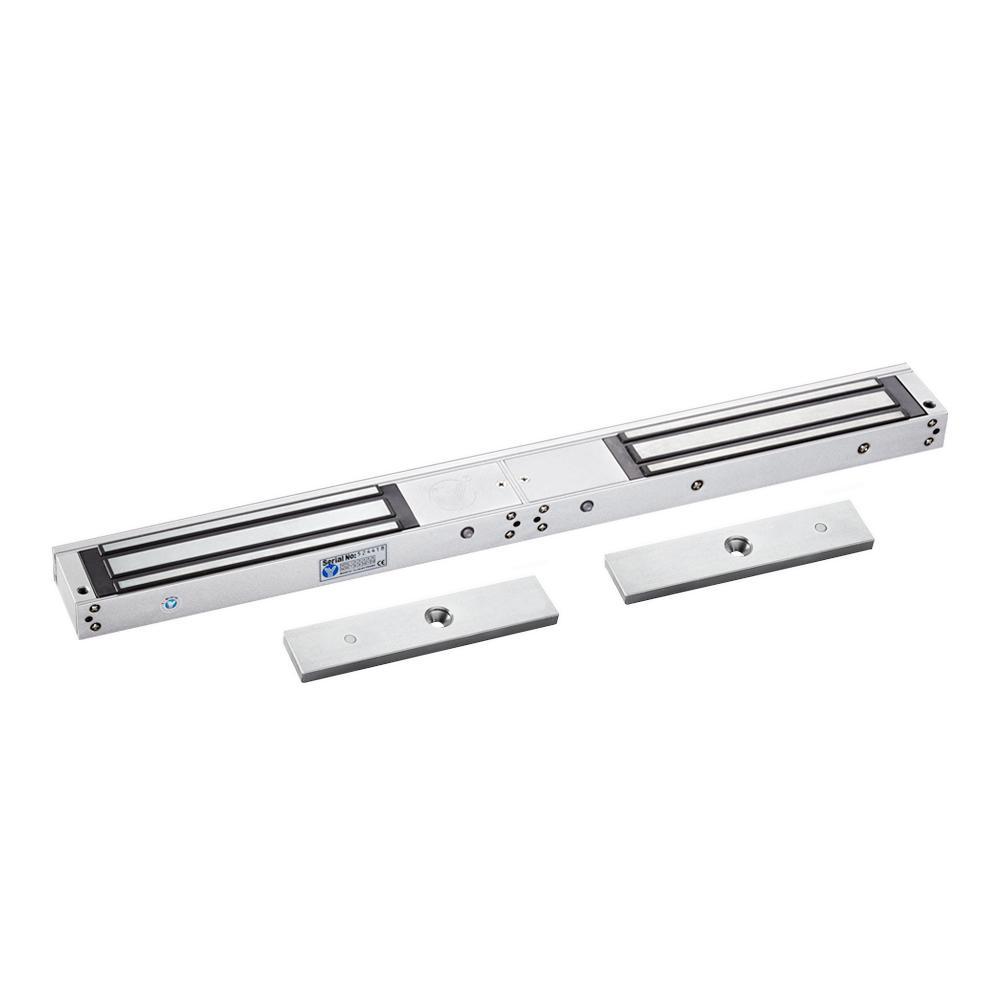

Khóa từ cửa đôi YM-280D (LED)
- HT_00801
- YLI
Collinear Load Test 280kgx2,600poundsx2.
Dual Voltage 12 or 24 VDC(optional).
The Standard Voltage is 12VDC when Finished.
MOV Provides Reverse Current Protection.
Anti-Residual Magnetism Designed.
High Strength Material,Anodized Aluminum Housing.
Design without Mechanical Failure.
Increase the holding Force,Dual Insulative Housing.
CE Certificate by European Union,MA Certificate by China Public Security Office.
