Kiểm tra tải trọng Collinear 280kg, 600pound.

Điện áp kép 12 hoặc 24 VDC (tùy chọn).

Điện áp tiêu chuẩn là 12VDC khi hoàn thành.

MOV cung cấp bảo vệ ngược dòng.

Thích hợp cho cửa gỗ, cửa kính, cửa kim loại, cửa chống cháy.

LED cho biết trạng thái cửa.

Cảm biến trạng thái khóa (NO / NC / COM).

Từ tính chống dư được thiết kế.

Vật liệu cường độ cao, vỏ nhôm Anodized.

Thiết kế không bị hỏng cơ.

Tăng lực lượng nắm giữ, Nhà ở cách điện kép.

Chứng chỉ CE của Liên minh Châu Âu, Chứng chỉ MA của Văn phòng Công an Trung Quốc.

Collinear Load Test 280kgx2,600poundsx2.

Dual Voltage 12 or 24 VDC(optional).

The Standard Voltage is 12VDC when Finished.

MOV Provides Reverse Current Protection.

Anti-Residual Magnetism Designed.

High Strength Material,Anodized Aluminum Housing.

Design without Mechanical Failure.

Increase the holding Force,Dual Insulative Housing.

CE Certificate by European Union,MA Certificate by China Public Security Office.

Bộ nguồn ABK-902-12-3

Bộ nguồn YP-902-12-3

Bộ nguồn YP-902-24-3

Bộ nguồn YP-902-12-5

Bộ nguồn YP-903-12-3

Bộ cung cấp điện YP-903-12-5

Bộ điều khiển cung cấp điện ABK-901-12-3

Bộ điều khiển cung cấp điện YP-901-12-3

Door Release Button PBK-810B

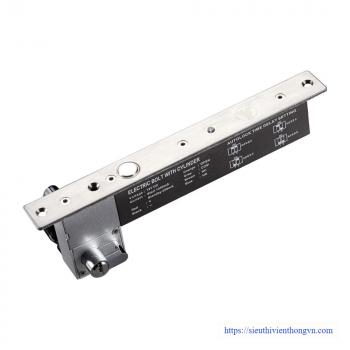

YB-600A (LED) is an all-metal construction electric bolt .with European-type cylinder and has both electric control and manual control functions.The Fail Secure is Locked when energized.The bolt of the lock adopts 304 stainless steel solid bar by CNC lathe, has 2000kg holding force. It colligates the system of Photoelectric control and Intelligent circuit design ,with the speciality of low-power consumption and anti-intrusion

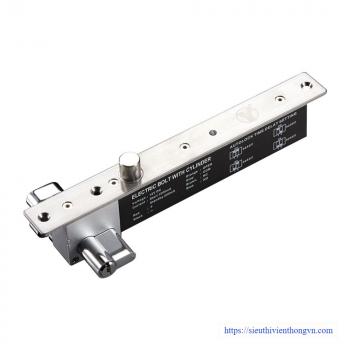

YB-600B (LED) is an all-metal construction electric bolt.with European-type cylinder and has both electric control and manual control functions. The Fail Secure is Unlocked when energized.Under the temperature of 60 ℃ or -40 ℃ below zero it can be operated normally benefit by the all-metal linkage parts. The 304 stainless steel bolt can withstand 2000kg holding force.

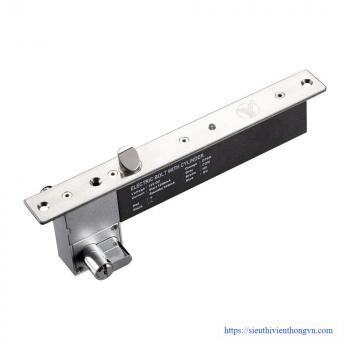

YB-600C (LED) is an all-metal construction electric bolt.with European-type cylinder and has both electric control and manual control functions and special latch bolt Design.The special design of all-metal linkage parts results it can bear with the temperature of 60 ℃ or -40 ℃ below zero .Special adopts 304 stainless steel Bolt by CNC lathe, can withstand 2000kg holding force.

YB-630A (LED) is an all-metal construction electric bolt.with European-type cylinder and has both electric control and manual control functions. It can be worked at the temperature of 60 ℃ or -40 ℃ below zero based on the all-metal linkage parts. It works in severe temperature..The high level material of stainless steel benefit it can withstand 2000kg holding force.

YB-630B (LED) is an all-metal construction electric bolt .with European-type cylinder and has both electric control and manual control functions. Based on the all-metal linkage parts,It can work at the temperature of 60 ℃ or -40 ℃ .The CNC lathe create the 304 stainless steel Bolt, which can bear with 2000kg holding force.
