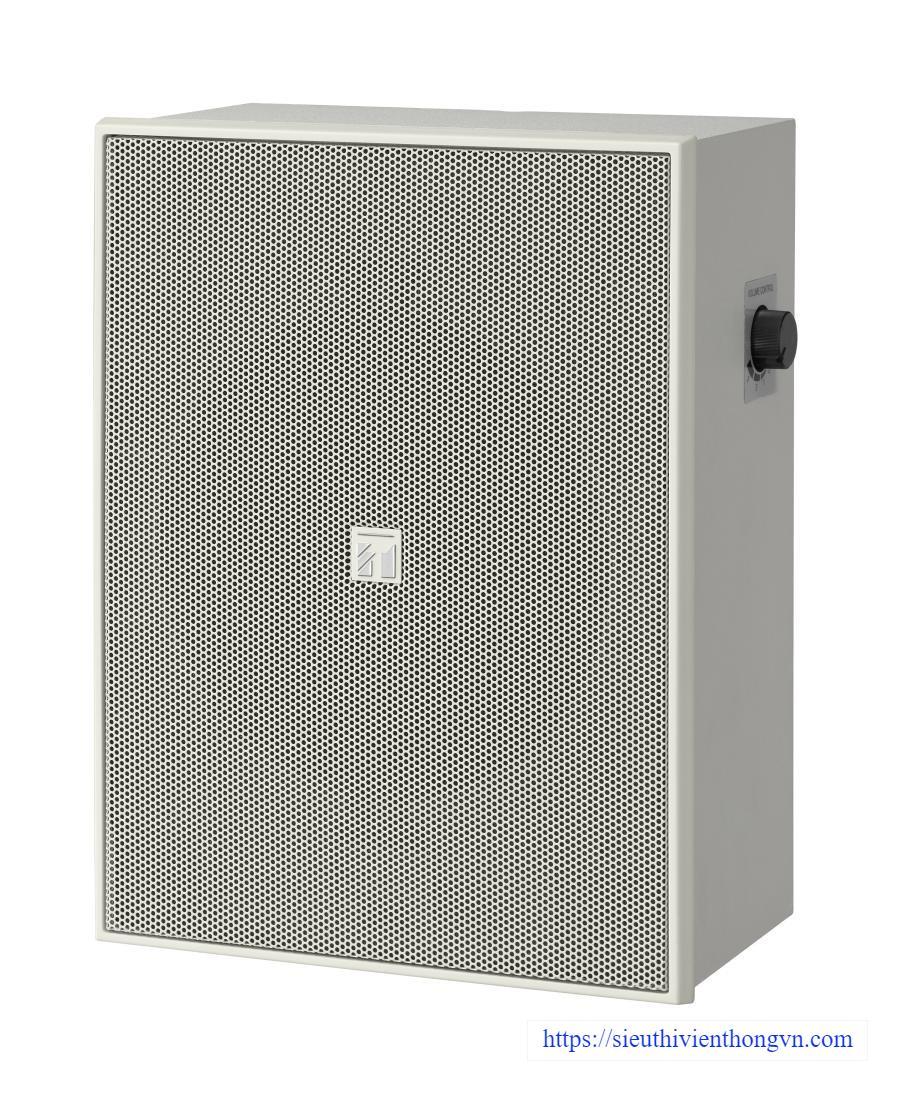

Loa hộp treo tường 6W TOA BS-678T
-Loa hộp treo tường TOA BS-678T được thiết kế dễ dàng cho việc lắp đặt.
-Ngõ vào loa loại nhấn.
-The BS-678T, of which cabinet is made of wood, can be installed in a vertical or horizontal orientation. Either concealed in-wall wiring or exposed wiring can be used for speaker cable connection. The speaker structure that permits direct wall-mounting with screws prevents the speaker from falling easily even if an outward force is applied to. The input impedance can be easily changed by changing the tap position of the transformer. Two built-in 6-inch double cone speaker units deliver high quality sound. The push-in type input connector makes cable connections easy and allows bridge wiring. BS-678T have a built-in attenuator and can be connected to a 2-wire or 3-wire system.
Đặc tính kỹ thuật
| Rated Input | 6 W (100V line), 3 W (70V line) |
| Rated Impedance | 100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W), 6.7 kΩ (1.5 W), 13 kΩ (0.8 W) |
| 70 V line: 1.7 kΩ (3 W), 3.3 kΩ (1.5 W), 6.7 kΩ (0.8 W), 13 kΩ (0.4 W) | |
| Sensitivity | 94 dB (1 W, 1 m) (500 Hz - 5 kHz, pink noise) |
| Frequency Response | 150 Hz - 20 kHz (peak -20 dB) |
| Speaker Component | 16 cm (6') double cone-type |
| Applicable Cable | 600 V vinyl-insulated cable (IV wire or HIV wire) |
| Solid wire: φ0.8 - φ1.6 mm (equivalent to AWG 20 - 14) | |
| 7-core twisted wire: 0.75 - 1.25 m㎡ (equivalent to AWG 18 - 16) | |
| Connection | Push-in connector (bridging terminal) |
| Attenuation | OFF, 1 (-12 dB), 2 (-6 dB), 3 (0 dB) |
| Finish | Baffle: HIPS, off-white (RAL 9010 or equivalent color) |
| Cabinet: Particle board with pvc sheet, off-white (RAL 9010 or equivalent color) | |
| Grille: Surface-treated steel plate net, off-white (RAL 9010 or equivalent color) | |
| Dimensions | 250 (W) x 190 (H) x 110 (D) mm (9.84' x 7.48' x 4.33') |
| (excluding volume control knob) | |
| Weight | 1.7 kg (3.75 lb) |
| Accessory | Speaker mounting screw (4 x 35 (0.16' x 1.38')) …2 |
-Sản xuất tại Indonesia.
-Bảo hành: 12 tháng.
