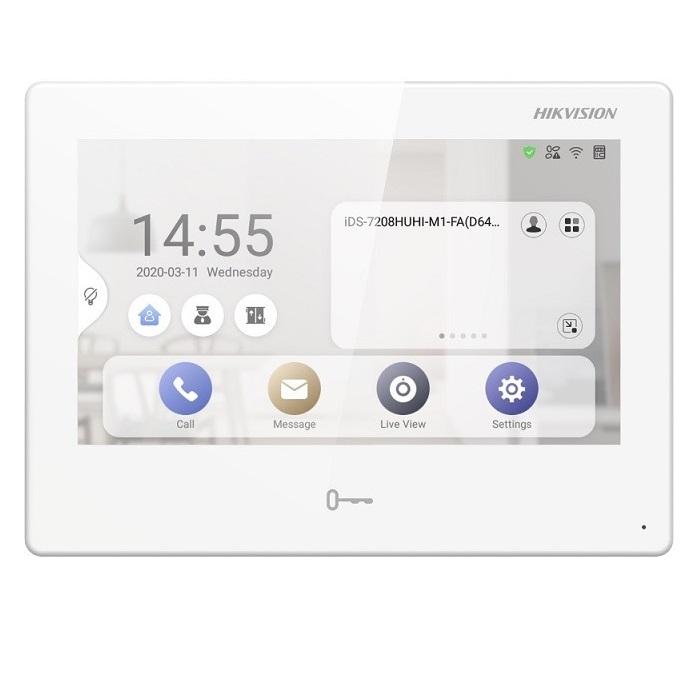

Màn hình màu chuông cửa IP không dây HIKVISION DS-KH9310-WTE1
- Màn hình chuông cửa cho căn hộ dùng hệ điều hành Android.
- Màn hình cảm ứng, kích thước 7-inch, độ phân giải 1024 x 600.
- Hỗ trợ kết nối wifi.
- Lưu tin nhắn và ảnh chụp được vào trong thẻ nhớ dung lượng tối đa 32GB.
- Hỗ trợ 8 kênh báo động input, 2 kênh báo động output.
- Full tính năng quản lý trên Hik-connect.
- Tích hợp mic và loa.
- Nguồn điện: 12 VDC/ PoE IEEE802.3af.
Đặc tính kỹ thuật
| Model | DS-KH9310-WTE1 |
| System parameters | |
| Operation system | Embedded Android operation system |
| Flash | 1GB |
| RAM | 4 GB Emmc |
| CPU | Embedded processor |
| Display Parameters | |
| Size | 7-inch |
| Operation Method | Capacitive touch screen |
| Type | Colorful TFT |
| Resolution | 1024 × 600 |
| Device interfaces | |
| Alarm input | 8 |
| Network interface | 1 RJ-45 10/100 Mbps self-adaptive |
| RS-485 | 1 |
| USB | For debug only |
| TF card | Max to 32 G, SD 2.0 or lower version |
| Alarm output | 2 |
| Power interface | 1 |
| Audio parameters | |
| Audio input | Built-in omnidirectional microphone |
| Audio compression standard | G.711 U, G.711 A |
| Audio output | Built-in loudspeaker |
| Audio compression bitrate | 64 Kbps |
| Audio quality | Noise suppression and echo cancellation |
| Volume adjustment | Adjustable |
| Capacity | |
| Linked IPC | 16 |
| Linked indoor extensions | 5 |
| Notices | 200 |
| Linked doorphone | 8 |
| Network parameters | |
| Communication protocol | TCP/IP, SIP, RTSP |
| Wired network | Support |
| Wi-Fi | Wi-Fi 802.11 b/g/n |
| General | |
| Installation | Surface mounting |
| Weight | 419.3 g |
| Working temperature | -10°C to 50°C |
| Working humidity | 10% to 90% |
| Dimensions | 187 × 137 × 25.7 mm |
| Power supply | IEEE802.3af, standard PoE 12VDC, 1A |
| Application environment | Indoor |
| Power consumption | ≤ 8W |
- Bảo hành: 24 tháng.
