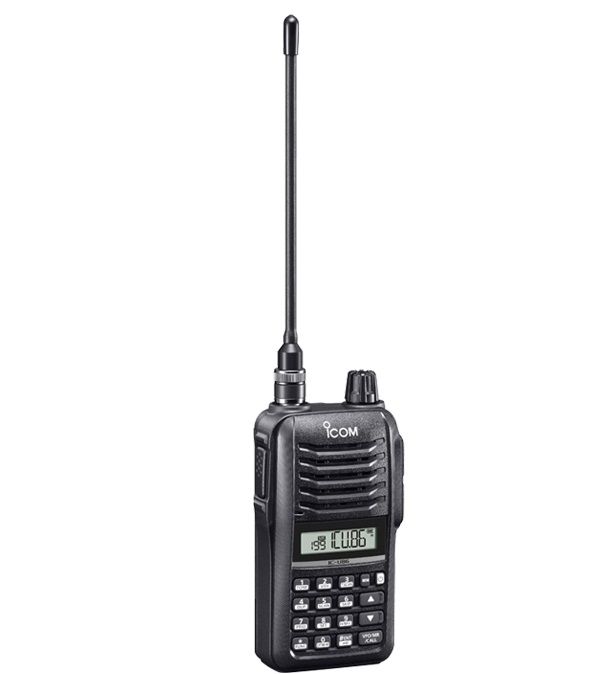

Máy bộ đàm ICOM IC-U86-UHF
- Dải tần số hoạt động:
+ EXP1: 400–472 MHz;
+ EXP2: 330–400 MHz.
- Dung lượng kênh: 207 kênh (200 memory channels, 1 call channel and 6 scan edges).
- Công suất hoạt động: 7W.
- Công suất âm thanh: 1500mW.
- Tiêu chuẩn chống bụi và chống nước: IP57.
Thông số kỹ thuật
| General | |
| Frequency range (TX/RX guaranteed range) | EXP1: 400–472 MHz (EX Hi power TX: 430–450 MHz) EXP2: 330–400 MHz (EX Hi power TX: 335.4–380 MHz) |
| Type of emissions | F2D, F3E (FM, FM-N) |
| Number of channels | 207 channels (200 memory channels, 1 call channel and 6 scan edges) |
| Antenna impedance | 50Ω |
| Power supply requirement | 7.5 VDC |
| Operating temperature range | -20˚C to +60˚C, -4°F to +140°F |
| Frequency stability | ±2.5 ppm (–20˚C to +60˚C, –4°F to +140°F) |
| Current drain | EXP1: 1.6/1.5/1.0/0.5 A typ. EXP2: 1.6/1.4/0.9/0.5 A typ. 450 mA typ. (INT SP), 200 mA typ. (EXT SP) |
| Dimensions (W×H×D) (Projections not included) | 58.6 × 112 × 30.5 mm, 2.3 × 4.4 × 1.2 in (with BP-298) |
| Weight (Approximate) | 290g, 10.2 oz (with BP-298, FA-B57U) |
| Transmitter | |
Output power (EX Hi/Hi/Mid/Low) | 5.5/4/2/0.5 W |
| Maximum frequency deviation | ±5.0 kHz/±2.5 kHz (Wide/Narrow) |
| Spurious emissions | Less than –60 dB |
| External microphone connector | 3-conductor 2.5 (d) mm (1/10')/2.2 kΩ |
| Receiver | |
| Sensitivity | EXP1: -121 dBm typical EXP2: -123 dBm typical |
| Squelch sensitivity | -126 dBm typical |
| Selectivity (Wide/Narrow) | 75 dB typical/70 dB typical |
| Intermodulation | 70 dB typical/68 dB typical |
| Audio output power | Internal speaker: 1500 mW typical (with 8 Ω load) External speaker: 550 mW typical (with 8 Ω load) |
| External speaker connector | 3-conductor 3.5 (d) mm (1⁄8')/ 8 Ω |
| Ingress Protection Standard | |
| Dust and Water | IP54 (Dust-protection, water resistance) |
- Phụ kiên gồm:
+ Pin BP-298 Li-ion 2250mAh;
+ Bộ sạc BC-240;
+ Anten, bát cài.
- Máy sản xuất tại Nhật Bản.
- Bảo hành: 24 tháng cho thân máy, 12 tháng cho Pin và phụ kiện.
