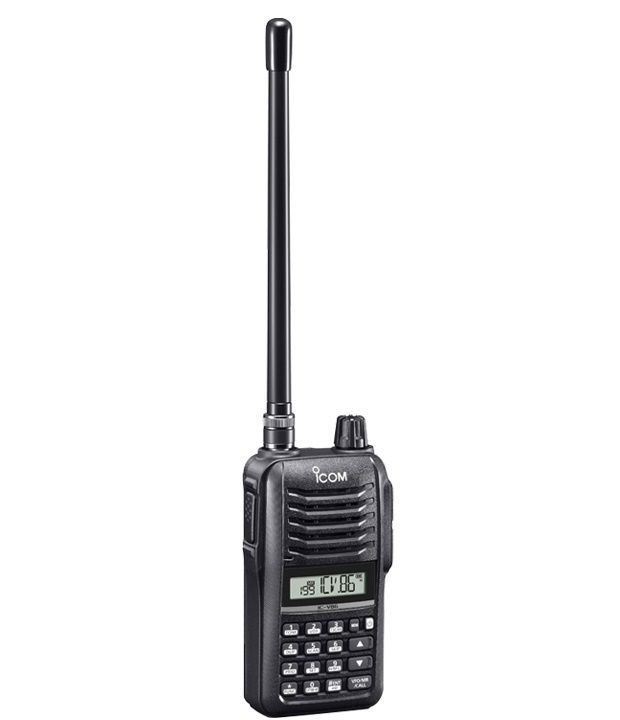

Máy bộ đàm ICOM IC-V86-VHF
- Dải tần số hoạt động: 136–174 MHz.
- Dung lượng kênh: 207 kênh (200 memory channels, 1 call channel and 6 scan edges).
- Công suất hoạt động: 7W.
- Công suất âm thanh: 1500mW.
- Tiêu chuẩn chống bụi và chống nước: IP57.
Thông số kỹ thuật
| General | |
| Frequency range (TX/RX guaranteed range) | 136–174 MHz (EX Hi power TX : 144–160 MHz) |
| Type of emissions | F2D, F3E (FM, FM-N) |
| Number of channels | 207 channels (200 memory channels, 1 call channel and 6 scan edges) |
| Antenna impedance | 50Ω |
| Power supply requirement | 7.5 VDC |
| Operating temperature range | -20 ˚C to +60 ˚C, -4 °F to +140 °F |
| Frequency stability | ±2.5 ppm (–20 ˚C to +60 ˚C, –4 °F to +140 °F) |
| Current drain | TX (EX Hi/Hi/Mid/Low): 1.6/1.4/1.0/0.5 A typical RX (Max. audio): 450 mA typ. (INT SP), 200 mA typ. (EXT SP) |
| Dimensions (W×H×D) (Projections not included) | 58.6 × 112 × 30.5 mm, 2.3 × 4.4 × 1.2 in (with BP-298) |
| Weight (Approximate) | 300 g, 10.6 oz (with BP-298, FA-B57V) |
| Transmitter | |
Output power (EX Hi/Hi/Mid/Low) | 7.0/5.5/2.5/0.5 W |
| Maximum frequency deviation | ±5.0 kHz/±2.5 kHz (Wide/Narrow) |
| Spurious emissions | Less than –60 dB |
| External microphone connector | 3-conductor 2.5 (d) mm (1/10')/2.2 kΩ |
| Receiver | |
| Sensitivity | -124 dBm typical |
| Squelch sensitivity | -126 dBm typical |
| Selectivity (Wide/Narrow) | 75 dB typical/70 dB typical |
| Intermodulation | 65 dB typical |
| Audio output power | Internal speaker: 1500 mW typical (with 8 Ω load) External speaker: 550 mW typical (with 8 Ω load) |
| External speaker connector | 3-conductor 3.5 (d) mm (1⁄8')/ 8 Ω |
| Ingress Protection Standard | |
| Dust and Water | IP54 (Dust-protection, water resistance) |
- Phụ kiên gồm:
+ Pin BP-298 Li-ion 2250mAh;
+ Bộ sạc BC-240;
+ Anten, bát cài.
- Máy sản xuất tại Nhật Bản.
- Bảo hành: 24 tháng cho thân máy, 12 tháng cho Pin và phụ kiện.
