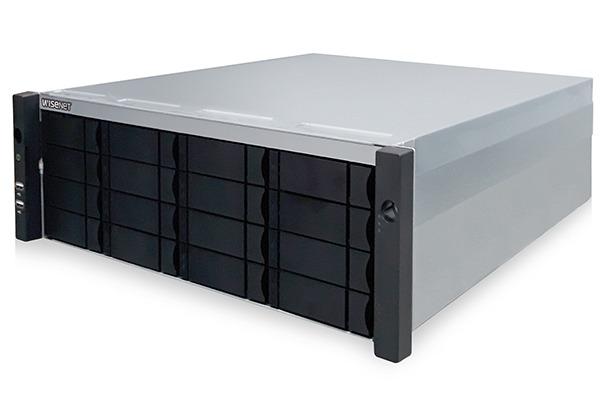

Máy chủ ghi hình SSM 128 kênh Hanwha Techwin WISENET PRP-5000H16
- Bộ xử lý Intel Xeon 3.6GHz.
- Windows 10 IoT Enterprise trên SSD M.2.
- SSM v2.10.0 được cài đặt sẵn.
- Hỗ trợ giám sát đồng thời và phát lại trực tiếp tất cả các kênh.
- Hỗ trợ RAID-0 / 1 / 5 / 6 và Hot-Swap.
- Chế độ xem qua: Lịch / sự kiện / Bookmark / tìm kiếm thông minh.
- Ghi hình theo dõi kép.
- Hỗ trợ chuyển đổi dự phòng chủ động.
- Hỗ trợ phân cụm máy chủ.
- SMPS kép và năng lượng dự phòng.
- Hỗ trợ cổng VGA, HDMI, DVI.
- Hỗ trợ 16 Bay.
Đặc tính kỹ thuật
| Model | PRP-5000H16 | |
| DISPLAY | ||
| Network Camera | Input | Max. 128CH |
| Resolution | CIF ~ 12MP | |
| Protocols | Wisenet, ONVIF | |
| Live | Local Display | VGA, DVI, HDMI |
| Multi-Channel Display | 1 / 4 / 9 / 16 / 25 / 36 / 49 / 64 / 72 / 100 / 121 / 132 / Custom / Auto mode | |
| Video Codec | H.264, H.265, MPEG-4, MJPEG | |
| PERFORMANCE / FUNCTIONS | ||
| Operating System | Windows 10 IoT Enterprise | |
| VMS | SSM preinstalled | |
| Record | Compression | H.265, H.264, MJPEG, WiseStream (H.264, H.265) |
| Recording Bandwidth | Max. 520Mbps | |
| Resolution | CIF ~ 12MP | |
| Recording Mode | Normal, Schedule (Continuous / Event), Event (Pre / Post), Event profile, ARB, Dual-track | |
| Event | Video loss, Camera event - Sensor, MD, Passing, Entering, Exiting, Appear / Disappear, Tampering, Tracking, Face detection, Audio detection | |
| Event Trigger | Instant viewer, Preset, Alarm Out, Pop-up, Sound and E-mail notification | |
| Search / Playback | Playback Bandwidth | Max. 150Mbps |
| Resolution | CIF ~ 12MP | |
| Decoding Performance | 1080fps@1080p, 36 Split view 2160fps@720p, 72 Split view 3840fps@640x360, 128 Split view | |
| Mode | Date & Time (Calendar) / Event / Smart search | |
| Simultaneous Playback | Max.128ch (3840fps/VGA) | |
| Fisheye Dewarping | Console | |
| Playback Control | Start / Stop, Pause, Fast / Slow Forward / Backward, Step Forward / Backward, Skip Forward / Backward | |
| Backup | File Format | AVI, SEC |
| Backup mode | Manual backup, Onetime schedule backup | |
| Audio | Compression | G.711 u-law (PCM), G723, G726 (ADPCM), AAC |
| Two-way Audio | Support | |
| Camera Setup | Registration | Auto / Manual |
| Setup Items | Automatic device IP scan, Profile edit, Resolution, Fisheye dewarping, Hallway view, Brightness / Contrast, Device setup page, Exporting / Importing devices settings, Device firmware update | |
| Date & Time Sync | NTP server | |
| PTZ | Via GUI, Controller (SPC-2000, SPC-7000) | |
| 300 | ||
| Failover / ARB | Support (Active&Active) / Support | |
| Server Clustering | Max. 16ea | |
| System Control | Mouse, Controller | |
| Log | System, Event, User, Device | |
| Hardware | Processor | Xeon E3-1275 v5 (8M Cache 3.6GHz |
| Memory | Unbuffered ECC DDR3 8GB x 2 | |
| OS Disk | M.2 SSD 128G | |
| Driver Type | SATA 6Gb / s | |
| HDD | 3.5 inch 16ea Hot Swap (Max 160TB) | |
| Network | Gigabit ethernet RJ-45 (1000 Base-T) x2, IPMI | |
| ELECTRICAL / ENVIRONMENT / MECHANICAL | ||
| Electrical | AC Input | 100 ~ 240 VAC, 50 ~ 60Hz |
| Power Supply | Redundant 500W x 2 | |
| Current (Max.) | 4A (100V), 2A (240V) | |
| Environmental | Operating Temperature / Humidity | +5°C to +40°C (+41℉ to +104℉) / Less than 80% |
| Mechanical | Color / Material | Black / Metal |
| Form Factor | 3U, 19 inch Rackmount | |
| Dimension | 447 x 131 x 503mm | |
| Weight | 17.6 kg | |
- Bảo hành: 24 tháng.
