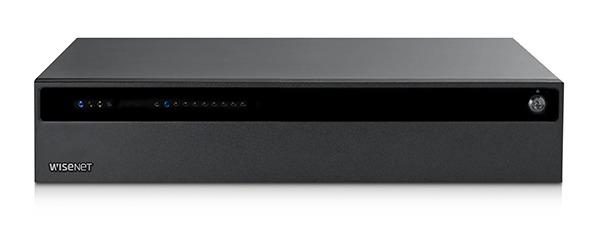

Máy chủ ghi hình SSM 72 kênh Hanwha Techwin WISENET PRP-4000H8
- Máy chủ ghi hình SSM 72 kênh.
- Bộ xử lý Intel Xeon 3.6GHz.
- Windows 10 IoT Enterprise trên SSD M.2.
- SSM v2.10.0 được cài đặt sẵn.
- Hỗ trợ giám sát đồng thời và phát lại trực tiếp tất cả các kênh.
- Chế độ xem lại: Theo lịch/ sự kiện/ bookmark/ tìm kiếm thông minh.
- Hỗ trợ RAID-0 / 1 / 5 / 6 và Hot-Swap.
- Ghi hình theo dõi kép, hỗ trợ chuyển đổi dự phòng chủ động.
- Hỗ trợ phân cụm máy chủ.
- Hỗ trợ cổng VGA, HDMI.
- Hỗ trợ 8 Bay.
Đặc tính kỹ thuật
| Model | PRP-4000H8 | ||
| DISPLAY | |||
| Network Camera | Input | Max. 72CH | |
| Resolution | CIF ~ 12MP | ||
| Protocols | Wisenet, ONVIF | ||
| Live | Local Display | VGA, HDMI, DP | |
| Multi-Channel Display | 1 / 4 / 9 / 16 / 25 / 36 / 49 / 64 / 72 / Custom / Auto mode | ||
| Video Codec | H.264, H.265, MPEG-4, MJPEG | ||
| PERFORMANCE / FUNCTIONS | |||
| Operating System | Windows 10 IoT Enterprise | ||
| VMS | SSM preinstalled | ||
| Record | Compression | H.265, H.264, MJPEG, WiseStream (H.264, H.265) | |
| Recording Bandwidth | Max. 400Mbps | ||
| Resolution | CIF ~ 12MP | ||
| Recording Mode | Normal, Schedule (Continuous / Event), Event (Pre / Post), Event profile, ARB, Dual-track | ||
| Event | Video loss, Camera event - Sensor, MD, Passing, Entering, Exiting, Appear / Disappear, Tampering, Tracking, Face detection, Audio detection | ||
| Event Trigger | Instant viewer, Preset, Alarm Out, Pop-up, Sound and E-mail notification | ||
| Search / Playback | Playback Bandwidth | Max. 150Mbps | |
| Resolution | CIF ~ 12MP | ||
| Decoding Performance | 1080fps@1080p, 36 Split view | ||
| 2160fps@720p, 72 Split view | |||
| Mode | Date & Time (Calendar) / Event / Smart search | ||
| Simultaneous Playback | Max.72ch (2160fps/720p) | ||
| Fisheye Dewarping | Console | ||
| Playback Control | Start / Stop, Pause, Fast / Slow Forward / Backward, Step Forward / Backward, | ||
| Skip Forward / Backward | |||
| Backup | File Format | AVI, SEC | |
| Backup mode | Manual backup, Onetime schedule backup | ||
| Audio | Compression | G.711 u-law (PCM), G723, G726 (ADPCM), AAC | |
| Two-way Audio | Support | ||
| Camera Setup | Registration | Auto / Manual | |
| Setup Items | Automatic device IP scan, Profile edit, Resolution, Fisheye dewarping, Hallway view, Brightness / Contrast, Device setup page, Exporting / Importing devices settings, Device firmware update | ||
| Date & Time Sync | NTP server | ||
| PTZ | Control Device | Via GUI, Controller (SPC-2000, SPC-7000) | |
| Preset | 300 | ||
| Failover / ARB | Support (Active&Active) / Support | ||
| Server Clustering | Max. 28ea | ||
| System Control | Mouse, Controller | ||
| Log | System, Event, User, Device | ||
| Hardware | Processor | Xeon E3-1275 v5 (8M Cache 3.6GHz | |
| Memory | Unbuffered ECC DDR3 8GB x 2 | ||
| OS Disk | M.2 SSD 64G | ||
| Driver Type | SATA 6Gb / s | ||
| HDD | 3.5 inch 16ea Hot Swap (Max 80TB) | ||
| Network | Gigabit ethernet RJ-45 (1000 Base-T) x2 | ||
| ELECTRICAL / ENVIRONMENT / MECHANICAL | |||
| Electrical | AC Input | 100 ~ 240 VAC, 50 ~ 60Hz | |
| Power Supply | 350W (single) | ||
| Current (Max.) | 4A (100V), 2A (240V) | ||
| Environmental | Operating Temperature / Humidity | +5°C to +40°C (+41℉ to +104℉) / Less than 80% | |
| Mechanical | Color / Material | Black / Metal | |
| Form Factor | 2U, 19 inch Rackmount | ||
| Dimension | 447 x 131 x 503mm | ||
| Weight | 7.38 kg | ||
- Bảo hành: 24 tháng.
