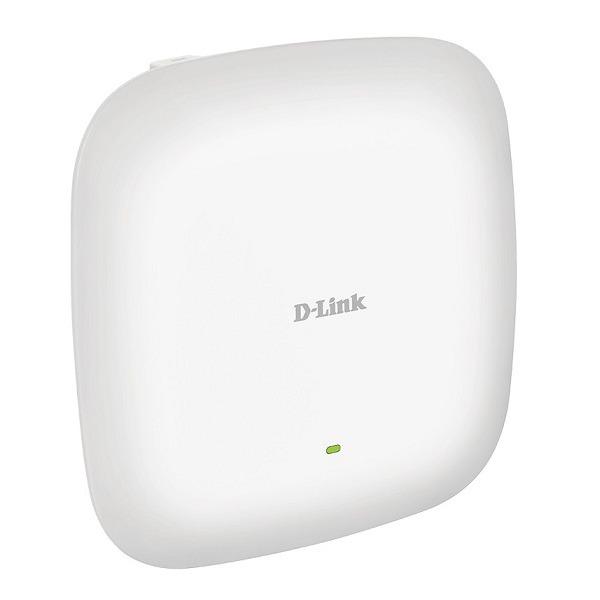

Nuclias Connect AC2200 Wave 2 Tri-Band PoE Access Point D-Link DAP-2720
- Easy to manage with D-Link’s free management software-based solution, Nuclias Connect
- Superior throughput with tri-band transfer speeds up to 400 Mbps in the 2.4 GHz band and 866 Mbps in the 5 GHz bands
- IEEE 802.11a/b/g/n/ac Wave 2 wireless
- 1 x Gigabit LAN port for high-capacity backhaul to the wired network
- Supports Power over Ethernet (802.3at) for simpler installation with less cable clutter
- Supports WPA2™ - Wi-Fi security for more protection
- Supports multiple VLANs for enhanced network management and up to 16 SSID setups
- Quality of Service (QoS) prioritizes time-sensitive traffic for a smoother Wi-Fi experience
- Supports multiple AP modes to ensure optimization based on your network’s needs
- PoE Injector and Power Adapter Not Included.
Specifications
| Model | DAP-2720 |
| General | |
| Device Interfaces | 1 x IEEE 802.11a/b/g/n/ac Wave 2 wireless 1 x 10/100/1000 Mbps Gigabit LAN (supports PoE) |
| Standards | IEEE 802.11a/b/g/n/ac IEEE 802.3/u/ab/x/az IEEE 802.3az Energy-Efficient Ethernet (EEE) IEEE 802.3at Power over Ethernet |
| Antennas | 6 x Internal Antennas |
| LEDs | Power/Status |
| Operating Frequency | 2.4 GHz band: 2.4 to 2.4835 GHz 5 GHz band: 5.15 to 5.35 GHz, 5.47 to 5.825 GHz |
| Maximum Output Power | 2.4 GHz band: 26 dBm 5 GHz band: 24 dBm |
| Data Signal Rate | 2.4 GHz band: Up to 400 Mbps 5 GHz band: Up to 866 Mbps per band |
| Functionality | |
| Network Management | D-Link Nuclias Connect Telnet Secure Telnet (SSH) Web (HTTP) Secure Socket Layer (SSL) Traffic control SNMP v1/v2c/v3 |
| Security | 128-bit personal wireless encryption 128-bit enterprise wireless encryption WEP 64/128-bit encryption SSID Broadcast Disable MAC Address Access Control Network Access Protection (NAP) Internal RADIUS Server |
| Physical | |
| Power Supply | External Power Adapter: 12V / 2.5A IEEE 802.3at PoE |
| Max. Power Consumption | Adapter Mode: 15.74 W PoE Mode: 16.08 W |
| MTBF | > 30,000 hours |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 65°C |
| Operating Humidity | 10% to 90% |
| Storage Humidity | 5% to 95% |
| Weight | 721.8 g |
| Dimensions | 212.4 x 212.4 x 47.7 mm |
- Bảo hành: 2 năm.
