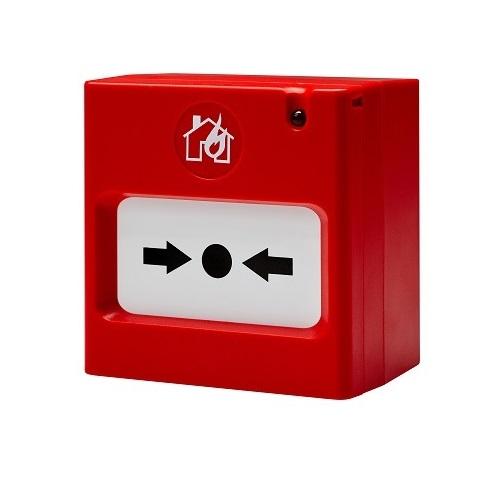

Nút nhấn khẩn địa chỉ tích hợp cách ly TELETEK SensoIRIS MCP150
- SensoIRIS MCP150, is a manual call point with built-in isolator module, designed for installation in addressable fire alarm systems supporting TTE communication protocol.
- The detector is powered on from the panel and can be controlled via the communication protocol.
- Type of the working element – Resettable (flexible).
- Type A.
- Built-in isolator.
- Optional protective plastic cover.
- Rate of protection IP40.
- EN54-11 and EN54-17 certified.
Đặc tính kỹ thuật
| Model | SensoIRIS MCP150 |
| Operating Voltage Range | 15 – 32VDC |
| Consumption without communication (max) | 125μA@27VDC |
| Consumption in Fire mode | 3mA |
| Wire Gauge for terminals | 0.4mm² – 2.0mm² |
| Operating temperature | -10°C to +60°C |
| Protection | IP40 |
| Weight | ~175g |
| Dimensions | 90x90x57mm |
- Bảo hành: 12 tháng.
