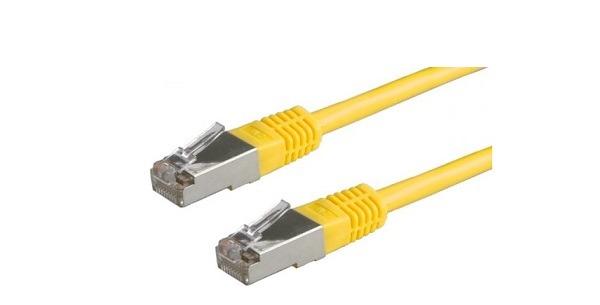

Patch cord Dintek CAT.5E FTP (3.0m)
- Patch Cord FTP Cat.5e, 3.0m, 2 đầu đúc RJ45 bọc kim loại.
- Color: Yellow.
Features
- Molded boots prevent pin from bending and cables from kinking
- 24AWG stranded wire provides maximum flexibility
- Brilliant colors make management a snap
- Fully tested to meet ANSI/TIA-568-C.2 category 6 requirement
- The various colors are available to meet TIA/EIA-606 standards
- The mechanical characteristics and transmission performance meet 16Mbps token Ring,10Base-T,100Base-T,155Mbps,622Mbps ATM,Gigabit-Ethernet and 1.2Gbps ATM requirements.
Physical Characteristics
- Conductor: 24AWG (7x0.195mm) stranded anneal copper wire
- Insulation material: HDPE
- Diameter of dielectric core: 1.0±0.05mm
- Insulation thickness: min at any point: 0.20mm
- RJ45 plug:Housing>polycarbonate
- Contact>copper alloy 50u” gold plated over nickel
- Strength>20lbs. min
- Durability>200 cycles min.
- Insulation resistance: 500 megaohms min. Molded boots prevent pin from bending and cables from kink.
- Wiring schemes: T568B
Applications
- Category 6 Products exceed all TIA and ISO specifications for Category 5e/6 cabling systems and components
- They have been Independently confirmed for system performance
- Meets FCC parts 68
- ANSI/TIA-568-C.2
- ISO/IEC 11801
- DINTEK Cat 6 products can be warranted for 25 years
- Cat6 products are Interoperable with DINTEK and other standards compliant products
- Independently been confirmed for Gigabit Ethernet applications
- Having a single vendor solution ensures best system performance
- Our products meet or exceed performance requirements for existing and proposed high-speed network applications including:
- Voice; T1; ISDN
- 10BASE-T (IEEE 802.3)
- 16Mbps Token Ring (IEEE802.5)
- 100VG-AnyLAN (IEEE802.12)
- 100BASE-T Ethernet (IEEE802.3)
- 155/622Mbps 1.2/2.4 Gbps ATM
- 1000Mbps Gigabit Ethernet
- 550MHz Broadband Video
Standards
- UL Verified
- ISO/IEC11801 2nd edition
- ANSI/TIA-568-C.2
- CENELEC EN 50173
- LSZH Flame test as per IEC 60332-1
- Sản xuất tại Taiwan.
