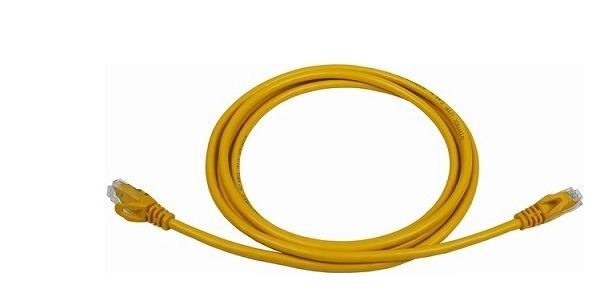

Patch cord Dintek CAT.5E UTP (10m)
- Patch Cord UTP Cat.5e, 10m, 2 đầu đúc RJ45.
- Color: Yellow, Blue, Gray.
Features
- 24AWG stranded wire provides maximum flexibility.
- Brilliant colors make management a snap.
- Fully tested to meet ANSI/TIA-568-C.2 category 5e requirement.
- The various colors are available to meet TIA/EIA-606 standards.
- The mechanical characteristics and transmission performance meet 16Mbps Token Ring, 10Base-T, 100Base-T, 155Mbps, 622Mbps ATM, Gigabit-Ethernet and 1.2Gbps ATM requirements.
Electrical Characteristics
- Contact material: Phosphor bronze alloy.
- Contact plating: 24 Karat hard gold (50 micro-inch plating thickness) over 100 micro-inch nickel.
Cable Data
- Conductor: 24AWG (7x0.2±0.01mm) stranded anneal copper wire.
- Insulation material: HDPE, FRPE.
- Diameter of dielectric core: 0.99±0.02mm.
- Insulation thickness: min AVG 0.19mm.
- Number of twist pairs: 4 pairs.
- Assembly: 4 pairs of dielectric core shall be stranded in circular form.
- Material of jacket: PVC/LSZH.
- Thickness of jacket: AVG 0.5mm.
- Nominal O.D.: 5.5±0.2mm.
- Flame rating: CM.
- Jacket color: red,orange,yellow,green,blue,grey, etc.
- RJ45 Plug: Housing>polycarbonate.
- Contact>copper alloy 50u” gold plated over nickel.
- Strength: 20lbs. min.
- Durability: 200 cycles min.
- Insulation resistance: 500 megaohms min.
- Molded boots prevent pin from bending and cables from kink.
- Wiring schemes: T568B.
Applications
- Voice.
- ISDN.
- 10Base T(IEEE 802.3).
- Fast Ethernet(IEEE802.3).
- 100Vg-AnyLAN(IEEE 802.12).
- Token Ring(IEEE 802.5).
- TP-PMD(ANSI X3T9.5).
- 100Base-T Ethernet(IEEE 802.3u).
- 155/622 Mbps ATM.
- 1000Base-T.
- 550MHz Broadband video.
Standards
- UL, ETL Verifi ed.
- ANSI/TIA-568-C.2.
- ISO/IEC 11801.
- EN 50173.
- Sản xuất tại Taiwan.
