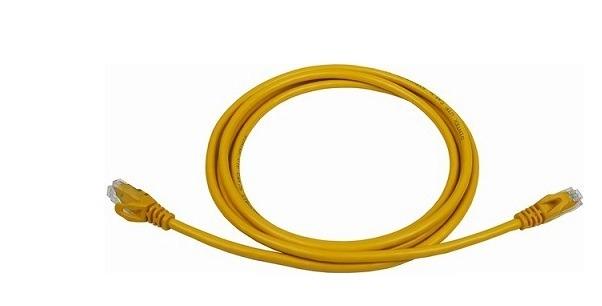

Patch cord Dintek CAT.5E UTP (1.8m)
- Patch Cord UTP Cat.5e, 1.8m, 2 đầu đúc RJ45, yellow.
Features
- 24AWG stranded wire provides maximum flexibility.
- Brilliant colors make management a snap
- Fully tested to meet ANSI/TIA-568-C.2 category 5e requirement.
- The various colors are available to meet TIA/EIA-606 standards.
- The mechanical characteristics and transmission performance meet 16Mbps Token Ring, 10Base-T, 100Base-T, 155Mbps, 622Mbps ATM, Gigabit-Ethernet and 1.2Gbps ATM requirements.
Electrical Characteristics
- Contact material: Phosphor bronze alloy
- Contact plating: 24 Karat hard gold (50 micro-inch plating thickness) over 100 micro-inch nickel.
Cable Data
- Conductor: 24AWG (7x0.2±0.01mm) stranded anneal copper wire
- Insulation material: HDPE,FRPE
- Diameter of dielectric core: 0.99±0.02mm
- Insulation thickness: min AVG 0.19mm
- Number of twist pairs: 4 pairs
- Assembly: 4 pairs of dielectric core shall be stranded in circular form.
- Material of jacket: PVC/LSZH
- Thickness of jacket: AVG 0.5mm
- Nominal O.D.: 5.5±0.2mm
- Flame rating: CM
- Jacket color: red,orange,yellow,green,blue,grey, etc.
- RJ45 Plug: Housing>polycarbonate
- Contact>copper alloy 50u” gold plated over nickel
- Strength: 20lbs. min
- Durability: 200 cycles min.
- Insulation resistance: 500 megaohms min.
- Molded boots prevent pin from bending and cables from kink.
- Wiring schemes: T568B
Applications
- Voice
- ISDN
- 10Base T(IEEE 802.3)
- Fast Ethernet(IEEE802.3)
- 100Vg-AnyLAN(IEEE 802.12)
- Token Ring(IEEE 802.5)
- TP-PMD(ANSI X3T9.5)
- 100Base-T Ethernet(IEEE 802.3u)
- 155/622 Mbps ATM
- 1000Base-T
- 550MHz Broadband video
Standards
- UL, ETL Verifi ed
- ANSI/TIA-568-C.2
- ISO/IEC 11801
- EN 50173
- Sản xuất tại Taiwan.
