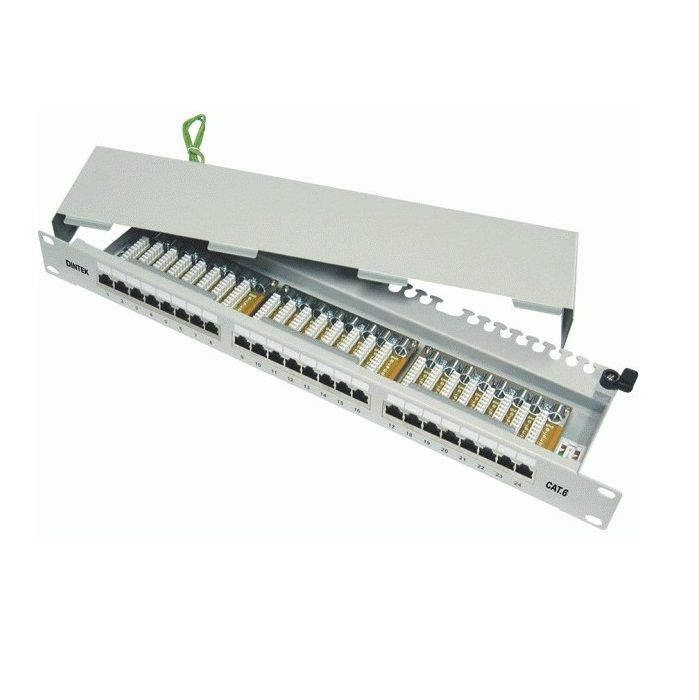

Patch panel 24-port Dinktek CAT.6 19 inch, Fully Shielded (1402-04033)
-Product Code: 1402-04033
-Patch panel 24-port Dintek, CAT.6 19 inch Fully Shielded, 24 Ports, 1U.
-Cat.6 19 inch 110/Krone type fully shielded patch panel 24 ports, 1U size Component level.
Features
-High performance, exceeds ANSI/TIA-568-C.2 Category 6 Hardware transmission performance.
-100% shielded for complete EMI/RFI protection.
-19 inch 24port patch panel, 1U size.
-110 and Krone dual type IDC termination.
-Accepts 22-26AWG, Stranded or solid wire.
-Wiring: T568A/B.
Electrical
-Insulation resistance: 500 Mega ohms min.
-Dielectric with standing voltage: 1,000 Volts, RMS, 60Hz, 1min.
-Contact resistance: 20 milli ohms max.
-Current rating: 1.5 AMPS at 20°C.
Physical
-Housing: High-impact, fl ame-retardant plastic, UL94V-0 rated.
-Material: Phosphor Bronze Alloy.
Plating: 50u” gold plated over 100u” nickel.
Sheel: Brass alloy plated with 100u” nickel.
Plate: SPCC-SD 16G.
Mechanical
-Total mating force: 800 grams for a 8 wire leads min.
-Retention: 30 lbs min between the jack and plug.
-Insertion/Extraction life: 750 cycles min.
-Number of IDC terminations: 200 cycles min.
Applications
-Voice; T1; ISDN
-10BASE-T (IEEE 802.3)
-16Mbps Token Ring (IEEE802.5)
-100VG-AnyLAN (IEEE802.12)
-100BASE-T Ethernet (IEEE802.3)
-155/622Mbps 1.2/2.4 Gbps ATM
-1000Mbps Gigabit Ethernet
-550MHz Broadband Video
Standards
-UL Verified
-ISO/IEC11801 2nd edition
-ANSI/TIA Standard 568-C.2
-CENELEC EN 50173
-Sản xuất tại Taiwan.
