Patch panel 24-port CAT5e UTP Alantek

Part Number: 302-201001-2400

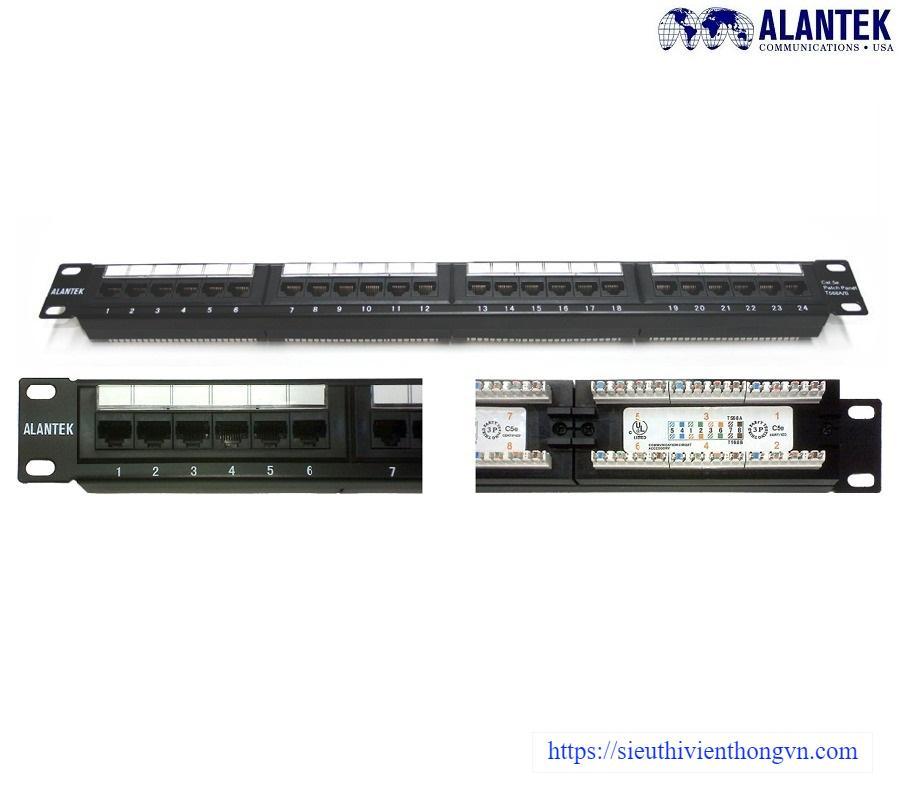

- Alantek Cat5E Unshielded Patch Panel is a rack mountable RJ45 jack panel. The 1U type has 24 RJ45 ports and the 2U type has 48 RJ45 ports. The Dual IDC connection on the rear of the panel support two type of termination. The front of the panel has transparent plastic holders for the port identification labels.

- Shielded Cat 5E Dual IDC patch panel is available for environment that has high Electromagnetic Interference. The Shielded Cat 5E panel only comes in 24-port with Silk screen labels at the front.

- Suitable application up to 1 Gigabit Ethernet.

Specifications

- Number of ports: 24.

- Current Rating: 1.5 amp (max.)

- Voltage Rating: 150 V.

- Contact Resistance: 20 m-Ω.

- Insulation Resistance: 500 m-Ω.

- Dielectric Withstand Voltage: 1000 VAC @RMS, 60 Hz 1 min

- IDC Termination: Dual (110 & Krone).

- Housing: PC UL94V-0.

- IDC: PC UL94V-0, accept 22-26 AWG Solid Wire.

- PCB: FR4 1.6mm (0.4”) thickness, 2 layers.

- Contact: PC UL94V-0, 0.45mm (0.018”).

- Standards: TIA/EIA 568B, ISO/IEC 11801.

- Sản xuất tại Trung Quốc.
