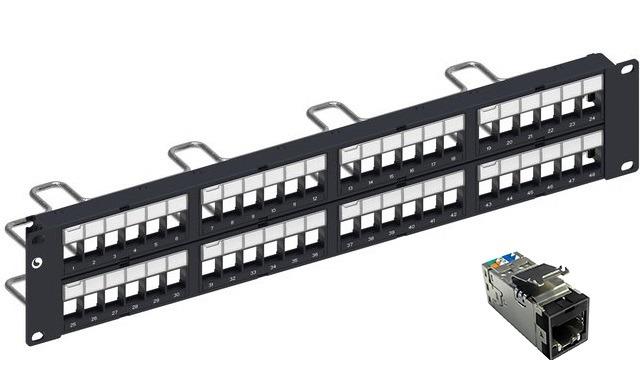

Patch panel 48 port COMMSCOPE CAT6A STP
Part Number: 760237047/ 2153449-2
*) Patch panel 48 port CAT6A STP (760237047)
- Product Type: RJ45 patch panel
- ANSI/TIA Category: 6/6A
- Cable Type: Shielded
- Color: Black
- Modules: 0
- Panel Style: Straight
- Rack Type: EIA 19 inch
- Rack Units: 2
- Total Ports: 48
- Material Type: High-impact, flame retardant, thermoplastic | Powder-coated steel
- Dimensions (HxWxD): 88.9 x 482.6 x 119.38 mm
- Operating Temperature: -10°C to +60°C
- Storage Temperature: -40°C to +70°C
*) Modular Jack CAT6A S/FTP (2153449-2)
- ANSI/TIA Category: 6A
- Cable Type: Shielded
- Color: Black
- Conductor Type: Solid/ Stranded
- Integrated Dust Cover Type: None
- Mounting: SL Series faceplates and panels
- Mounting Note: Color matches with SL-style Black Faceplates and Surface Mount Boxes
- Outlet Type: Standard
- Termination Punchdowns, minimum: 5 times
- Termination Tool: SL Termination tool
- Termination Type: IDC
- Transmission Standards: ANSI/TIA-568-C.2 | ISO/IEC 11801 Class EA
- Wiring: T568A/ T568B
- Contact Plating Thickness: 1.27 µm
- Compatible Conductor Gauge, solid: 26~22 AWG
- Compatible Conductor Gauge, stranded: 26~24 AWG
- Packaging quantity: 24
