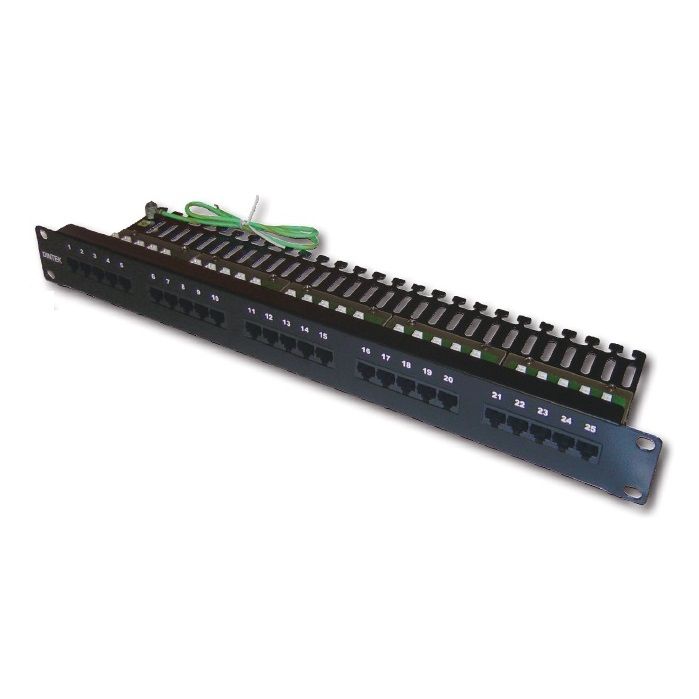

Patch panel for Telephone 25 port Dintek 19 inch (1402-01001)
- Product code: 1402-01001
- 19” Cat.3 Patch Panel, 25 port, 1U size.
- Used in voice and low speed data applications.
- With grounding wire.
VoicePRO 19” Cat.3 Patch Panel, 25 port, 1U size
DINTEK VoicePROTM 25 port Voice Patch Panels are designed to provide a cost effective and simple way to feed PBX or other simple voice circuits into a structured cabling system. Unlike standard 1U structured cabling patch panels which typically have a maximum capacity of 24 ports the VoicePROTM Patch panel provides 25 voice ports in a compact 1U high format.
Each port is clearly identified front and rear and is capable of carrying up to three voice pairs. Functional earth facilities where required e.g. Earth Loop Recall, can be simply catered for by commoning any single pair across the panel. Each panel is supplied with a fixing and earthing kit. Individual ports are numbered for identification.
Features
- Designed to integrate voice circuits into structured cabling systems
- 2 pair 258A voice wiring configuration
- Phosphor bronze with 50 micro inches gold plated
- 25 telephone ports can be fitted into a 1U rack space
- Modern design and mounting simplicity
- Numeral marking of ports on the front side of the panel
- No more hookup wire required, just standard patch cables.
Standards Conformance
- ISO/IEC11801 2nd edition
- ANSI/TIA Standard 568-2.D
- CENELEC EN 50173
- UL 1863 safety listed
- Sản xuất tại Taiwan.
