| Loop Type | Closed loop |
| Electrical Configuration | N/O |
| Operation Gap | 3/4″ (19mm) |
| Terminals | Screw-type |
| Color | White |
| Mounting Tabs | Yes |
| Material – Case | High-impact ABS plastic |
| Contacts | Deactivated rhodium on gold under-plating |
| Contact Rating | 1.0A@10VDC (max), 10W (max) |
| Operating Temperature | -15º~+160º F (-25º~70º C) |
| Switch Cycles | 50 Million (0.1mA@5VDC) |
| Switch Dimensions | 2-1/2″ x 9/16″ x 1/2″ (63.5 x 14 x 13 mm) |
| Magnet Dimensions | 2-1/2″ x 1/2″ x 1/2″ (63.5 x 13 x 13 mm) |
| Magnet Type | Ferrite |

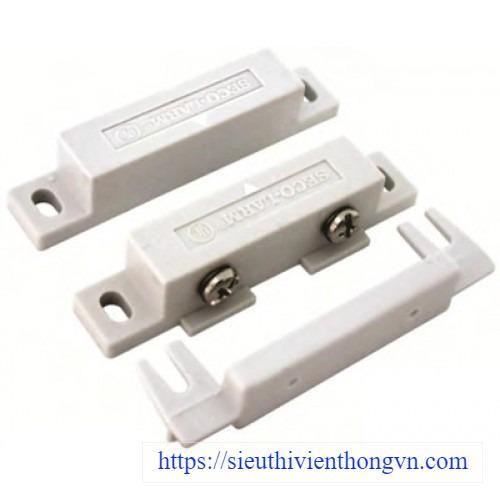

Công tắc từ có dây SM-200Q/W
- MS 000004007
- SECO-LARM
Giá : 75,000 vnđ (Đã bao gồm VAT) Giảm giá
50 % 150,000
vnđ
With mounting tabs, screw mount using side tabs
Terminal cover provided (required for all applications)
ABS plastic case has lip to prevent wires from accidentally touching metal mountings and slotted mounting holes for easier gap adjustment
Contact reed switch is SPST, deactivated rhodium on gold under-plating, for a long life
3/4″ (19mm) Gap
Mounting screws included
Lifetime limited warranty
White case
