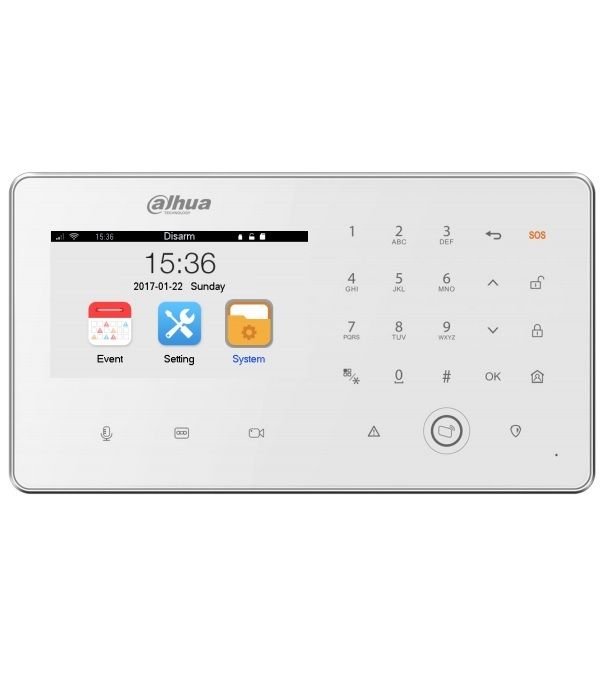

Thiết bị báo động trung tâm DAHUA ARC5402A-GW
-Hỗ trợ 02 cổng kết nối cảm biến có dây, 01 cổng ngõ ra báo động.
-Hỗ trợ kết nối 32 cảm biến không dây, giao tiếp hai chiều, khoảng cách lên đến 150 mét (không gian mở).
-Hỗ trợ kết nối 08 điều khiển không dây (ARA22-W)
-Hỗ trợ 04 còi báo không dây, 01 còi báo có dây
-Hỗ trợ liên kết 04 kênh camera IP, độ phân giải D1.
-Hỗ trợ điều chuyển chế độ báo động thông qua thẻ ID
-Lưu tin nhắn thoại độ dài 30 giây. Gửi tin nhắn SMS thông qua SIM điện thoại.
-Hỗ trợ thẻ nhớ 128GB, lưu video giám sát.
-Màn hình 4.3 inch, độ phân giải (480 x 272).
-Có pin Li-ion dự phòng: 3.7V/1900mAh.
-Nguồn điện cung cấp: 12VDC /2A.
-Kích thước: 216 x 118 x 28mm.
-Trọng lượng: < 1kg.
Đặc tính kỹ thuật
| System | |
| Main Processor | High-performance industrial embedded microcontroller |
| Operating System | Embedded LINUX |
| Power Management System | Main power and backup battery automatic transfer, main power failure alarm, battery power indicator, low battery alarm |
| In and Out | |
| Wired Zones | 2 on-board zones |
| Wireless Zones | 32 wireless zones, bi-directional communication, transmission range up to 150m open space |
| Alarm Output | 1-ch relay output |
| Tamper Funtion | 1 tamper switch |
| Remote Control | 8 wireless remote controls |
| Siren | 4 wireless sirens + 1 wired siren |
| Storage | Max 128GB micro SD card for video recording, USB device to backup video |
| ID Card | RFID reader (arm/disarm) |
| Network | |
| Network Function | TCP/IP, DHCP, WIFI, P2P, GSM (-G only), IP Search (Support Dahua IP camera), DMSS |
| Interface | |
| Network Interface | 1 RJ-45 Port(10/100Mbps) |
| RS485 | 1 Port |
| PSTN | 2 groups PSTN, support Contact ID standard protocol alarm |
| Wired Siren | 1 wired siren(12V/0.5A) |
| Auxiliary Power Output | 1 auxiliary power output (12V/0.5A) |
| Reset | Insert two ends of cable into the holes to reset |
| USB | 1 USB 2.0 port to record or upgrade |
| Audio and Video | |
| IP Camera Channel | 4 Channel |
| Compression | H.264 |
| Resolution | D1 |
| LCD Screen | 4.3 inch TFT screen, 480 x 272 resolution |
| Audio In | 1 ch audio in for 30s voice message |
| Audio Out | 1 ch audio out for voice and alarm broadcast |
| Upgrade | |
| Remote Upgrade | USB disk or ConfigTool to remotely upgrade |
| General Parameters | |
| Main Power | 12VDC/2A |
| Backup Battery | 3.7V/1900mAh, Li-ion |
| Power Consumption | ≤5W |
| Operating Temperature | -10℃ ~ +55℃ |
| Humidity | 10% ~ 90% |
| Dimensions | 216 x 118 x 28mm |
| Weight | <1kg |
-Sản xuất tại Trung Quốc.
-Bảo hành: 24 tháng.
