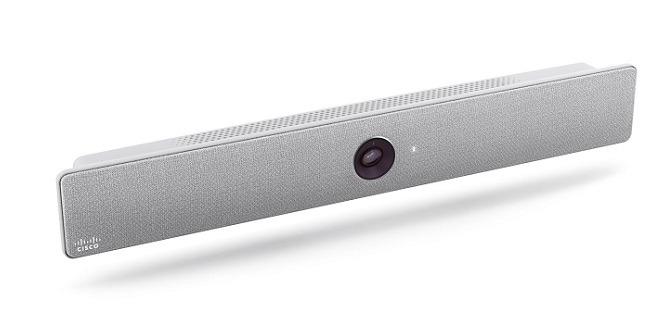

Thiết bị hội nghị truyền hình CISCO Room Kit CS-KIT-K9
- Thiết bị hội nghị truyền hình CS-KIT-K9 thuộc dòng thông minh sử dụng cho các loại phòng họp từ trung bình - lớn.
- Một bộ thiết bị tiêu chuẩn bao gồm: camera, micro, speaker, bộ giải mã sử dụng công nghệ thông minh tự động điều chỉnh khung hình, đếm số người họp.
- Thiết bị phần cứng chuyên dụng chuẩn quốc tế ITU-T, giao thức: SIP/ H323.
- Chuẩn nén hình ảnh: H264/H265, full HD 1080p.
- Hỗ trợ 2 luồng Video input/output chuẩn HDMI.
- Tích hợp camera 5K Ultra HD.
- Góc mở camera: 83 độ.
- Zoom 3X tự động bắt hình.
- Hỗ trợ mở rộng 2 micro đa hướng, hệ thống âm thanh ngoài.
- Chia sẻ dữ liệu không dây.
- Hỗ trợ nâng cấp MCU 4 điểm.
- Bộ thiết bị tiêu chuẩn kèm theo: Bảng điều khiển cảm ứng 10 inch, nguồn, giá treo, cáp và phụ kiện đi kèm.
- Sử dụng cho phòng họp trung bình : 10-20 người.
Đặc tính kỹ thuật
| Model | CS-KIT-K9 |
| Software compatibility | Cisco Collaboration Endpoint Software Version 9.0 or later, and Cisco Spark Room OS |
| Optional hardware components | Cisco Table Microphone 20 Microphone extension cable HDMI second monitor cable 1.5 m/4.9 ft. HDMI presentation cable 8 m/26.2 ft. |
| Bandwidth | Up to 6 Mbps point-to-point |
| Minimum bandwidth for resolution/frame rate | H.264: 720p30 from 768 kbps, 720p60 from 1152 kbps, 1080p30 from 1472 kbps, 1080p60 from 2560 kbps |
| Firewall traversal | Cisco Expressway™ technology H.460.18, H.460.19 firewall traversal |
| Video standards | H.264, H.265 |
| Video inputs | One HDMI input supports formats up to maximum 4K (3840 x 2160) at 30 fps including HD1080p60 Consumer Electronics Control (CEC) 2.0 |
| Video outputs | Two HDMI outputs support formats up to 3840 x 2160p60 (4Kp60) Live video resolutions (encode and decode) up to 1920 x 1080p30 and p60 (HD1080p) Consumer Electronics Control (CEC) 2.0 |
| Audio standards | G.711, G.722, G.722.1, G.729, AAC-LD, and Opus |
| Audio features | High-quality 20 kHz audio Prepared for subwoofer (line out) Prepared for inductive loop (line out) Automatic Gain Control (AGC) Automatic noise reduction Active lip synchronization |
| Audio inputs | Two microphones, 4-pin mini-jack One audio in from HDMI Internal microphone |
| Audio outputs (external) | 1 line out mini-jack (stereo) |
| Speakers (integrated) | High-quality speakers: five speakers in balanced configuration Frequency response 70 Hz to 20 kHz Amplifier power: 24W Max output level SPL 86 dB |
| Speaker tracking | 6-element microphone array for accurate speaker tracking |
| Dual stream | H.239 (H.323) dual stream Binary Floor Control Protocol (BFCP) (SIP) dual stream Supports resolutions up to 3840 x 2160p5 |
| Wireless sharing | Cisco Spark client (up to 3840 x 2160p5) Cisco Intelligent Proximity client (up to 1920 x 1080p5) |
| Multipoint support | 4-way embedded SIP/H.323 conferencing capability with MultiSite option |
| MultiSite features (embedded multipoint) (optional upgrade) | Adaptive SIP/H.323 MultiSite: 3-way resolution up to 1080p30 + content up to 4Kp5 4-way resolution up to 720p30 + content up to 4Kp5 Full individual audio and video transcoding H.323/SIP/VoIP in the same conference Support for presentation (H.239/BFCP) from any participant at resolutions up to 3840 x 2160p5 Best Impression (automatic continuous presence layouts) Encryption and dual stream from any site |
| Protocols | H.323, SIP, Cisco Spark |
| Embedded encryption | H.323 and SIP point-to-point Standards-based: H.235 v3 and Advanced Encryption Standard (AES) Automatic key generation and exchange |
| IP network features | DNS lookup for service configuration Differentiated services (quality of service [QoS]) IP-adaptive bandwidth management (including flow control) Automatic gatekeeper discovery Dynamic playout and lip-sync buffering H.245 dual-tone multifrequency (DTMF) tones in H.323 RFC 4733 DTMF tones in SIP Date and time support using Network Time Protocol (NTP) Media adaptation and resilience Uniform resource identifier (URI) dialing Dynamic Host Configuration Protocol (DHCP) 802.1X network authentication 802.1Q Virtual LAN 802.1p (QoS and class of service [CoS]) |
| Cisco Unified Communications Manager | Native registration with Cisco Unified Communications Manager Requires Cisco Unified Communications Manager Version 9.1.2 or later with device pack for Room Kit |
| IPv6 network support | Single call stack support for both H.323 and SIP Dual-stack IPv4 and IPv6 for DHCP, SSH, HTTP, HTTPS, DNS, DiffServ Support for both static and automatic IP configuration (stateless address auto configuration) |
| Security features | Management using HTTPS and SSH IP administration password Menu administration password Disable IP services Network settings protection |
| Network interfaces | One Ethernet (RJ-45) 10/100/1000 for LAN One Ethernet (RJ-45) for Cisco Touch 10 direct pairing Wi-Fi 802.11a/b/g/n/ac 2.4 GHz/5 GHz, 2x2 MIMO Bluetooth 4.0 LE |
| Other interfaces | USB 2.0 port,mUSB, factory reset pinhole |
| Power | 100 to 240 VAC, 50/60 Hz, 12V DC input Average 20W, peak 70W |
| Operating temperature and humidity | 0°C to 40°C (32°F to 104°F) ambient temperature 10% to 90% relative humidity (RH) |
| Storage and transport temperature | -20°C to 60°C (-4°F to 140°F) at RH 10% to 90% (noncondensing) |
| Locking mechanism | Kensington security lock |
| Dimensions | Width: 27.5 in. (70.0 cm) Height: 3.5 in. (10.6 cm) Depth: 2.9 in. (8.8 cm) Weight: 7 lb. (3.2 kg) |
| Camera Overview | 5K UltraHD camera Supports up to 60 fps (max 30 fps with speaker tracking and best overview enabled) 15.1 MP image sensor (5184 x 2916 pixels) 1/1.7 CMOS 3x zoom f/2.0 aperture 83° horizontal field of view; 51.5° vertical field of view Auto framing (audio + face detect) Auto focus, brightness, and white balance Focus distance 1 m to infinity |
- Bảo hành: 12 tháng.
