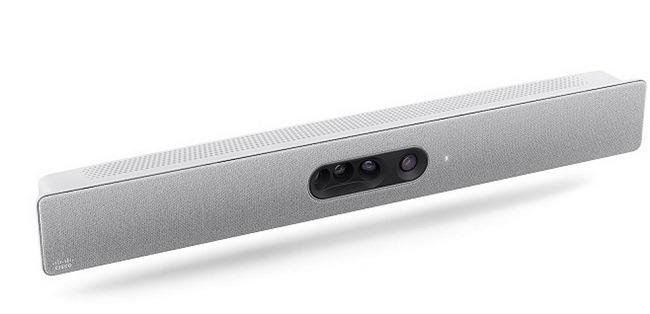

Thiết bị hội nghị truyền hình CISCO Room Kit Plus CS-KITPLUS-K9
- Thiết bị hội nghị truyền hình CS-KITPLUS-K9 thuộc dòng thông minh sử dụng cho các loại phòng họp từ trung bình - lớn.
- Một bộ thiết bị tiêu chuẩn bao gồm: camera, micro, speaker, bộ giải mã sử dụng công nghệ thông minh tự động bắt hình người họp (auto tracking voice, video).
- Thiết bị phần cứng chuyên dụng chuẩn quốc tế ITU-T, giao thức: SIP/ H323.
- Chuẩn nén hình ảnh: H264/H265, full HD 1080p.
- Hỗ trợ 2 luồng Video input/output chuẩn HDMI.
- Tích hợp 4 camera 5K Ultra HD.
- Góc mở camera: 83 độ.
- Zoom 5X tự động bắt hình.
- Hỗ trợ mở rộng 3 micro đa hướng, hệ thống âm thanh ngoài.
- Chia sẻ dữ liệu không dây.
- Hỗ trợ nâng cấp MCU 4 điểm.
- Bộ thiết bị tiêu chuẩn kèm theo: Bảng điều khiển cảm ứng 10 inch, nguồn, giá treo, cáp và phụ kiện đi kèm.
- Sử dụng cho phòng họp trung bình: 10-30 người.
Đặc tính kỹ thuật
| Model | CS-KITPLUS-K9 |
| Software compatibility | Cisco Collaboration Endpoint Software Version 9.0 or later, or Cisco Spark Room OS |
| Default components in Cisco Spark Room Kit Plus | Cisco Spark Codec Plus |
| Cisco Spark Quad Camera | |
| Cisco TelePresence Touch 10 | |
| Wall mount for Quad Camera | |
| Optional hardware components | Table Microphone 20, Wall mount for Codec Plus, cables |
| Bandwidth | Up to 6 Mbps point-to-point |
| Minimum bandwidth for resolution/frame rate | H.264: 720p30 from 768 kbps, 720p60 from 1152 kbps, 1080p30 from 1472 kbps, 1080p60 from 2560 kbps |
| Firewall traversal | Cisco Expressway™ technology |
| H.460.18, H.460.19 firewall traversal | |
| Video standards | H.264, H.265 |
| Video inputs | One HDMI input supports formats up to maximum 1080p60 |
| Two HDMI inputs support formats up to maximum 4K (3840 x 2160) at 30 fps including HD1080p60 | |
| Consumer Electronics Control (CEC) 2.0 | |
| Video outputs | Two HDMI outputs support formats up to 3840 x 2160p60 (4Kp60) |
| Live video resolutions (encode and decode) up to 1920 x 1080p60 (HD1080p) | |
| Consumer Electronics Control (CEC) 2.0 | |
| Audio standards | G.711, G.722, G.722.1, G.729, AAC-LD, and Opus |
| Audio features | High-quality 20 kHz audio |
| Subwoofer line out for Quad Camera | |
| Prepared for inductive loop (line out) | |
| Automatic Gain Control (AGC) | |
| Automatic noise reduction | |
| Active lip synchronization | |
| Audio inputs | Three microphones, 4-pin mini-jack |
| Two audio in from HDMI | |
| Audio outputs (external) | 1 line out mini-jack (stereo) (Codec Plus) |
| 1 RCA output for subwoofer (Quad Camera) | |
| 2 HDMI outputs | |
| HDMI input #1 supports Audio Return Channel (ARC): Audio output to Quad Camera speakers | |
| Speakers (internal) | High-quality speakers |
| Frequency response: 70 Hz to 20 kHz | |
| Max output level SPL 90dB | |
| Speaker tracking | 6-element microphone array for accurate speaker tracking |
| Dual stream | H.239 (H.323) dual stream |
| Binary Floor Control Protocol (BFCP) (SIP) dual stream | |
| Support resolutions up to 3840 x 2160p5 (4Kp5) and 1080p30 | |
| Wireless sharing | Cisco Spark client (up to 3840 x 2160p5) |
| Cisco Intelligent Proximity client (up to 1920 x 1080p5) | |
| Multipoint support | 4-way embedded SIP/H.323 conferencing capability with MultiSite option |
| MultiSite features (embedded multipoint) (optional upgrade) | Adaptive SIP/H.323 MultiSite |
| 3-way resolution up to 1080p30 + content up to 4Kp5 | |
| 4-way resolution up to 720p30 + content up to 4Kp5 | |
| Full individual audio and video transcoding | |
| H.323/SIP/VoIP in the same conference | |
| Support for presentation (H.239/BFCP) from any participant at resolutions up to 3840 x 2160p5 | |
| Best Impression (automatic continuous presence layouts) | |
| Encryption and dual stream from any site | |
| Protocols | H.323 |
| SIP | |
| Cisco Spark | |
| Embedded encryption | H.323 and SIP point-to-point |
| Standards-based: H.235 v3 and Advanced Encryption Standard (AES) | |
| Automatic key generation and exchange | |
| IP network features | DNS lookup for service configuration |
| Differentiated services (Quality of Service [QoS]) | |
| IP-adaptive bandwidth management (including flow control) | |
| Automatic gatekeeper discovery | |
| Dynamic playout and lip-sync buffering | |
| H.245 Dual-Tone Multifrequency (DTMF) tones in H.323 | |
| RFC 4733 DTMF tones in SIP | |
| Date and time support using Network Time Protocol (NTP) | |
| Media adaption and resilience | |
| Uniform Resource Identifier (URI) dialing | |
| Dynamic Host Configuration Protocol (DHCP) | |
| 802.1X network authentication | |
| 802.1Q Virtual LAN | |
| 802.1p (QoS and Class of Service [CoS]) | |
| Cisco Unified Communications Manager | Native registration with Cisco Unified Communications Manager |
| Requires Cisco Unified Communications Manager Version 9.1.2 or later with device pack for Room Kit | |
| IPv6 network support | Single call stack support for both H.323 and SIP |
| Dual-stack IPv4 and IPv6 for DHCP, SSH, HTTP, HTTPS, DNS, DiffServ | |
| Support for both static and automatic IP configuration (stateless address auto configuration) | |
| Security features | Management using HTTPS and SSH |
| IP administration password | |
| Menu administration password | |
| Disable IP services | |
| Network settings protection | |
| Network interfaces codec medium | One Ethernet (RJ-45) 10/100/1000 for LAN |
| One Ethernet (RJ-45) 10/100/1000 for direct pairing with camera | |
| One Ethernet (RJ-45) 10/100/1000 with Power over Ethernet (PoE) for direct pairing with Touch 10 | |
| Wi-Fi 802.11a/b/g/n/ac 2.4 GHz/5 GHz for LAN. 2x2 MIMO | |
| Bluetooth 4.0 LE | |
| Other interfaces | USB 2.0 port, uUSB, factory reset pinhole |
| Power supplies | 100 to 240 VAC, 50/60 Hz, 12V DC input |
| Average 20 W, peak 70W | |
| Locking mechanism | Kensington security lock |
| Camera overview | 5K Ultra HD camera |
| Support up to 60 fps | |
| 15.1 MP image sensor | |
| 1/1.7 CMOS | |
| 5x digital zoom (3 tele-lenses each with 50° horizontal field of view) | |
| f/2.0 aperture | |
| 83° horizontal field of view; 51.5° vertical field of view | |
| Auto-framing (audio + face detect) | |
| 5120 x 2880 pixel resolution | |
| Auto focus, brightness, and white balance | |
| Focus distance 1 m to infinity |
- Bảo hành: 12 tháng.
