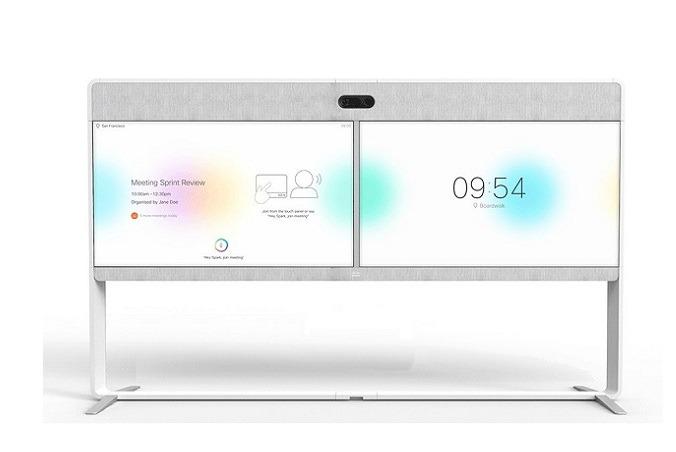

Thiết bị hội nghị truyền hình CISCO Webex Room 70S CS-ROOM70D-K9
- Bộ thiết bị tích hợp camera, micro, speaker, bộ giải mã, 2 màn hình hiển thị.
- Màn hình hiển thị: 70 inch 4K.
- Thiết bị phần cứng chuyên dụng chuẩn quốc tế ITU-T.
- Chuẩn Video H264/H265, full HD 1080p.
- Tích hợp 4 Camera 5K Ultra HD, góc mở 83 độ, Zoom 5X tự động bắt hình.
- Sử dụng công nghệ thông minh tự động điều chỉnh khung hình.
- Chức năng đếm số người họp.
- Hỗ trợ 2 luồng Video input/output chuẩn HDMI.
- Hỗ trợ chia sẻ dữ liệu không dây.
- Hỗ trợ mở rộng 3 micro đa hướng, hệ thống âm thanh ngoài.
- Hỗ trợ nâng cấp MCU 4 điểm.
- Bộ thiết bị tiêu chuẩn kèm theo: Bảng điều khiển cảm ứng 10 inch, 2 micro đa hướng, nguồn, cáp và phụ kiện đi kèm.
- Thích hợp sử dụng cho phòng họp trung bình: 10-30 người.
Đặc tính kỹ thuật
| Model | CS-ROOM70D-K9 |
| Software compatibility | Cisco Collaboration Endpoint Software Version 9.2 or later, or Cisco Webex Room OS |
| Default components in Cisco Webex Room 70 | Cisco Webex Codec Plus for Room 70, Cisco Webex Quad camera, Loudspeakers, Cisco Touch 10 control unit Mounting option – Floor stand or wall mount 2x Table Microphone 20 2x Presentation cable (HDMI – HDMI), LAN cable and Power cable |
| Displays | 2x 70-inch TFT-LCD monitor, edge-lit LED Resolution: 3840 x 2160 (16:9) Contrast ratio: Typical 4000:1 Viewing angle: +/- 88 deg (typical), +/- 70 deg (minimum) Response time: Typical 6 ms Brightness: 230 cd/m2 @ 7,200K (default), 260 cd/m2 @ 10,000K |
| Optional hardware components | Additional Table Microphone 20, Ceiling Mic |
| Bandwidth | Up to 6 Mbps point-to-point |
| Minimum bandwidth for resolution/frame rate | H.264 720p30 from 768 kbps 720p60 from 1152 kbps 1080p30 from 1472 kbps 1080p60 from 2560 kbps |
| Firewall traversal | Cisco Expressway™ technology H.460.18, H.460.19 firewall traversal |
| Video standards | H.264, H.265 |
| Video inputs | One HDMI input supports formats up to maximum 1080p60 Two HDMI inputs support formats up to maximum 4K (3840 x 2160) at 30 fps including HD1080p60 Consumer Electronics Control (CEC) 2.0 |
| Video outputs | Two HDMI outputs support formats up to 3840 x 2160p60 (4Kp60) (In use) Live video resolutions (encode and decode) up to 1920 x 1080p60 (HD1080p) Consumer Electronics Control (CEC) 2.0 |
| Audio standards | G.711, G.722, G.722.1, G.729, AAC-LD, and Opus |
| Audio features | High-quality 20 kHz audio Prepared for inductive loop (line out) Automatic Gain Control (AGC) Automatic noise reduction Active lip synchronization |
| Audio inputs | Three microphones, 4-pin mini-jack Two audio in from HDMI |
| Audio outputs (external) | 1 line out mini-jack (stereo) (Codec Plus) |
| Audio system | Integrated full-range multichannel and bass speakers Frequency response: 45 Hz to 20 kHz Max output level SPL 104dB @ 1m |
| Speaker tracking | 6-element microphone array for accurate speaker tracking |
| Dual stream | H.239 (H.323) dual stream Binary Floor Control Protocol (BFCP) (SIP) dual stream Support resolutions up to 3840 x 2160p5 (4Kp5) and 1080p30 |
| Wireless sharing | Cisco Webex Teams app (up to 3840 x 2160p5) |
| Cisco Intelligent Proximity client (up to 1920 x 1080p5) | |
| Multipoint support | 4-way embedded SIP/H.323 conferencing capability with MultiSite option |
| MultiSite features (embedded multipoint) (optional upgrade) | Adaptive SIP/H.323 MultiSite 3-way resolution up to 1080p30 + content up to 4Kp5 4-way resolution up to 720p30 + content up to 4Kp5 Full individual audio and video transcoding H.323/SIP/VoIP in the same conference Support for presentation (H.239/BFCP) from any participant at resolutions up to 3840 x 2160p5 Best Impression (automatic continuous presence layouts) Encryption and dual stream from any site |
| Protocols | H.323, SIP, Cisco Webex |
| Embedded encryption | H.323 and SIP point-to-point Standards-based: H.235 v3 and Advanced Encryption Standard (AES) Automatic key generation and exchange |
| IP network features | DNS lookup for service configuration Differentiated services (Quality of Service [QoS]) IP-adaptive bandwidth management (including flow control) Automatic gatekeeper discovery Dynamic playout and lip-sync buffering H.245 Dual-Tone Multi-frequency (DTMF) tones in H.323 RFC 4733 DTMF tones in SIP Date and time support using Network Time Protocol (NTP) Media adaption and resilience Uniform Resource Identifier (URI) dialing |
| Call control | Cisco Unified Communications Manager (CUCM) Native registration with CUCM Requires CUCM Version 10.5.2 or later with device pack for Room 70 Cisco Expressway Native registration with Expressway Cisco Webex Third-party H.323 Gatekeepers and standards-based SIP proxies |
| Cisco TelePresence Management Suite (TMS) | Support for Room 70 beginning with version TMS 15.6.1 (available January 2018) |
| IPv6 network support | Single call stack support for both H.323 and SIP Dual-stack IPv4 and IPv6 for DHCP, SSH, HTTP, HTTPS, DNS, DiffServ Support for both static and automatic IP configuration (stateless address auto configuration) |
| Security features | Management using HTTPS and SSH IP administration password Menu administration password Disable IP services Network settings protection |
| Certificate management | Certificate Authority Proxy Function (CAPF) support for additional security Manufacturer-Installed Certificates (MIC) Locally Significant Certificates (LSC) X.509 Digital Certificates (DER encoded binary); both DER and Base-64 formats are acceptable for the client and server certificates; certificates with a key size of 1024, 2048, and 4096 are supported Network settings protection |
| Other interfaces | USB 2.0 port,mUSB, factory reset pinhole |
| Power | Autosensing power supply 100-240 VAC, 50/60 Hz Dual-screen system: Average 470 W Single-screen system: Average 258 W* Power consumption under normal operating conditions as defined in IEC 60950-1 |
| Operating temperature and humidity | 0°C to 35°C (32°F to 95°F) ambient temperature |
| 20% to 90% Relative Humidity (RH) | |
| Max operating altitude: 3000meter (9842ft.) | |
| Storage and transport temperature | -20°C to 60°C (-4°F to 140°F) at RH 10% to 90% (noncondensing) |
| Camera overview | 5K Ultra HD camera Support up to 60 fps 15.1 MP image sensor 1/1.7 CMOS 5x digital zoom (3 tele-lenses each with 50° horizontal field of view) f/2.0 aperture 83° horizontal field of view; 51.5° vertical field of view Auto-framing (audio + face detect) 5120 x 2880 pixel resolution Auto focus, brightness, and white balance Focus distance 1 m to infinity |
- Bảo hành: 12 tháng.
