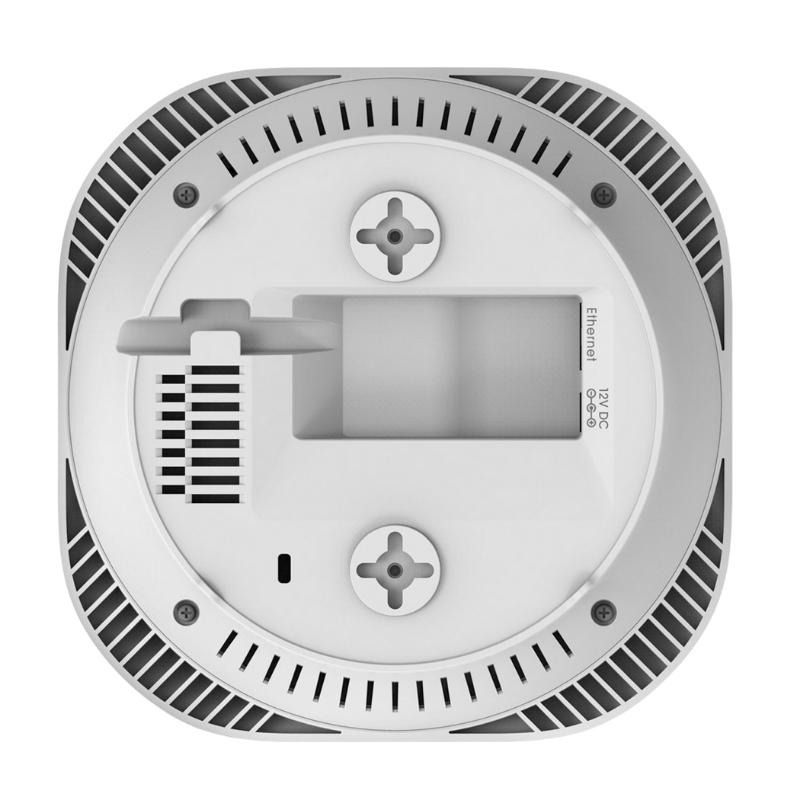

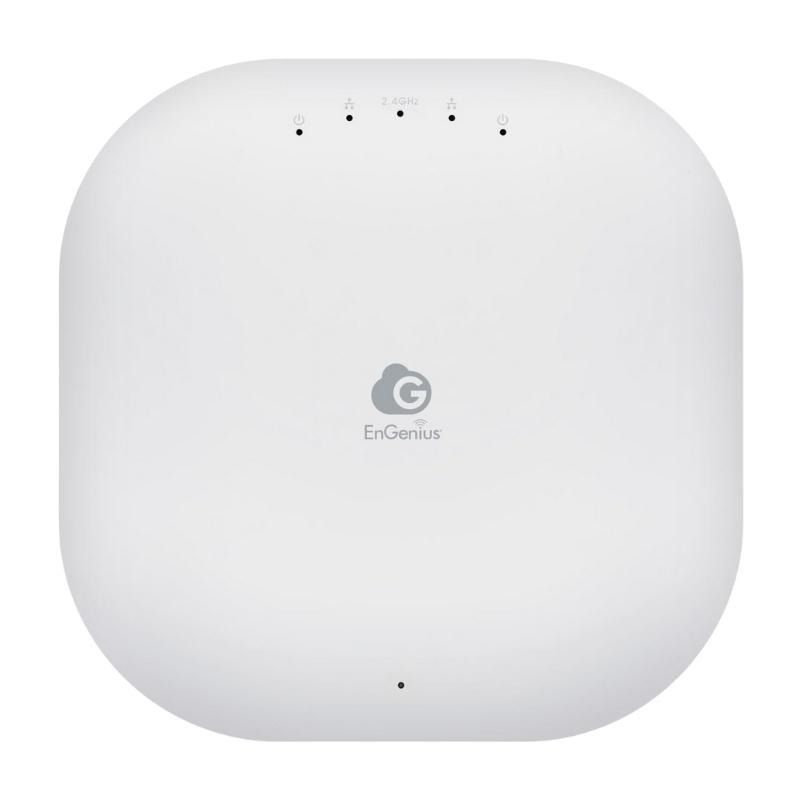

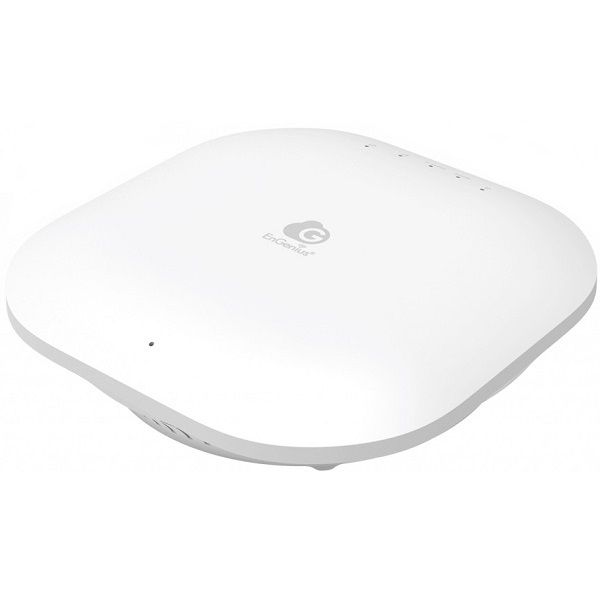

Thiết bị thu phát sóng không dây EnGenius ECW120
- Supercharged speeds up to 867Mbps (5GHz) & up to 400 Mbps (2.4GHz)
- Wave 2 MU-MIMO to meet Wi-Fi business demands
- Allows more wireless clients & better connections
- Remote managing & monitoring
- Gigabit Ethernet PoE port for flexible power options
- Quick-scan device register & configuration and remote monitoring & troubleshooting
- Cloud manage an unlimited number of APs from anywhere with the EnGenius Cloud To-Go App
- Mesh Wireless Support simplifies setup, optimizes signals & self-heals
Specifications
| Model | ECW120 |
| Standard | IEEE 802.11b/g/n on 2.4 GHz IEEE 802.11a/n/ac on 5 GHz |
| Antenna | 2 x 2.4 GHz: 5 dBi 2 x 5 GHz: 5 dBi Integrated Omni-Directional Antenna |
| Physical Interface | 1 x 10/100/1000 BASE-T, RJ-45 Ethernet Port 1 x DC Jack 1 x Reset Button |
| LED Indicators | 1 x Power, 1 x LAN, 1 x Mesh, 1 x 2.4 GHz, 1 x 5 GHz |
| Power Source | Power-over-Ethernet: 802.3af Input IEEE 802.11e Compliant Source 12VDC /1A |
| Maximum Power Consumption | 12W |
| Wireless & Radio | |
| Operating Frequency | Dual-Radio Concurrent 2.4 GHz & 5 GHz |
| Operation Modes | AP, AP Mesh, Mesh |
| Frequency Radio | 2.4 GHz/ 5 GHz |
| Transmit Power | Up to 23 dBm on 2.4 GHz Up to 23 dBm on 5 GHz (Maximum power is limited by regulatory domain) |
| Radio Chains/Spatial Stream | 2×2:2 |
| MU-MIMO | Two (2) Spatial Stream MU-MIMO up to 867 Mbps to two (2) 1x1 wireless devices simultaneously |
| Management | |
| Multiple BSSID | 8 SSIDs on both 2.4GHz and 5GHz bands |
| VLAN Tagging | Supports 802.1q SSID-to-VLAN Tagging Cross-Band VLAN Pass-Through Management VLAN |
| Spanning Tree | Supports 802.1d Spanning Tree Protocol |
| QoS | Complaint With IEEE 802.11e Standard WMM |
| SNMP | v1, v2c, v3 |
| MIB | I/II, Private MIB |
| Fast Roaming | 802.11r/k |
| Wireless Security | WPA2-PSK WPA2-Enterprise WPA3-PSK WPA3-Enterprise Hide SSID in Beacons Wireless STA (Client) Connected List Client Isolation |
| Environmental & Physical | |
| Temperature Range | Operating: 32ºF~104ºF (0ºC ~ 40ºC) Storage: -40ºF~176ºF (-40ºC ~ 80ºC) |
| Humidity (non-condensing) | Operating: 90% or less Storage: 90% or less |
| Dimensions (WxLxH) | 161.5 x 161.5 x 41.6 mm |
| Weight | 362.8g |
- Bảo hành: 2 năm.
