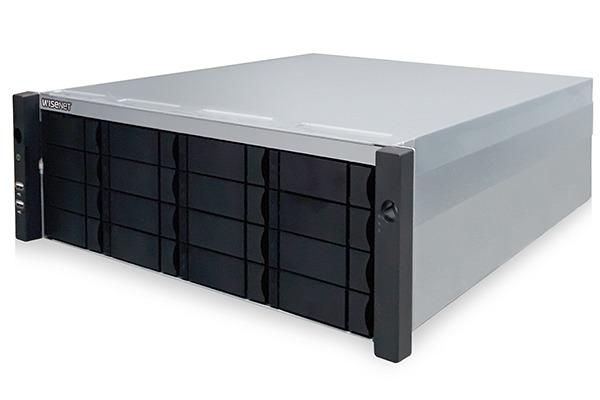

Transportation Monitoring System 128 Device/Server Hanwha Techwin WISENET TAW-4000H16
- TMS (Transportation Monitoring System) Software installed appliance.
- Clustering: up to 28 server clustering (up to 10,000ch).
- Area search based on GPS.
- Automatic backup when Wi-Fi connected.
- Reporting (Overspeed, Geofence, Emergency bell, Impact detection).
- Provide video and event management up to 128 mobile NVRs (with single TAW).
Đặc tính kỹ thuật
| Model | TAW-4000H16 |
| Display | |
| Multi-channel display | 1/4/9/16/25/36/49/64/Auto Mode |
| Video type | H.264, H.265, MPEG-4, MJPEG |
| System | |
| OS | Windows 10 IoT Enterprise |
| S/W | TMS preinstalled |
| Archive | Max. 128 Device/Server |
| Server Clustering | Max. 28 Server (Max. 10,000ch) |
| Protocol | Wisenet |
| Suport Language | Korean, English, Croatian, Czech, Danish, Dutch, Finnish, French, German, Greek, Hungarian, Italian, Norwegian, Polish, Portuguese, Romanian, Russian, Serbian, Spanish, Swedish, Taiwanese, Thai, Turkish |
| Map | Google, Open street Map |
| Archiving (wifi back up) | |
| Video type | H.265, H.264, MJPEG, WiseStream (H.264, H.265) |
| Bandwidth | Max. 520Mbps |
| Video resolution | CIF ~ 12MP |
| Mode | All data, Event data |
| Event type | Continuous, Manual, Camera event (Sensor, MD, Passing, Entering, Exiting, Disappearing (Appearing),Tampering, Tracking, Face Detection, Audio Detection, Emergency, Overspeed, Impact |
| GPS back up (wifi) | |
| Type | Recorder based data |
| Event back up (wifi) | |
| Type | Recorder based data |
| Video Search | |
| Play back Bandwidth | Max. 150Mbps |
| Resolution | CIF ~ 12MP |
| Simultaneous Play back | Max.16ch |
| Fisheye dewarping | Console |
| Playback control | Start/stop, Pause, Faster/Slower forward/backward, Step Forward/ Backward, Skip Forward/Backward |
| Display | Video, Map, Search result, Time line |
| Export | AVI, SEC |
| Audio Compression | G.711 u-law(PCM), G723, G726(ADPCM), AAC |
| Route Search | |
| Select taget device | Max. 5EA |
| Route display | Max. 5EA |
| Search mode | Device route Search, Route search of specipic area |
| Play back control | Start/stop, Pause, Faster/Slower forward/backward |
| Video playback | Instant playback video and route |
| Export | CSV(GPS) |
| Speed display | Velocity graph, Control(time zone, guide line) |
| Report | |
| GPS | Overspeed, Geofence, Emergency bell, Impact detection |
| Device | Video loss, HDD Fail, Fan Fail |
| System | Server log, Archive status |
| Export | CSV |
| External storage | |
| Mode | GPS/Video/All |
| File backup format | SEC |
| Hardware & power | |
| Processor | Xeon E3-1275 v5 (8M Cache 3.6GHz) |
| Memory | Unbuffered ECC DDR3 8GB x2 |
| OS Disk | M.2 SSD 128G |
| Drive Type | SATA 6Gb/s |
| HDD | 3.5' 16EA Hot Swap (Max 160TB) |
| RAID | 0, 1, 5, 6 |
| Display Port | VGA, DVI, HDMI |
| Network | Gigabit Ethernet RJ-45 (1000 Base-T) x2, IPMI |
| Electrical | |
| AC Input | 100 ~ 240VAC, 50 ~ 60Hz |
| Power Supply | Redundant 550W x2 |
| Current (Max) | 4A (100V), 2A (240V) |
| Environmental | |
| Operating | +5°C to +40°C (+41℉ to +104℉) / Less than 80% |
| Mechanical | |
| Color/Material | Silver / Metal |
| Form Factor | 3U, 19 inch Rackmount |
| Dimensions | 447(17.59') x 131(5.15') x 503(19.8')mm |
| Weight | 17.6kg |
- Hãng sản xuất: Hanwha Techwin Hàn Quốc.
- Bảo hành: 24 tháng.
