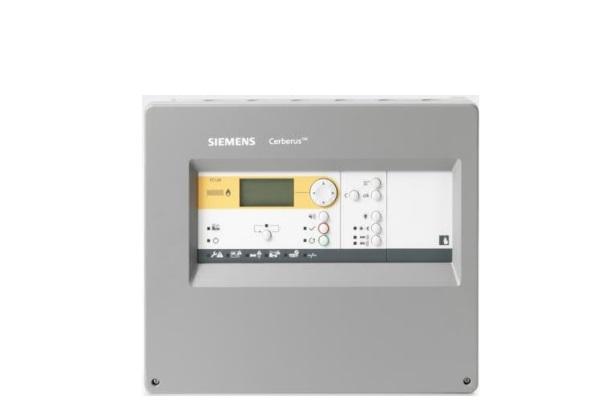

Trung tâm báo cháy 12 vùng SIEMENS FC124-ZA
- The FC124-ZA compacts fire control panels with an integrated operating unit for 12 zones.
- Processes signals from the 110-series/ DS11 and SynoLINE300/600 series.
- The control unit has been designed to be very simple to use while offering exceptional flexibility via a comprehensive feature list.
– All detector lines are monitored for ground faults.
– Adaptation of the customer text directly on the panel via menu navigation.
– Up to 1000 events can be stored according to various criteria.
– Automatic summer/winter time change.
Thông số ky thuật
| Model | FC124-ZA |
| Mains voltage | AC 97…127 V AC 196…253 V |
| Power consumption | 70 W |
| Operating voltage | DC 21…28.6 V |
| Max. nominal output current without battery charging (I max b) | Max. 2.5 A |
| Battery capacity | 2x 12V, up to 17 Ah |
| Battery monitoring | Yes |
| Mains monitoring | Yes |
| Connectable detector series | 110-series/ DS11/ SynoLINE300/ 600 |
| Number of lines | 12 |
| Number of detectors per line | Max. 32 |
| Slots for relay cards | 3 |
| Emergency current | Up to 72 Ah |
| Operating temperature | -5…+40 °C |
| Storage temperature | -20…+60 °C |
| Humidity (no condensation permitted) | ≤95 % rel. |
| Dimensions (W x H x D) | 430 x 399 x 124 mm |
| Protection category (IEC 60529) | IP30 |
- Xuất xứ: Trung Quốc.
- Bảo hành: 12 tháng.
