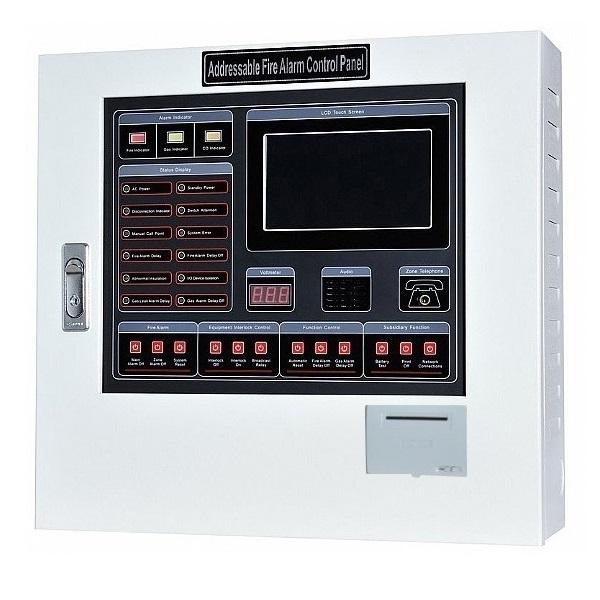

Trung tâm báo cháy địa chỉ 01 loop 256 địa chỉ YUNYANG YFR-2
-Trung tâm báo cháy địa chỉ 01 loop 256 địa chỉ.
-Màn hình hiển thị LCD 7 inch.
-Có thể tích hợp màn hình đồ họa.
-Có thể kết nối máy in của hãng.
-Giao thức truyền thông nhị phân.
-Hỗ trợ thẻ nhớ SD, có thể lưu trữ lên đến 99.999 bản ghi.
-Chức năng cảnh báo bằng giọng nói hoặc loa 90dB.
-7 inch color touch screen user interface with LCD backlight power-saving function.
-Digital voltmeter accurately displays voltage data.
-Capacitive touch screen controlled LED backlight.
-Separate indicator and buzzer sound for fire alarm, gas, and carbon monoxide.
-Interactive guidance function during fire to instruct personnel on duty of emergency operation.
-Touch screen operating instructions.
-Build-in sound synthesizer with sound guidance function.
-Three individual display areas on LCD for information on fire alarm, gas, and other -output devices.
-Supports SD Memory Card and storages historical data up to 99,999 entries.
-Settings downloadable via computer network or SD card, no burner device needed, simple configuration.
-Network control function (optional: requires PC graphic system): Monitors.
+Fire emergency equipment control panel.
+CCTV video monitors.
+Evacuation route guidance system.
+Gas, carbon monoxide leaks.
-Control panel parameters can be configured directly on the touch screen panel.
-System’s main signal line has ground detection and power-surge protection functions.
-Delayed opening/ closing of air impellers and gates controllable by software.
-Fire alarm, damper, sprinkler, and foam sprinkler relays with individual switch.
-Control panel with permanent and temporary isolation test functions.
-With auto, manual, weekly check, and manual activation of terminal device functions.
-Can connect with RS-485 broadcast relay board for up to 4,080 contacts.
-Equipped with high-speed miniature thermal printer to print all event information (optional).
-Communication module are expandable to a maximum of 16 units and 4,080 addresses.
-Control panel expandable functions:
+Addressable device connection: Up to 4,080 addresses.
+Serial alarm broadcast relay interface: Up to 4,080 contacts.
+Addressable Fire Alarm Annunciator: Up to 16 units.
+Graphic PC 1 unit: Up to 16 Fire Alarm Control Panels.
-Communication module with overload and SLC short circuit protection functions.
-SLC and IDC cables with inspection function for insulation breakdown.
-Protection against I/O modules wiring misconnection.
-Detector with fire alarm delay function (alarm delay time can be set individually).
-Editing function for one-to-one, multiple-to-one, and logical programming.
Đặc tính kỹ thuật
| Model | YFR-2 |
| Power Source | 110VAC, 50/60Hz; 220VAC, 50/60Hz |
| Address/ Loops | 256/1L |
| Standby Battery | 24VDC |
| Loop Voltage | Load Power/ Indicating Lamp/ Zone Telephone: 24VDC |
| SLC Power Source: 32VAC | |
| Power Consumption | Main Control Panel (monitoring): 280mA (max) |
| Communication module for each system (monitoring): 700mA (max) | |
| Transmission Method | Selective/ Sequential |
| Broadcast Output Method | Relay output: Interlock relay board x 26 sets for a maximum of 4,080 contacts (relay board = 40 contacts (standard), 160 contacts (expansion) |
| Main Audio | Voice notification, human voice or voice alarm (over 90 dB) |
| Operating Temperature | 0 ~ 40˚C |
| Cabinet Material | Powder coating steel/ Flame retardant ABS enclosure |
| Cabinet | Wall-mount |
| Dimension | 450 x 480 x 140mm |
-Sản xuất tại Taiwan.
-Bảo hành: 12 tháng.
