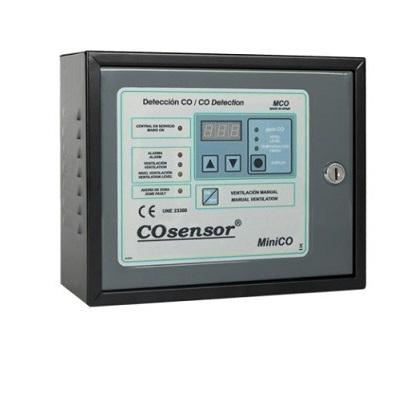

Trung tâm điều khiển MINICO 1 zone 10 đầu báo COFEM MCO110
- Conventional Control panel with diffusion sensors of carbon monoxide (CO) and nitrogen dioxide (NO2) UNE 23300 certified.
- Dry contact output (COM/NA) for ventilation 1 and ventilation 2 (DVB model only).
- Alarm output 24 Vdc 0.8 A.
- Space for 2x12 Vdc 2 Ah batteries (DVB model only).
- Display 3-digit, 7-segment.
- Dimensions: 280 x 225 x 105 mm.
- UNE 23300 certified.
Đặc tính kỹ thuật
| Model | MCO110 |
| Power supply | 230V 50-60Hz/AC |
| Maximum consumption | 20 VA. 230 Vac |
| Batteries (only DVB model) | 2x12 Vdc 2 Ah SLA |
| Power supply fuse | 4:00 AM |
| Battery charger | 500 mA 27Vdc 20ºC |
| Sensors by zone | 10 CO/NO2 |
| IP | 30 |
| Dry contact ventilation | 230 Vac/30 Vdc 2A |
| Intensity alarm output | 24 Vdc 0,8 A |
| Alarm output fuse | Resettable |
| Zone output voltage | 26 Vdc |
| Zone fuse | 2:00 AM |
| Dry contact fault | 230 Vac/30 Vdc 1 A |
| Environmental conditions | -10ºC +50ºC |
| Dimensions | 280x225x105 mm |
| Weight | 3,45 kg |
| Standard | UNE 23300 |
- Bảo hành: 12 tháng.
