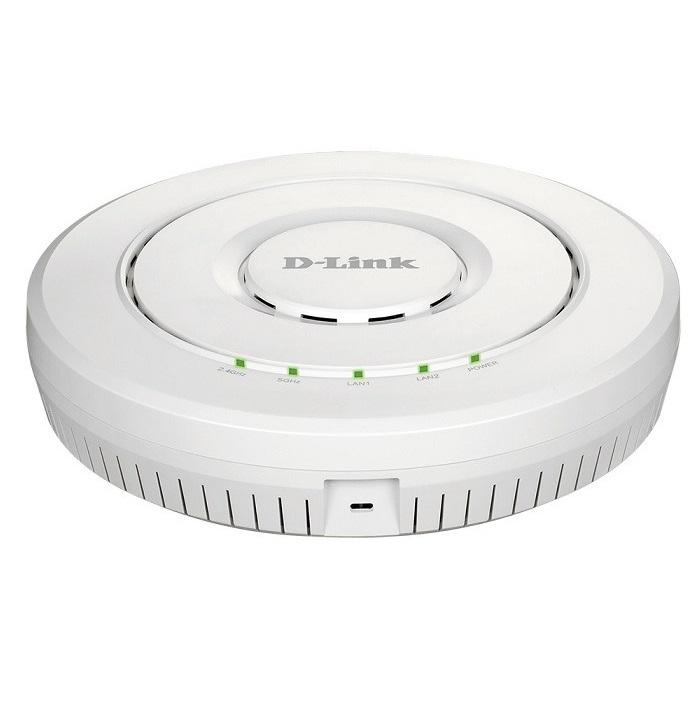

Unified AX3600 Dual Band PoE Access Point D-Link DWL-X8630AP
- Dual-band wireless speeds offer an unparalleled 3600 Mbps throughput
- Wi-Fi 6 ready: delivers greater network efficiency and lower latency, with nearly four times the capacity of previous Wi-Fi standards
- 4 x 4 MU-MIMO slices through congestion, reducing wait time for all users
- Support for Power of Ethernet 802.3at means less wires, for cleaner and easier deployment
- Coverage is shared more efficiently over more users with Airtime Fairness
- Band Steering intelligently manages users, pushing them onto the higher radio frequency when possible
- With 802.11k support, devices pre-detect neighboring APs, switching seamlessly when roaming
- Quality of Service prioritizes time-sensitive data such as video calls or streaming, for less interruptions
- Stay secure with the latest 128-bit Personal or 192-bit Enterprise wireless encryption
- Zero-Wait DFS preemptively seeks quieter frequency channels, reducing external interference
Specifications
| Model | DWL-X8630AP |
| General | |
| Hardware Version | A1 |
| Wireless Interface | IEEE 802.11a/b/g/n/ac/ax (WiFi 6) |
| Ethernet Interface | 1 x 10/100/1000 BASE-T LAN port 1 x 10/100/1000/2500 BASE-T LAN port |
| Console Port | RJ45 |
| MIMO | 4 x 4 |
| Data Rate | 2.4 GHz - Up to 1147 Mbps (1024QAM) 5 GHz - Up to 2402 Mbps (1024QAM) |
| Antenna | Internal omni-directional antennas 2.4 GHz: 3 dBi 5 GHz: 4 dBi |
| Operating Frequency | 2400 to 2483.5 MHz 5150 to 5850 MHz |
| Operating Channels | 1 to 13 channels for 2.4 GHz band (per country code) 36 to 165 channels for 5 GHz band (per country code) |
| System Management | Web-based user interface (HTTP/HTTPs) Command-Line Interface (CLI) Telnet/SSH |
| Functionality | |
| Advanced Features | Auto Channel selection 802.1p Quality of Service (QoS) Wireless Multimedia (WMM) Wireless Distribution System (WDS) Band steering Airtime Fairness Link Aggregation IEEE 802.11kvr Fast Roaming |
| Management | |
| Operating Mode | Standalone mode Managed mode - Centrally managed by D-Link Wireless Controller |
| Management Interfaces | Web-based User Interface (Web UI) Telnet/SSH Command Line Interface (CLI) SNMP v1/v2c/v3 |
| Security | |
| SSID Security | Up to 32 SSIDs, 16 per radio 802.1Q VLAN Station Isolation |
| Wireless Security | Latest 128-bit Personal wireless encryption Latest 192-bit Enterprise wireless encryption SAE OWE (Enhanced Open) AES TKIP |
| Detection & Prevention | Rogue and Valid AP Classification |
| Authentication | MAC address filtering |
| Physical | |
| Power Supply | External Power Adapter: 12 VDC 2.5A Supports 802.3at PoE PD on LAN 1 Port |
| Power over Ethernet | 802.3at |
| Max Power Consumption | 25.27 W |
| Dimensions | 220 x 47 mm |
| Weight | 0.868 kg without bracket |
| Operating Temperature | 0 to 40 °C |
| Storage Temperature | -20 to 65 °C |
| Operating Humidity | 10% to 90% non-condensing |
| Storage Humidity | 5% to 95% non-condensing |
- Bảo hành: 24 tháng.
