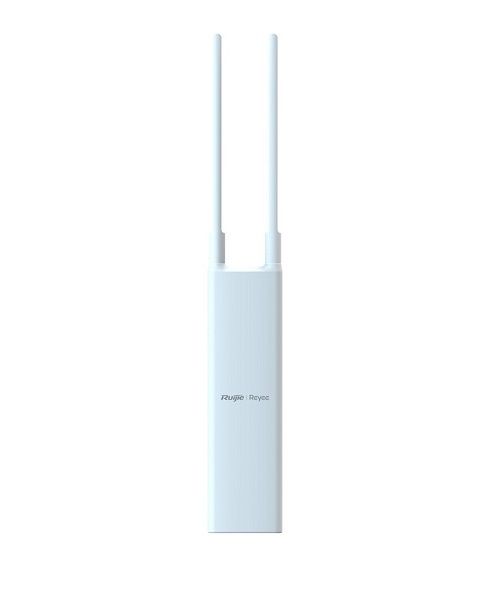

Wi-Fi 5 AC1300 Dual-Band Outdoor Access Point RUIJIE RG-RAP52-OD
- Hỗ trợ 1 cổng 10/100/1000Base-T.
- Giao thức wifi: 802.11ac Wave 2, 1267Mbps.
- Tiêu chuẩn wifi: Wi-Fi 5 (IEEE 802.11ac Wave 2); Wi-Fi 4 (IEEE 802.11n); IEEE 802.11a; IEEE 802.11b/g.
- Công nghệ MIMO: 2x2 @2.4GHz, 2x2 @5GHz.
- Cấp độ bảo vệ: IP65.
- Nhiệt độ hoạt động: -30°C to +70°C (-22°F to +158°F).
- Kích thước: 220 x 50 x 35.7 mm.
- Trọng lượng: ≤0.4kg.
Thông số kỹ thuật
| Hardware Specifications | |
| Wi-Fi Standards | Wi-Fi 5 (IEEE 802.11ac Wave 2) Wi-Fi 4 (IEEE 802.11n) IEEE 802.11a IEEE 802.11b/g |
| MIMO | 2.4 GHz, 2×2 MIMO 5 GHz, 2×2 MIMO |
| Max. Data Rate | 2.4 GHz: 400 Mbps 5 GHz: 867 Mbps |
| Max. Transmit Power | CE EIRP: 2.4 GHz to 2.4835 GHz ≤ 20 dBm 5.150 GHz to 5.350 GHz ≤ 23 dBm 5.470 GHz to 5.725 GHz ≤ 30 dBm Note: Country specific restrictions apply Myanmar: 2400 MHz - 2483.5 MHz ≤ 20 dBm 5150 MHz - 5350 MHz ≤ 23 dBm 5470 MHz - 5850 MHz ≤ 25 dBm Thailand: 2.4 GHz to 2.4835 GHz: 20 dBm 5.150 GHz to 5.350 GHz: 23 dBm 5.470 GHz to 5.725 GHz: 30 dBm 5.725 GHz to 5.825 GHz: 30 dBm |
| Max Throughput | Up to 400 Mbps at 2.4 GHz Up to 867 Mbps at 5 GHz 1.267 Gbps per AP |
| Dimensions | 220 mm × 50 mm × 35.7 mm (8.66 in. × 1.97 in. × 1.41 in.) (excluding mounting bracket and antenna) antenna size: 185mm (7.24 in.) |
| Weight | Main Unit: ≤ 0.4 kg |
| Fixed Ports | 1 × 10/100/1000 Base-T port |
| LEDs | 1 × system LED |
| Power Supply | IEEE 802.3af standard PoE power supply 24 V passive PoE power supply |
| Basic Features | |
| Max. Power Consumption | ≤ 14 W |
| Operating Temperature | –30°C to +70°C (–22°F to +158°F) Long-term operating temperature: -30℃ ~ 65℃ (-22℉ ~ 149℉); tested short-term operating temperature (Less than 24 hours): 66℃ ~ 70℃ (150.8℉ ~ 158℉) |
| Storage Temperature | –40°C to +75°C (–40°F to +167°F) |
| Operating Humidity | 10% to 95% RH (non-condensing) |
| Storage Humidity | 10% to 95% RH (non-condensing) |
| Installation | Wall mounting and pole mounting |
| EMC Compliance Standards | GB9254 EN301 489 EN55022 B9254-2008 EN301 489 EN55022 FCC Part15 RSS-210 EN50155 EN50121 NEBS GR-63-CORE_Issue3_2006 |
| Shock and Vibration Compliance Standards | IEC 61373 NEBS GR-63-CORE_Issue3_2006 EN300 328 EN301 893 GB/T25119 EN50155(EN61373) |
| Radio Compliance Standards | EN300 328 EN301 893 |
| IP (Ingress Protection) Rating | IP65 |
| MTBF | > 400,000 hours |
| Software Features | |
| Operating Mode | AP mode and routing mode |
| WLAN | Maximum number of clients: 110 Recommended number of clients: 96 Up to 8 SSIDs Support SSID hiding Configuring the authentication mode encryption mechanism VLAN attributes for each SSID SSID-based and radio-based STA limit Support Layer 2 user isolation |
| KV Roaming | Yes |
| Layer 2 Roaming | Yes |
| Layer 3 Roaming | Yes |
| Security | Support Black List / White List: Maximum 256 rules per SSID Maximum 1024 rules per AP Support WPA (TKIP), WPA2 (AES), and WPA-PSK data encryption Standalone Portal |
| Routing | Support static IP address, DHCP, PPPoE Dial Up |
| Management and maintenance | Support unified networking of all network equipment Support local or remote management with Ruijie Cloud app Support local management with web Support remote management with Ruijie Cloud platform |
| Platform management features | WIO2.0, Automatic RF adjustment via the platform Unified configuration via the platform Unified monitoring via the platform |
| AP Mesh | Mesh management Reyee Mesh |
- Bảo hành: 3 năm.
