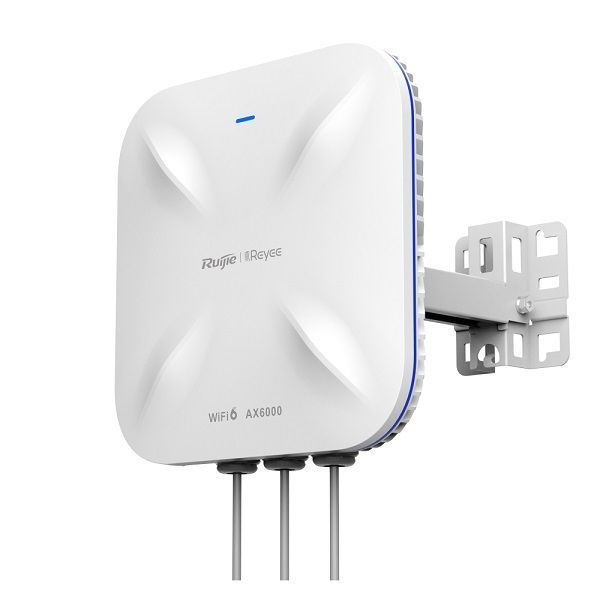

Wi-Fi 6 AX6000 High-density Outdoor Access Point RUIJIE RG-RAP6260(H)
- Network Port: 1 x 100/1000/2500 Base-T, 1 x 1GBase-X SFP.
- Wireless Protocol: 802.11ax (Wi-Fi 6), 5.95Gbps.
- MIMO: 4x4 @2.4GHz, 4x4 @5GHz.
- Max/Recommended Clients: 512/130.
- Ultra-fast 5.95Gbps outdoor AP, best-in-class Wi-Fi performance.
- Boost your Internet speed with 2.5GE uplink.
- Easily expand extra outdoor Wi-Fi with Reyee Mesh.
- Extra-distance access point deployment with SFP port.
- IP68 protection, rock-solid in harsh environments.
- Power Supply: 802.3bt PoE++, 48V/1A DC.
- Operating Temperature: -40℃ ~ 65℃.
- Dimension: 300 × 300 × 75.5 mm (excluding mounting kits).
Specifications
| Wi-Fi Standards | Wi-Fi 6 (IEEE 802.11ax) Wi-Fi 5 (IEEE 802.11ac Wave 2) Wi-Fi 4 (IEEE 802.11n) IEEE 802.11a IEEE 802.11b/g |
| MIMO | 2.4GHz, 4x4, MU-MIMO 5GHz, 4x4, MU-MIMO |
| Max. Wi-Fi Speed | 2.4GHz: 1148Mbps 5GHz: 4804Mbps |
| Antenna | 8 |
| Antenna Type | Built-In Omnidirectional |
| Antenna Gain | 2.4GHz: 3dBi 5 GHz: 4dBi |
| Fixed Ports | 1 x 100/1000/2500 Base-T port 1 x 1GBase-X SFP port 1 x DC port 1 × Reset button |
| Max. Clients | 512 |
| Recommended Clients | 130 |
| Max. SSIDs | 8 |
| Recommended Wi-Fi Coverage Radius | 2.4GHz: 50 meters 5GHz: 150 meters The Wi-Fi coverage is related to the installation environment of the access point. |
| Max. Wi-Fi Coverage Radius | 300 meters |
| Operation Frequency Bands | 802.11b/g/n/ax: 2.400 GHz to 2.4835 GHz 802.11a/n/ac/ax: 5.150 GHz to 5.350 GHz, 5.470 GHz to 5.725 GHz, 5.725 GHz to 5.850 GHz country-specific restrictions apply |
| LED Indicator | 1 × System LED indicator |
| Buttons | 1 × Reset button |
| Dimensions (W × D × H) | 300 mm x 300 mm x 75.5 mm (Without Mounting Bracket) |
| Weight | Main Unit: 3.5 kg Mounting Bracket: 1.35kg |
| DC Port Dimensions | Outer Diameter: 5.5 mm Inner Diameter: 2.1 mm Length: 10 mm |
| Installation | Wall-Mountable/Pole-Mountable |
| Mounting Bracket Dimensions (W × D × H) | 124 mm x 120 mm x 35 mm |
| Mounting Hole Pattern | 65 mm x 105 mm |
| Mounting Hole Diameter | 9 mm |
| Pole Diameter | 70 mm to 140 mm |
| Power Supplies | IEEE 802.3bt PoE DC 48V/1A |
| Power Consumption | ≤ 40W |
| Operating Temperature | -40°C ~ 65°C |
| Storage Temperature | -40°C ~ 85°C |
| Operating Humidity | 0% to 100% Noncondensing |
| Storage Humidity | 0% to 100% Noncondensing |
| IP(Ingress Protection) | IP68 |
| Port Surge | 4kV |
| MTBF | >400000H |
- Bảo hành: 3 năm.
