Wireless 2.4 & 5GHz Dualband Outdoor 10 dBi Directional Antenna D-Link ANT70-1000

Wireless 2.4 & 5GHz Dualband Outdoor 10 dBi Directional Antenna D-Link ANT70-1000

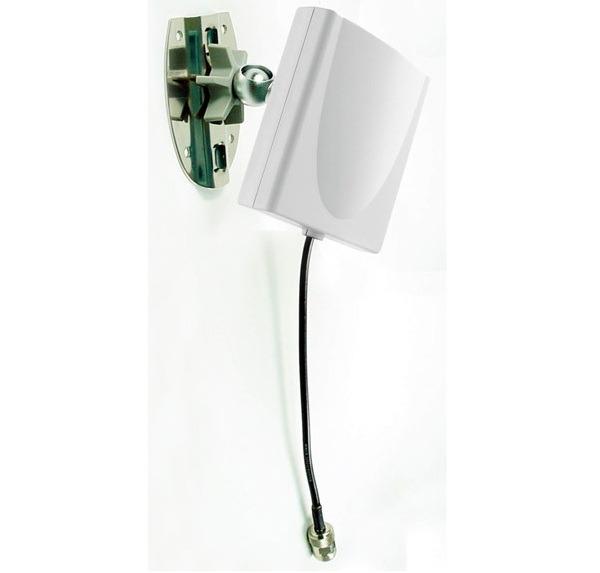

- The ANT70-1000 directional antenna is a high gain, high-performance dual band antenna for indoor and outdoor installation. This antenna can greatly increase the effective wireless operation range of 802.11a, 802.11b and 802.11g wireless devices.

- Providing 8dBi gain for the 2.4GHz frequency band and 10dBi gain for the 5GHz frequency band, this antenna can be connected to a wireless access point or router to improve signal transmission and reception in a directional angle. It is ideal for connecting two networks locating in two different buildings, or in two different locations in a campus. For indoors use, this antenna is ideal for installation in an exhibition hall or a large lobby.

Specifications

ModelANT70-1000
Frequency Range2400 ~ 2500 MHz
4900 ~ 5875 MHz
Peak Gain8dBi (2.4GHz frequency band)
10dBi (5GHz frequency band)
PolarizationLinear
Vertical
Horizontal Half Power Beam Width58° (2.4 GHz frequency band)
45° (5 GHz frequency band)
Vertical Half Power Beam Width55° (2.4 GHz frequency band)
45° (5 GHz frequency band)
Front to Back Ratio15dB
Downtilt
Power Handling5W
Impedance50Ω
ConnectorN Jack (built-in)
Mounting TypePole
Survival Wind Speed216 km/hr
Operating Temperature40 ~ 80°C
MaterialGlass Fiber, UV resistant
Weight120g
Dimensions114 x 124 x 40 mm

- Bảo hành 12 tháng.
