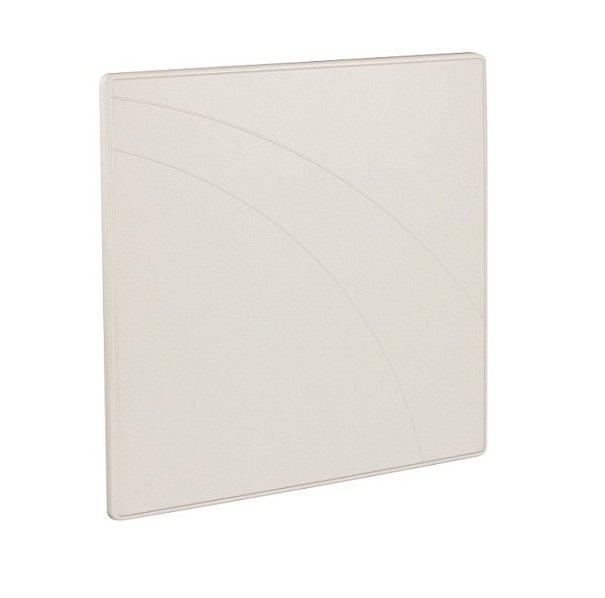

Wireless 2.4 & 5GHz Dualband Outdoor Directional Antenna D-Link ANT70-1400N
- D-Link ANT70-1400N Triple Polarization Dual-Band Directional Antenna is an outdoor antenna for connecting 2.4 or 5GHz wireless LAN over long distances and connection with high-speed 11n. It has three antenna connectors for transmitting three spatial streams.
- The ANT70-1400N is ideal for operating in modes such as point-to-point WDS and others that require a high gain directional antenna. An example application of this antenna is to extend your local area network (LAN) by connecting LANs at two physically separated locations. Alternatively, Wireless Internet Service Provider (WISP) subscribers can also use this antenna to establish a strong connection between their host and to their ISP’s outdoor AP.
Specifications
| Model | ANT70-1400N |
| Frequency Range | 2400 ~ 2500 MHz 5150 ~ 5875 MHz |
| Peak Gain | 11dBi (2.4GHz frequency band) 12-14dBi (5GHz frequency band) |
| VSWR | 2.0 : 1 maximum (2.4GHz frequency band) 2.0 : 1 maximum (5GHz frequency band) |
| Horizontal Half Power Beam Width | 40º - 44º (2.4GHz frequency band) 19º - 22º (5.1GHz frequency band) |
| Vertical Half Power Beam Width | 38º - 41º (2.4GHz frequency band) 25º - 31º (5.1GHz frequency band) |
| Connector | N jack (x3) |
| Extension Cable | 50 cm with RP-SMA and N-type connector |
| Mounting Type | Pole & wall |
- Bảo hành 12 tháng.
