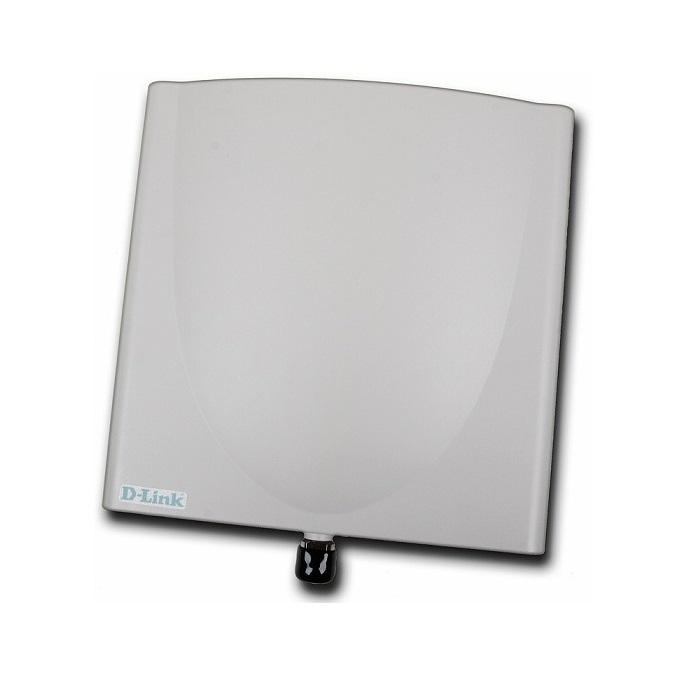

Wireless 2.4 & 5GHz Dualband Outdoor Directional Antenna D-Link ANT70-1800

Wireless 2.4 & 5GHz Dualband Outdoor Directional Antenna D-Link ANT70-1800

  • MS 000013420
  • D-Link
Giá : Liên hệ

Wireless 2.4 & 5GHz Dualband Outdoor Directional Antenna D-Link ANT70-1800

Wireless 2.4 & 5GHz Dualband Outdoor Directional Antenna D-Link ANT70-1800

- Dualband 2.4GHz & 5GHz 18dBi Gain Directional Outdoor Antenna - Up to 8km Range.

- The ANT70-1800 directional antenna is a high gain, high-performance dual band antenna for indoor and outdoor installation. This antenna can greatly increase the effective wireless operation range of 802.11a, 802.11b and 802.11g wireless devices.

- Providing 14dBi gain for the 2.4GHz frequency band and 18dBi gain for the 5GHz frequency band, this antenna can be connected to a wireless access point or router to improve signal transmission and reception in a directional angle. It is ideal for connecting two networks locating in two different buildings, or in two different locations in a campus. For indoors use, this antenna is ideal for installation in an exhibition hall or a large lobby.

- The ANT70-1800 antenna is equipped with an N-jack connector and can be mounted on a pole. It can be attached to a wireless device through a provided extension antenna cable. ANT70-1800 is suitable for DWL-8200AP installations.

Specifications

ModelANT70-1800
Frequency Range2400 ~ 2500 MHz
4900 ~ 5875 MHz
Peak Gain14dBi (2.4GHz frequency band)
18dBi (5GHz frequency band)
PolarizationLinear
Vertical
Horizontal Half Power Beam Width30º (2.4GHz frequency band)
15º (5GHz frequency band)
Vertical Half Power Beam Width30º (2.4GHz frequency band)
15º (5GHz frequency band)
Front to Back Ratio15dB
Downtilt
Power Handling10W
Impedance50Ω
ConnectorN Jack (built-in)
Mounting TypePole
Survival Wind Speed216 km/hr
Operating Temperature40 ~ 80°C
MaterialABS, UV resistant
Weight0.4 kg
Dimensions200 (L) x 218 (W) x 50 (H) mm

- Bảo hành 12 tháng.
