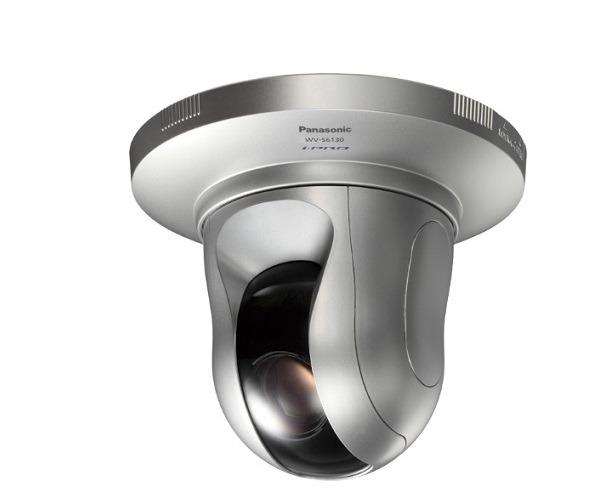

Camera IP Speed Dome 3.0 Megapixel PANASONIC WV-S6130
- Cảm biến hình ảnh: Approx. 1/2.9 type MOS image sensor.
- Độ phân giải camera ip: 3.0 Megapixel.
- Tốc độ khung hình: Lên đến 60 fps.
- Ống kính: 4.0 mm – 84.6 mm.
- Độ nhạy sáng tối thiểu: Color: 0.015lx, BW: 0.006lx.
- Chuẩn nén hình ảnh: H.265/ H.264/ JPEG.
- Nguồn điện:
+ DC 12V/1A, Approx. 12W;
+ PoE (IEEE802.3af) DC 48V/ 250 mA, Approx. 12W (Class0 device).
Đặc tính kỹ thuật
| Model | WV-S6130 |
| Camera | |
| Image Sensor | Approx. 1/2.9 type MOS image sensor |
| Minimum Illumination | - Color: 0.015 lx, BW: 0.006 lx (F1.6, Maximum shutter: Off (1/30 s), AGC: 11) - Color: 0.001 lx, BW: 0.0004 lx (F1.6, Maximum shutter: max. 16/30s, AGC: 11) |
| Intelligent Auto | On/ Off |
| Shutter Speed | 1/30 Fix to 1/10000 Fix *1/30 Fix to 2/120 Fix is available during 30 fps mode only. *1/60 Fix is available during 60 fps mode only. |
| Super Dynamic | On / Off, the level can be set in the range of 0 to 31. |
| Dynamic Range | 144 dB (Super Dynamic: On) |
| Image Settings | Gain (AGC), White balance |
| Image Compensation | Adaptive black stretch, Back light compensation (BLC), Fog compensation, High light compensation (HLC), Digital noise reduction |
| Color/BW (ICR) | Off / On/ Auto1 (Normal)/ Auto2 (IR Light)/ Auto3 (SCC) |
| Video Motion Detection (VMD) | On/ Off, 4 areas available |
| Intelligent VMD (i-VMD) | Type4 *Bundled License |
| Stabilizer | On/ Off (available only in the 30 fps mode) |
| Privacy Zone | Filling/ Pixelate/ Off (up to 32 zones available) |
| Camera Title (OSD) | On/ Off Up to 20 characters (alphanumeric characters, marks) |
| Lens | |
| Zoom Ratio | 21x Optical 31x HD Extra Optical Zoom (when resolution is 1280x720) |
| Digital (electronic) zoom | 16x |
| Focal length | 4.0 mm – 84.6 mm {5/32 inches – 3 -11/32 inches} |
| Maximum Aperture Ratio | 1 : 1.6 (WIDE) – 1 : 4.5 (TELE) |
| Focus range | 1.5 m {4ft 11- 1/16 inches} – ∞ |
| Angular Field of view | - [16 : 9 mode] Horizontal: 3.5° (TELE) – 74° (WIDE) Vertical: 2.0° (TELE) – 42° (WIDE) - [4 : 3 mode] Horizontal: 3.0° (TELE) – 61° (WIDE) Vertical: 2.3° (TELE) – 46° (WIDE) |
| Pan/tilt | |
| Panning Range | 0° – 350° |
| Panning Speed | Manual: Approx. 0.5°/s – 100°/s Preset: Up to approx. 300°/s |
| Tilting Range | Operational range: –30 ° – 90 ° (level – downward) |
| Tilting Speed | Manual: Approx. 0.5°/s – 100°/s Preset: Up to approx. 100°/s |
| Preset Positions | 256 positions |
| Auto Mode | Auto track/ Auto pan/ Preset sequence/ Patrol |
| Self Return | 10 s/ 20 s/ 30 s/ 1 min/ 2 min/ 3 min/ 5 min/ 10 min/ 20 min/ 30 min/ 60 min |
| Browser GUI | |
| Camera Control | Pan/Tilt, Zoom, Focus, Auto mode, Brightness, Preset, AUX, Rec. on SD, Log, Viewer software |
| Audio | - Mic (Line) Input: On/ Off Volume adjustment : Low/ Middle/ High - Audio Output: On/ Off Volume adjustment : Low / Middle / High |
| GUI/Setup Menu Language | English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese |
| Network | |
| Network IF | 10Base-T/ 100Base-TX, RJ45 connector |
| Resolution H.265/ H.264/ JPEG (MJPEG) | - 2 Megapixel [16 : 9] (30/60 fps) 1920×1080/ 1280×720/ 640×360/ 320×180 - 3 Megapixel [4 : 3] (30 fps) 2048×1536*/ 1280×960/ 800×600/ VGA/ 400×300/ QVGA |
| H.265/H.264 | - Transmission Mode: Constant bit rate/ VBR/ Frame rate/ Best effort - Transmission Type: Unicast/ Multicast |
| JPEG | - Image Quality: 10 steps |
| Smart Coding | - Smart Facial Coding : On(Smart Facial Coding)/ On(AUTO VIQS)/ Off * Smart Facial Coding is only available with Stream(1) GOP(Group of pictures) control: On(Advanced)*/ On(Low)/ On(Mid)/ Off * On(Advanced) is only available with H.265. |
| Audio Compression | G.726 (ADPCM): 16 kbps/ 32 kbps, G.711: 64 kbps, AAC-LC: 64 kbps / 96 kbps/ 128 kbps |
| Audio transmission mode | Off / Mic (Line) input/ Audio output/ Interactive (Half duplex)/ Interactive (Full duplex) |
| Supported Protocol | - IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, RTP, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, MLD, ICMP, ARP, IEEE 802.1X, DiffServ - IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ |
| Maximum concurrent access number | Up to 14 users (Depends on network conditions) |
| SDXC/SDHC/SD Memory Card (Option) | - H.265 / H.264 recording: Manual REC/ Alarm REC (Pre/Post)/ Schedule REC/ Backup upon network failure - JPEG recording: Manual REC/ Alarm REC (Pre/Post)/ Backup upon network failure - Compatible SDXC/SDHC/SD Memory Card: Panasonic 2 GB, 4 GB*, 8 GB*, 16 GB*, 32 GB*, 64 GB**, 128 GB** 256 GB** model *SDHC card, ** SDXC card (except miniSD card and microSD card) |
| Mobile Terminal Compatibility | iPad/ iPhone, Android mobile terminals |
| Alarm | |
| Alarm Source | 3 terminals input, VMD alarm, Command alarm, Audio detection alarm, Auto track alarm |
| Alarm Actions | SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification, Indication on browser, FTP image transfer, Panasonic protocol output |
| Input/Output | |
| Monitor Output (for confirmation) | VBS: 1.0 V [p-p]/ 75 Ω, composite, ø3.5 mm mini jack An NTSC or PAL signal can be outputted from camera |
| Audio Input | ø3.5 mm stereo mini jack (monaural input) Input impedance: Approx. 2 kΩ (unbalanced) (Applicable microphone: Plug-in power type) Supply voltage: 4.0 V ±0.5 V |
| Audio Output | ø3.5 mm stereo mini jack (monaural output) Output impedance: Approx. 600 Ω (unbalanced) |
| External I/O Terminals | ALARM IN 1 (Black & white input, Auto time adjustment input) (x1), ALARM IN 2 (ALARM OUT) (x1), ALARM IN 3 (AUX OUT) (x1) |
| General | |
| Safety | UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1 |
| EMC | FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55024 |
| Power Source and Power Consumption | DC 12V/1 A, Approx. 12W PoE (IEEE802.3af) DC 48V/250mA, Approx. 12W (Class0 device) |
| Ambient Operating Temperature | -10°C to +50°C {14°F to 122°F} (Ceiling/ Camera mount bracket) -10°C to +40°C {14°F to 104°F} (Desktop/ Tripod) |
| Ambient Operating Humidity | 10 to 90% (no condensation) |
| Dimensions | Including the decorative cover ø185 mm × 157 mm (H) {ø7-9/32 inches × 6-3/16 inches (H)} Excluding the decorative cover(place the camera upside-down) ø115 mm × 155 mm (H) {ø4-17/32 inches × 6-3/32 inches (H)} |
| Mass (approx.) | Approx. 1.1 kg (2.43 lbs) Including Camera mount bracket, decorative cover: Approx. 200g {0.44 lbs} |
| Finish | Camera: PMMA resin, Fine silver Decorative cover: PC/ ABS resin, Fine silver |
- Xuất xứ: Trung Quốc.
- Bảo hành: 12 tháng.
