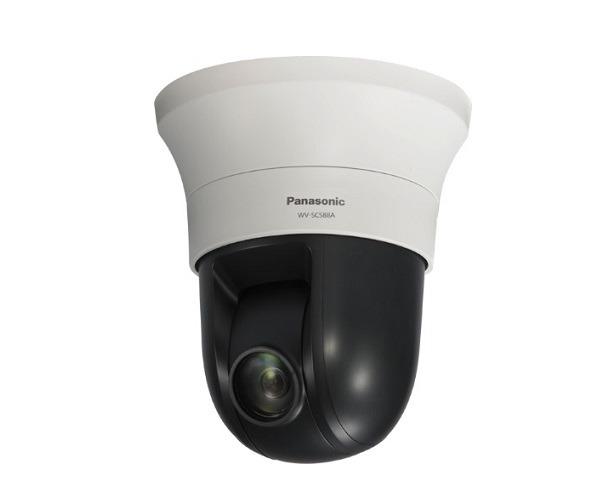

Camera IP Speed Dome 2.0 Megapixel PANASONIC WV-SC588A
- Cảm biến hình ảnh: Approx. 1/3 type MOS image sensor.
- Độ phân giải camera ip: 2.0 Megapixel.
- Tốc độ khung hình: Lên đến 30 fps.
- Ống kính: 4.3 mm - 129.0 mm.
- Độ nhạy sáng tối thiểu: Color: 0.15lx, BW: 0.018lx.
- Chuẩn nén hình ảnh: H.264/ JPEG.
- Nguồn điện:
+ DC power supply: 12 VDC;
+ PoE (IEEE802.3af compliant): 48 VDC.
Đặc tính kỹ thuật
| Model | WV-SC588A |
| Camera | |
| Image Sensor | Approx. 1/3 type MOS image sensor |
| Scanning Mode | Progressive scan |
| Scanning Area | 5.35 mm(H) x 3.34 mm(V) [7/32 inches(H) x 1/8 inches(V)] |
| Minimum Illumination | Color: 0.15 lx, BW: 0.018 lx (F1.6, Auto slow shutter: Off (1/30s), Gain:On(High)) Color: 0.009 lx, BW 0.001 lx (F1.6, Auto slow shutter: Max. 16/30s, Gain:On(High)) |
| White Balance | AWC (2,000 - 10,000 K), ATW1 (2,700 - 6,000 K), ATW2 (2,000 - 6,000 K) |
| Light Control Mode | Outdoor scene: Automatic integration of ALC and ELC Indoor scene [50 Hz]: Automatic integration of ALC and ELC (up to 1/100 s) Indoor scene [60 Hz]: Automatic integration of ALC and ELC (up to 1/120 s) Fix shutter |
| Shutter Speed | Off (1/30), 3/100, 3/120, 2/100, 2/120, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 |
| Super Dynamic | On/ Off |
| Face Super Dynamic | On/ Off |
| Dynamic Range | 105 dB typical (Super Dynamic: On, Light Control mode: Indoor) *Theoretical value. Conventional measuring method: 52 dB |
| Adaptive Black Stretch | On/ Off |
| Fog compensation | On/ Off (Super Dynamic and Adaptive black stretch: Off) |
| Gain (AGC) | On (High)/ On (Mid)/ On (Low)/ Off |
| Auto slow shutter | Off (1/30 s), max. 2/30 s, max. 4/30 s, max. 6/30 s, max. 10/30 s, max. 16/30 s |
| Day & Night (ICR) | Mode: AUTO1/ AUTO2/ AUTO3/ On/ Off, Level: High/ Low, with external control |
| Digital Noise Reduction | High/ Low |
| Video Motion Detection | 4 areas, Sensitivity: 15 steps, Detection size: 10 steps |
| Privacy Zone | Gray/ Mosaic/ Off (up to 32 zones available) |
| VIQS | On/ Off Up to 2 zones at preset position 1-8 and except preset |
| Auto Image Stabilizer | On/ Off |
| Camera Title (OSD) | On/ Off Up to 20 characters (alphanumeric characters, marks) |
| Focus distance | Limited {around 1.5m(4.9 ft)}/ Unlimited |
| Lens | |
| Focal Length | 4.3 mm to 129.0 mm {3/16 inches - 5-3/32 inches} |
| Zoom Ratio | 30x/ 90x with extra optical zoom (at 640 x 360) |
| Digital (Electrical) Zoom | 12x (Max. 1080x combined with extra optical zoom at 640 x 360) |
| Angular Field of View | H: 2.3° (TELE) - 64° (WIDE), V: 1.3° (TELE) - 38° (WIDE) ([16:9] mode) H: 1.7° (TELE) - 46° (WIDE), V: 1.3° (TELE) - 38° (WIDE) ([4:3]mode) |
| Maximum Aperture Ratio | 1 : 1.6 (WIDE) - 4.7 (TELE) |
| Focusing Range | 2.0 m - ∞ |
| Aperture Range | F1.6 - Close |
| Pan and Tilt | |
| Panning Range | 360° endless |
| Panning Speed | Manual: approx. 0.065°/s - 120°/s, Up to 256 steps (depending on the controller) Preset: up to approx. 300°/s |
| Tilting Range | -25° to 205° (upward-level-downward) Selectable tilting angle: 10 °/ 5 °/ 3 °/ 0 °/ -3 °/ -5 °/ -10 °/ -15 °/ -20 °/ -25 ° |
| Tilting Speed | Manual: approx. 0.065°/s to 120°/s, Up to 256 steps (depending on the controller) Preset: up to approx. 300°/s |
| Proportional Pan/Tilt Control | Yes |
| Number of Preset Positions | 256 |
| Auto Mode | Auto track/ Auto pan/ Preset sequence/ 360 map-shot/ Patrol |
| Image Hold | On/ Off |
| Camera position display | Off/ Pan-Tilt degree Zoom ratio display/ Direction display |
| Self Return | 10 s / 20 s / 30 s / 1 min / 2 min / 3 min / 5 min / 10 min / 20 min / 30 min / 60 min |
| Map Shot | 360° map shot/ preset map shot |
| Browser GUI | |
| Camera Control | Pan/Tilt (256 steps), Zoom, Focus, Click centering, Drag zoom, Iris, Preset position call and program, Auto mode |
| Display Mode | Spot, Quad: Image from 16 cameras can be displayed in 4 different Quad screens or 16 split screen (JPEG only). 20 characters camera title available. |
| Camera Title | Up to 20 alphanumeric characters |
| Clock Display | Time: 12H/24H, Date: 5 formats on the browser, Summer time (Manual) |
| Alarm Control | Reset |
| One Shot Capture | A still picture will be displayed on a newly opened window. |
| Audio | - Mic (Line) Input: On/ Off Volume adjustment: Low/ Middle/ High - Audio Output: On/ Off Volume adjustment: Low/ Middle/ High |
| SD Memory Data Download | Still or motion Images recorded in the SDXC/SDHC/SD memory card can be downloaded |
| GUI/Setup Menu Language | English/ Italian/ French/ German/ Spanish/ Portuguese/ Russian/ Chinese/ Japanese |
| System Log | Up to 100 (Internal) Up to 4,000 (SDXC/SDHC/SD memory when the recording format is set to JPEG.) error logs |
| Supported OS | Microsoft® Windows® 10, Microsoft® Windows® 8.1, Microsoft® Windows® 8, Microsoft® Windows® 7, Microsoft® Windows Vista® |
| Supported Browser | Windows® Internet Explorer® 11 (32 bit), Windows® Internet Explorer® 10 (32 bit), Windows® Internet Explorer® 9 (32 bit),Windows® Internet Explorer® 8 (32 bit), Windows® Internet Explorer® 7 (32 bit) |
| Network | |
| Network IF | 10Base-T/ 100Base-TX, RJ45 connector |
| Image Resolution H.264/ JPEG (MJPEG) | - 2 Megapixel [16 : 9](30 fps): 1,920 x 1,080/ 640 x 360/ 320 x 180 - 1.3 Megapixel [16 : 9](30 fps): 1,280 x 720/ 640 x 360/ 320 x 180 - 1.3 Mega pixel [4 : 3](30 fps): 1,280 x 960/ VGA(640 x 480)/ QVGA 320 x 240) |
| H.264 | - Transmission Mode: Constant bit rate/ Variable bit rate/ Frame rate priority/ Best effort/ Advanced VBR - Frame Rate: 1 / 3 / 5 / 7.5 / 10 / 12 / 15 / 20 / 30 fps - Bit Rate/ Client: 64/ 128/ 256/ 38 / 512/ 768/ 1,024/ 1,536/ 2,048/ 3,072/ 4,096/ 6,144/ 8,192/ 10,240/ 12,288/ 14,336 kbps - Image Quality: Low/ Normal/ Fine - Smart Coding mode: On (Low/ Mid/ High)/ Off (Only when 'Variable bit rate' is selected.) - Refresh Interval: 0.2 / 0.25 / 0.33 / 0.5 / 1 / 2 / 3 / 4 / 5 s - Transmission Type: Unicast/ Multicast |
| JPEG | - Image Quality: 0 SUPER FINE / 1 FINE/ 2 / 3 / 4 / 5 NORMAL / 6 / 7 / 8 / 9 LOW (10 steps: 0-9) - Refresh Interval: 0.1 fps to 30 fps - Transmission Type: Pull/ Push |
| Audio Compression | G.726 (ADPCM) 32 kbps/ 16 kbps, G.711 64 kbps AAC |
| Audio Mode | Off / Mic (Line) input/ Audio output/ Interactive (Half duplex)/ Interactive (Full duplex) |
| Authentication for Audio | Level 1 only/ Level 2 higher/ All users |
| Total Bit Rate | 64/ 128/ 256/ 384/ 512/ 768/ 1,024/ 2,048/ 4,096/ 8,192 kbps/ Unlimited |
| Supported Protocol | - IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, RTP, FTP, SMTP, DNS, NTP, SNMP, DHCPv6 , ICMP, ARP - IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP,FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP |
| FTP Client | Alarm image transmission, FTP periodic transmission (When the FTP transmission is failed, backup on an optional SDXC/SDHC/SD memory card is available.) |
| No. of Simultaneous Users | Up to 14 users (Depends on network conditions) |
| SDXC/SDHC/SD Memory Card (Option) | - H.264 recording (Audio recording is enable): Manual REC/ Alarm REC (Pre/Post)/ Schedule REC/ Backup upon network failure - JPEG recording: Manual REC/ Alarm REC (Pre/Post)/ Backup upon network failure - Compatible SD (SDHC/SDXC) card: Panasonic 2 GB, 4 GB*, 8 GB*, 16 GB*, 32 GB*, 64 GB**, 128 GB** model *SDHC card, ** SDXC card (except miniSD card and microSD card |
| Cellular Phone Compatibility | JPEG image, panning/ tilting/ zoom/ focus control, AUX control (by access level) |
| Mobile Terminal Compatibility | iPad, iPhone, iPod touch(iOS 4.2.1 or later) Android mobile terminals |
| Alarm | |
| Alarm Source | 3 terminals input, VMD, Command alarm, Audio detection |
| Alarm Actions | SDXC/SDHC/SD memory recording, E-mail notification, Indication on browser, FTP image transfer, Panasonic protocol output |
| Alarm Log | With SDXC/ SDHC/ SD memory card: 5,000 logs, without SDXC/ SDHC/ SD memory card: 1,000 logs |
| Schedule | Alarm/ VMD/ Access permission/ H.264 recording/ Audio detection |
| Input/Output | |
| Monitor Output (for adjustment) | VBS: 1.0V[p-p] / 75Ω, NTSC / PAL composite, ø3.5 mm monaural mini jack |
| Microphone/Line Input | MIC IN and Line IN are selectable. ø3.5 mm stereo mini jack (monaural input) (Applicable microphone: Plug-in power type) Supply voltage: 2.5 V ±0.5 V Input impedance: approx. 2 kΩ |
| Audio Output | ø3.5 mm stereo mini jack (monaural output) Line level |
| External I/O Terminals | ALARM IN 1 (DAY/NIGHT IN), ALARM IN 2 (ALARM OUT), ALARM IN 3 (AUX OUT) |
| General | |
| Safety/EMC Standard | UL (UL60950-1), C-UL (CAN/CSA C22.2 No.60950-1), CE, IEC60950-1 FCC Part15 Class A, ICES-003 Class A, EN55022 Class B, EN55024 |
| Power Source and Power Consumption | DC power supply: 12 VDC/ 1.0A/ 12W PoE (IEEE802.3af compliant): 48 VDC/ 250 mA/ Approx. 12W (Class 0 device) *FOR UL LISTED MODEL(S), ONLY CONNECT 12 V DC CLASS 2 POWER SUPPLY (UL 1310/CSA 223) or LIMITED POWER SOURCE (IEC/EN/UL/CSA 60950-1). |
| Ambient Operating Temperature | PoE: -10°C to +55°C (14 °F to 131 °F) |
| Ambient Operating Humidity | 10% to 90% (no condensation) |
| Dimensions | ø185 mm x 211 mm (H) {ø7-9/32 inches x 8-5/16 inches (H)} (including the decorative covers) |
| Mass (approx.) | Approx. 1.5 kg {3.31 lbs} |
| Finish | Camera: ABS resin (Coating color: Black) Decorative cover: ABS resin (Resin color: Sail white) |
- Xuất xứ: Trung Quốc.
- Bảo hành: 12 tháng.
