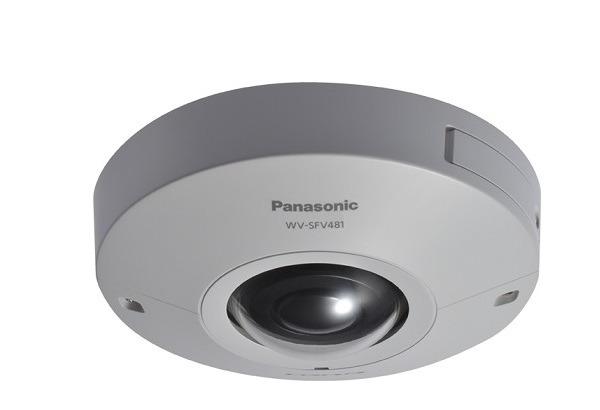

Camera IP Dome 9.0 Megapixel PANASONIC WV-SFV481
- Cảm biến hình ảnh: 1/2 type MOS image sensor, Built-in primary color filter.
- Độ phân giải camera ip: 9.0 Megapixel.
- Tốc độ khung hình: Lên đến 30 fps.
- Ống kính: 1.38 mm.
- Độ nhạy sáng tối thiểu: Color: 0.3lx, BW: 0.04lx.
- Chuẩn nén hình ảnh: H.264/ JPEG.
- Tiêu chuẩn chống bụi và nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
- Tiêu chuẩn chống va đập: IK10.
- Nguồn điện:
+ DC 12V, PoE (IEEE802.3af compliant)/ DC12V: 910 mA/ Approx. 10.9 W.
+ PoE DC 48V: 200 mA/ Approx. 9.6W (Class 0 device).
Đặc tính kỹ thuật
| Model | WV-SFV481 |
| Camera | |
| Image Sensor | 1/2 type MOS image sensor, Built-in primary color filter |
| Scanning Mode | Progressive |
| Scanning Area | 5.54 mm(H) × 5.54mm (V) {7/32 inches (H) × 7/32 inches (V)} |
| Minimum Illumination | - Color: 0.3 lx (F1.9, Maximum shutter: Off (1/30 s), AGC: High) - Color: 0.02 lx (F1.9, Maximum shutter: max. 16/30 s, AGC: High) - BW: 0.04 lx (F1.9, Maximum shutter: Off (1/30 s), AGC: High) - BW: 0.003 lx(F1.9, Maximum shutter : max. 16/30 s, AGC: High) |
| White Balance | AWC (2,000 - 10,000 K), ATW1 (2,700 - 6,000 K), ATW2 (2,000 - 6,000 K) |
| Light Control Mode | Indoor scene (50 Hz/ 60 Hz)/ ELC |
| Maximum shutter | max. 1/10000s, max. 1/4000s, max. 1/2000s, max. 1/1000s, max. 1/500s, max. 1/250s, max. 1/120s, max. 1/100s, max. 2/120s, max. 2/100s, max. 3/120s, max. 3/100s, max. 1/30s, max. 2/30s, max. 4/30s, max. 6/30s, max. 10/30s, max. 16/30s |
| Wide dynamic range | On/ Off |
| Adaptive Black Stretch | On/ Off (only when Wide Dynamic range: Off) |
| AGC | On (High)/ On (Mid)/ On (Low)/ Off |
| Day/Night (ICR) | Off/ On/ Auto1 (Normal)/ Auto2 (IR Light)/ Auto3 (SCC) |
| Digital Noise Reduction | High/ Low |
| Video Motion Detection | On/ Off, 4 areas available |
| Number of the preset positions | 16 Preset can only be used when the image type is Quad PTZ or Single PTZ. |
| Auto mode | Auto pan/ Preset sequence Auto mode can only be used when the image type is Quad PTZ or Single PTZ. |
| Self return | 10s/ 20s/ 30s / 1 min/ 2 min/ 3 mi / 5 min/ 10 min/ 20 min/ 30 min/ 60 min Self return can only be used when the image type is Quad PTZ or Single PTZ. |
| Privacy Zone | On/ Off (up to 8 zones available) |
| VIQS | On/ Off (up to 8 zones) Only for sheye image |
| Camera Title (OSD | On/ Off Up to 20 characters (alphanumeric characters, marks) * You can specify characters to be displayed on each of the four screens when “Quad streams” is selected. |
| Back focus | Auto back focus/ Focus/ Adjusting method (Auto/ Preset/ Fix) |
| Video analytics | Optional Alarm: Intruder detection, Object detection, Cross line detection, Loitering detection, Scene change detection Others: Heat-map, People Counting, MOR(Moving Object Remover) * Alarm and others don't work as the same time. |
| Rotation | Mechanical: -45° to 45°, electrical: Panorama/Double Panorama: 90°,180°, 270° |
| Lens | |
| Focal Length | 1.38 mm {1/16 inches} |
| Angular Field of View | Horizontal: 180° Vertical: 180° |
| Maximum Aperture Ratio | 1 : 1.9 |
| Adjusting angle | ±45° |
| Image rotation | Mechanical Image rotation, about every 3.3° |
| Browser GUI | |
| Camera Control | Brightness, AUX On/ Off |
| Display Mode | Spot, Quad: Image from 16 cameras can be displayed in 4 different Quad screens or 16 split screen (JPEG only). 20 characters camera title available. |
| Zoom | electronic zoom |
| Camera Title | Up to 20 alphanumeric characters |
| Clock Display | Time: 12H/24H, Date: 5 formats on the browser, Summer time (Manual) |
| Alarm Control | Reset |
| One Shot Capture | A still picture will be displayed on a newly opened window. |
| Audio | - Mic (Line) Input: On/ Off Volume adjustment: Low/ Middle/ High - Audio Output: On/ Off Volume adjustment: Low/ Middle/ High |
| SD Memory Data Download | Still or motion Images recorded in the SDXC/SDHC/SD memory card can be downloaded. |
| GUI/Setup Menu Language | English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese |
| System Log | Up to 100 (Internal), Up to 4,000 (SDXC/SDHC/SD memory when the recording format is set to JPEG.) error logs |
| Supported OS | Microsoft® Windows® 8.1 Microsoft® Windows® 8 Microsoft® Windows® 7 Microsoft® Windows Vista® |
| Supported Browser | Windows® Internet Explorer® 11(32 bit) Windows® Internet Explorer® 10 (32 bit) Windows® Internet Explorer® 9 (32 bit) Windows® Internet Explorer® 8 (32 bit) Windows® Internet Explorer® 7 (32 bit) |
| Network | |
| Network IF | 10Base-T / 100Base-TX, RJ45 connector |
| Audio Compression | G.726 (ADPCM) 32 kbps/16 kbps, G.711 64 kbps/ AAC-LC*4 64kbps/ 96kbps/ 128kbps |
| Total Bit Rate | Unlimited/ 64/ 128/ 256/ 384/ 512/ 768/ 1,024/ 2,048/ 4,096/ 8,192 kbps |
| Supported Protocol | - IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, RTP, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, MLD, ICMP, ARP - IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP |
| FTP Client | Alarm image transmission, FTP periodic transmission (When the FTP transmission is failed, backup on an optional SD memory card is available.) |
| No. of Simultaneous Users | Up to 14 users (Depends on network conditions) |
| SDXC/SDHC/SD Memory Card (Option) | SD (SDHC/SDXC) card: Panasonic 2 GB, 4 GB*, 8 GB*, 16 GB*, 32 GB*, 64 GB** model *SDHC card, ** SDXC card (except miniSD card and microSD card) |
| Cellular Phone Compatibility | JPEG image, AUX control (by access level) |
| Mobile Terminal Compatibility | iPad, iPhone, iPod touch (iOS 4.2.1 or later) Android mobile terminals |
| Alarm | |
| Alarm Source | 3 terminals input, VMD, Command alarm |
| Alarm Actions | SDXC/SDHC/SD memory recording, E-mail noti cation, HTTP alarm noti cation Indication on browser, FTP image transfer, Panasonic protocol output |
| Alarm Log | With SDXC/SDHC/SD memory card: Up to 50,000 logs for each SD memory card |
| Schedule | Alarm/ VMD/ Access permission/ H.264 recording/ Scene file |
| Input/Output | |
| Monitor output | VBS: 1.0 V [p-p]/75 Ω, composite, ø3.5 mm mini jack (monaural) An NTSC or PAL monitor can be connected to the camera (the monitor type can be changed by the software). Audio out or monitor out can be selected for the audio/ monitor output plug |
| Microphone/Line Input | - ø3.5 mm stereo mini jack, Input impedance: Approx. 2 kΩ - For microphone input: Recommended applicable microphone: Plug-in power type Supply voltage: 2.5 V ±0.5 V Recommended sensitivity of microphone: -48 dB ±3 dB (0 dB=1 V/Pa, 1 kHz) - For line input: Input level: Approx. –10 dBV |
| Audio Output | ø3.5 mm stereo mini jack Output impedance: Approx. 600 Ω (unbalanced) Output level: –20 dBV |
| External I/O Terminals | ALARM IN1 (DAY/NIGHT IN), ALARM IN2 (ALARM OUT), ALARM IN3 (AUX OUT) |
| General | |
| Mounting method | Ceiling/ Wall |
| Safety | UL (UL60950-1), C-UL (CAN/CSA C22.2 No.60950-1), CE, IEC60950-1 |
| EMS | FCC (Part15 ClassA), ICES003 ClassA, EN55022 ClassB, EN55024 |
| Power Source and Power Consumption | DC 12V, PoE (IEEE802.3af compliant)/ DC12V: 910 mA/ Approx. 10.9 W PoE DC 48V: 200 mA/ Approx. 9.6 W (Class 0 device) |
| Ambient Operating Temperature | -40 °C to +50 °C (-40 °F to 122 °F) |
| Ambient Operating Humidity | 10% to 90 % (no condensation) |
| Water and Dust Resistance | IP66, IEC60529 measuring standard compatible, Type 4X(UL50), NEMA 4X compliant |
| Shock Resistance | Compliant with 50J (IEC 60068-2-75 / IK10 (IEC 62262) |
| Railway Application | EN50155-T3, EN50121, DIN5510 |
| Dimensions | - When using the attachment plate : ø154 mm × 60.5 mm (H) {ø6-1/16 inches × 2-3/8 inches (H)} Dome radius 35 mm {1-3/8 inches} - When using the base bracket: ø164 mm × 96.5 mm (H) {ø6-15/32 inches × 3-13/16 inches (H)} Dome radius 35 mm {1-3/8 inches} |
| Mass (approx.) | When using the attachment plate: Approx. 860 g {1.90 lbs} When using the base bracket: Approx. 1.3 kg {2.87 lbs} |
| Finish | Main body: Aluminum die cast, light gray Dome section: Clear polycarbonate resin |
- Xuất xứ: Trung Quốc.
- Bảo hành: 12 tháng.
