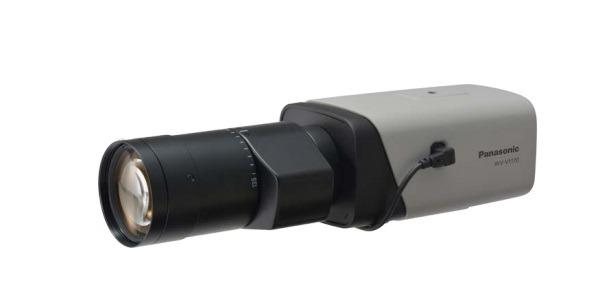

Camera IP 12.0 Megapixel PANASONIC WV-V1170
- Cảm biến hình ảnh: Approx. 1/1.7 type CMOS image sensor.
- Độ phân giải camera ip: 12.0 Megapixel.
- Tốc độ khung hình: 30 fps.
- Độ nhạy sáng tối thiểu: 0.2 lx/ F1.4 (color), 0.002 lx F1.4 (B/W).
- Chuẩn nén hình ảnh: H.265/ H.264/ MJPEG.
- Nhiệt độ hoạt động: -30°C to 50°C.
- Nguồn điện: 12VDC/ 24VAC và PoE.
Đặc tính kỹ thuật
| Model | WV-V1170 |
| Camera | |
| Image Sensor | Approx. 1/1.7 type CMOS image sensor |
| Minimum Illumination | 0.2 lx / F1.4 (color), 0.002 lx F1.4 (B/W) |
| Gain | Auto/ Manual |
| Back light compensation | OFF/ BLC/ HLC/ WDR |
| Shutter speed | Auto/ Manual, 1/3 sec~1/100000 sec |
| Day/ Night | Auto(ICR)/ Color/ Black & White |
| White Balance | Auto/ Natural/ Street Lam/ Outdoor/ Manual |
| Digital Noise Reduction | 3DNR ON/ OFF |
| Privacy masking | Up to 4 areas |
| Video Motion Detection | On/ Off (4 Zones, Rectangle) |
| Lens (Optional) | |
| Mount Type | C/CS-mount |
| Network | |
| Network | 10BASE-T/ 100BASE-TX, RJ45 connector |
| Resolution | 12M (4000×3000)/ 8M (3840×2160)/ 5M (2560×1920)/ 3M (2048×1536)/ 1080P (1920×1080)/ 1.3M (1280×960)/ 720P (1280×720)/ VGA (640x480)/ 640x360/ 320x240 |
| Image compression method | H.265/ H.264/ MJPEG |
| Frame Rate | 12M: 1~20 fps, Others: 1~25/30 fps |
| Protocol | IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/ IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, DDNS, FTP, QoS, 802.1x, Multicast |
| Maximum concurrent access number | 20 users (Number of sessions that can connect to cameras at the same time) |
| Compatible memory card | micro SDXC/SDHC memory card 4 to 128 GB |
| I/O Port | Alarm Input 2 channel/ Output 1 channel, RS485 1 port, RS232 serial port 1 port |
| Audio Interface | Audio IN 1 channel/ Audio OUT 1 channel, 1 Built-in microphone |
| General | |
| Power source | 12 VDC, 24V AC, PoE (IEEE802.3af compliant) |
| Power Consumption | 12 V DC/24V AC: 800mA(50/60Hz) 12V DC:1A PoE 48 V DC: 200mA (Class 0 device) |
| Ambient Operating Temperature/ Humidity | -30 °C to +50 °C {-22 °F to 122 °F} 10 % to 90 % (no condensation) |
| Dimensions | 74 mm(W) × 135 mm(H) × 65 mm (D) {2-29/32 (W) × 5-5/16 (H) x 2-19/32 (D) inches} |
| Weight (approx.) | Approx. 540 g {1.19 lbs} |
- Xuất xứ: Trung Quốc.
- Bảo hành: 12 tháng.
