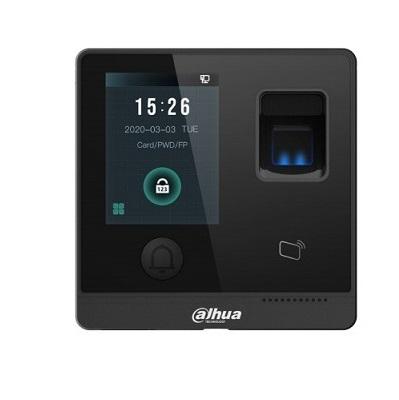

Bộ kiểm soát cửa ra vào độc lập 1 cửa DAHUA DHI-ASI1212F
- Bộ kiểm soát cửa độc lập (1 cửa).
- Với thiết kế vỏ PC + ABS và kính cho màn hình trước, phù hợp gắn trong nhà.
- Màn hình cảm ứng LCD 2.8-inch với độ phân giải 240 x 320 pixel.
- Thuật toán học sâu cho thời gian nhận dạng vân tay chỉ 1.5s.
- Hỗ trợ mở khóa bằng vân tay, mật khẩu, thẻ (thẻ IC).
- Hỗ trợ 30.000 người dùng, 30.000 thẻ, 3.000 dấu vân tay, 150.000 bản ghi.
- Hỗ trợ OSDP, TCP/IP.
- Hỗ trợ các cổng ngoại vi: RS-485, Wiegand, USB, Alarm in/out,...
- Kích thước (H×W×D): 114.5 × 114.5 × 32.5 mm.
Đặc tính kỹ thuật
| System | |
| Main Processor | Embedded processor |
| Network Protocol | IPv4, TCP, P2P |
| Button Type | Touch button |
| OSDP Protocol | Yes (only supported as a host) |
| Basic | |
| Display | 2.8 inch TFT touch screen |
| Screen Type | Capacitive screen |
| Resolution | 240(H)×320(V) |
| Voice Prompt | Yes |
| Buzzer | Yes |
| Housing Material | PC+ABS |
| Function | |
| Unlock Mode | Card/remote/password/fingerprint |
| Card Type | IC card |
| Period List | 128 |
| Holiday Period | 128 |
| Network Update | Yes |
| First Card Unlock | Yes |
| Remote Verification | Yes |
| Blacklist/Whitelist | Yes |
| Ads Broadcast | Support graphic advertisement play |
| Peripheral Card Reader | 1 RS-485, 1 Wiegand |
| Group Combination | Card/remote/password/fingerprint |
| Web Configuration on PC | Yes |
| Web Configuration on Mobile | Yes |
| Performance | |
| Card Reading Distance | 1cm - 3cm |
| Fingerprint Sensor Type | Optical fingerprint |
| Fingerprint Verification Mode | 1:N, 1:1 |
| Fingerprint Comparison Time | 1.5 s |
| Capacity | |
| User | 30,000 |
| Fingerprint | 3,000 |
| Card | 30,000 |
| Password | 30,000 |
| Record | 150,000 |
| Port | |
| RS-485 | 1 |
| Wiegand | 1 (input or output) |
| USB | 1 USB2.0 port |
| Network | One 10/100 Mbps self-adaptive network port |
| Alarm Input | 1 |
| Alarm Output | 1 |
| Alarm Linkage | Yes |
| Unlock Button | 1 |
| Door Status Detection | 1 |
| Lock Control | 1 |
| Alarm | |
| Anti-passback | Yes |
| Tamper | Yes |
| Duress | Yes |
| Door Sensor Timeout | Yes |
| Intrusion | Yes |
| Illegal Card Exceeding Threshold | Yes |
| Duress Fingerprint | Yes |
| General | |
| Power Supply | DC 12V 1A |
| Power Consumption | ≤ 4.0W (standby), ≤ 6.0W (working) |
| Dimensions (H×W×D) | 114.5 mm × 114.5 mm × 32.5 mm |
| Packing Dimensions (H×W×D) | Packing box: 187 mm ×164 mm ×72 mm |
| Protective box: 585 mm×390 mm×360 mm | |
| Operating Temperature | -10°C to +45°C (14°F to 113°F) |
| Operating Humidity | 5%RH-90%RH (no condensation) |
| Operating Environment | Indoor |
| Gross Weight | 415.0 g (0.91 lb) |
| Installation | Surface mount, flush mount, 86 case mount |
| Certifications | CE, FCC |
- Sản xuất tại Trung Quốc.
- Bảo hành: 24 tháng.
