Cáp âm thanh/ điều khiển Alantek 1-Pair 16 AWG LSZH

Part Number: 301-CI9501-00LS

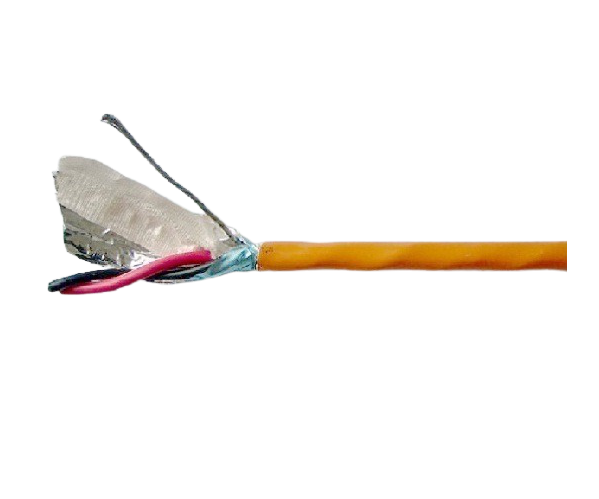

- Alantek Shielded Twisted Pair Control Cable consists of Stranded Tinned Copper Conductor with colour coded HDPE Insulation, overall cover with Aluminum Mylar Tape with minimum 25% overlap, Tinned Copper Drain Wire and Outer PVC Jacket.

- Application: Multipair Audio, Control and Instrumentation Cable for Industrial, Data, Interconnect and Analogue Audio used.

- Packaging: 500m/rl.

Specifications

- Rated temperature: 80°C.

- Good mechanical and temperature performance.

- Insulation Resistance: 10 MΩ-km (min) @ 20°C 500VDC (EIA-364-21).

- Dielectric Strength: 500VAC/1 minute no breakdown (EIA-364-20).

- Flexibility Test: No Cracking.

- Flame Test: Pass Horizontal Flame.

- Sản xuất tại Trung Quốc.
