Product Parameter | Parameter Description |
Feature | Fail Safe |
Lock Body | 270Lx30WX48H(mm) |
Magnetic Plate | 100Lx25Wx3H(mm) |
Bolt | 16(length)*16(diameter)(mm) |
Voltage | DC12V |
Start Current | 1200mA |
Standby Current | 200mA |
LED | Light on indicates locked, light off indicates unlocked |
Suitable For | Wooden door , metal door , fireproof door , glass door |
Autolock Time Delay | 0,3,6,9sec |
Signal Output | Lock signal(NO/NC/COM) |
Material | 304 stainless steel,wire draw finishing |
Induction Distance | Within 8mm |
LED | Light on indicates locked, light off indicates unlocked |
Weight | 1.6kg |

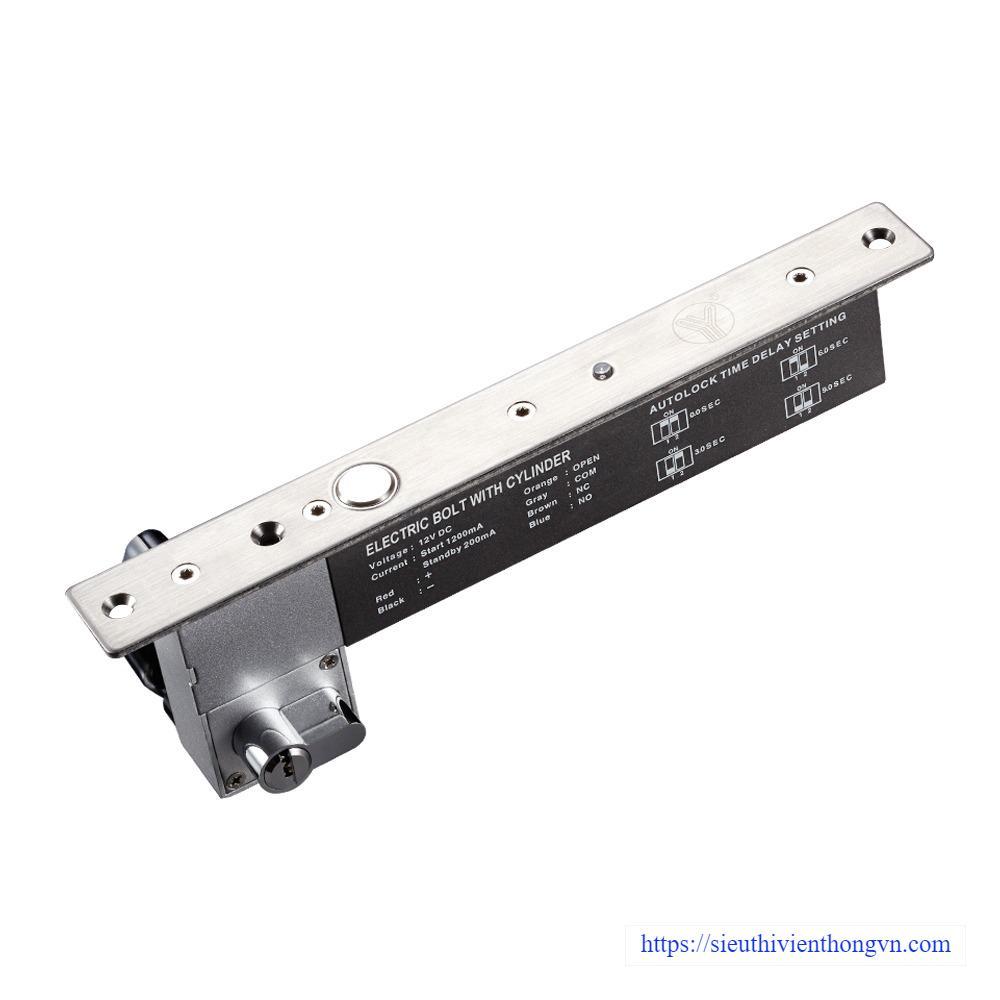

Fail Safe Electric Bolt W/Cylinder YB-600A(LED)
- 2146
- YLI
YB-600A (LED) is an all-metal construction electric bolt .with European-type cylinder and has both electric control and manual control functions.The Fail Secure is Locked when energized.The bolt of the lock adopts 304 stainless steel solid bar by CNC lathe, has 2000kg holding force. It colligates the system of Photoelectric control and Intelligent circuit design ,with the speciality of low-power consumption and anti-intrusion
Bình luận
Khóa từ cửa đơn YM-280 (LED)
Kiểm tra tải trọng Collinear 280kg, 600pound.
Điện áp kép 12 hoặc 24 VDC (tùy chọn).
Điện áp tiêu chuẩn là 12VDC khi hoàn thành.
MOV cung cấp bảo vệ ngược dòng.
Thích hợp cho cửa gỗ, cửa kính, cửa kim loại, cửa chống cháy.
LED cho biết trạng thái cửa.
Cảm biến trạng thái khóa (NO / NC / COM).
Từ tính chống dư được thiết kế.
Vật liệu cường độ cao, vỏ nhôm Anodized.
Thiết kế không bị hỏng cơ.
Tăng lực lượng nắm giữ, Nhà ở cách điện kép.
Chứng chỉ CE của Liên minh Châu Âu, Chứng chỉ MA của Văn phòng Công an Trung Quốc.
Khóa từ cửa đôi YM-280D (LED)
Collinear Load Test 280kgx2,600poundsx2.
Dual Voltage 12 or 24 VDC(optional).
The Standard Voltage is 12VDC when Finished.
MOV Provides Reverse Current Protection.
Anti-Residual Magnetism Designed.
High Strength Material,Anodized Aluminum Housing.
Design without Mechanical Failure.
Increase the holding Force,Dual Insulative Housing.
CE Certificate by European Union,MA Certificate by China Public Security Office.
