| Product Parameter | Parameter Description |
| Feature | Fail Secure |
| Lock Body | 270Lx30WX73H(mm) |
| Magnetic Plate | 100Lx25Wx2.5H(mm) |
| Bolt | 16(length)*16(diameter)(mm) |
| Voltage | DC12V |
| Start Current | 1200mA |
| Standby Current | 200mA |
| LED | Light on indicates locked, light off indicates unlocked |
| Suitable For | Wooden door , metal door , fireproof door , glass door |
| Signal Output | Lock signal NO/NC/COM(need order door signal) |
| Material | 304 stainless steel,wire draw finishing |
| Induction Distance | Within 8mm |
| LED | Light on indicates locked, light off indicates unlocked |
| Weight | 1.8kg |

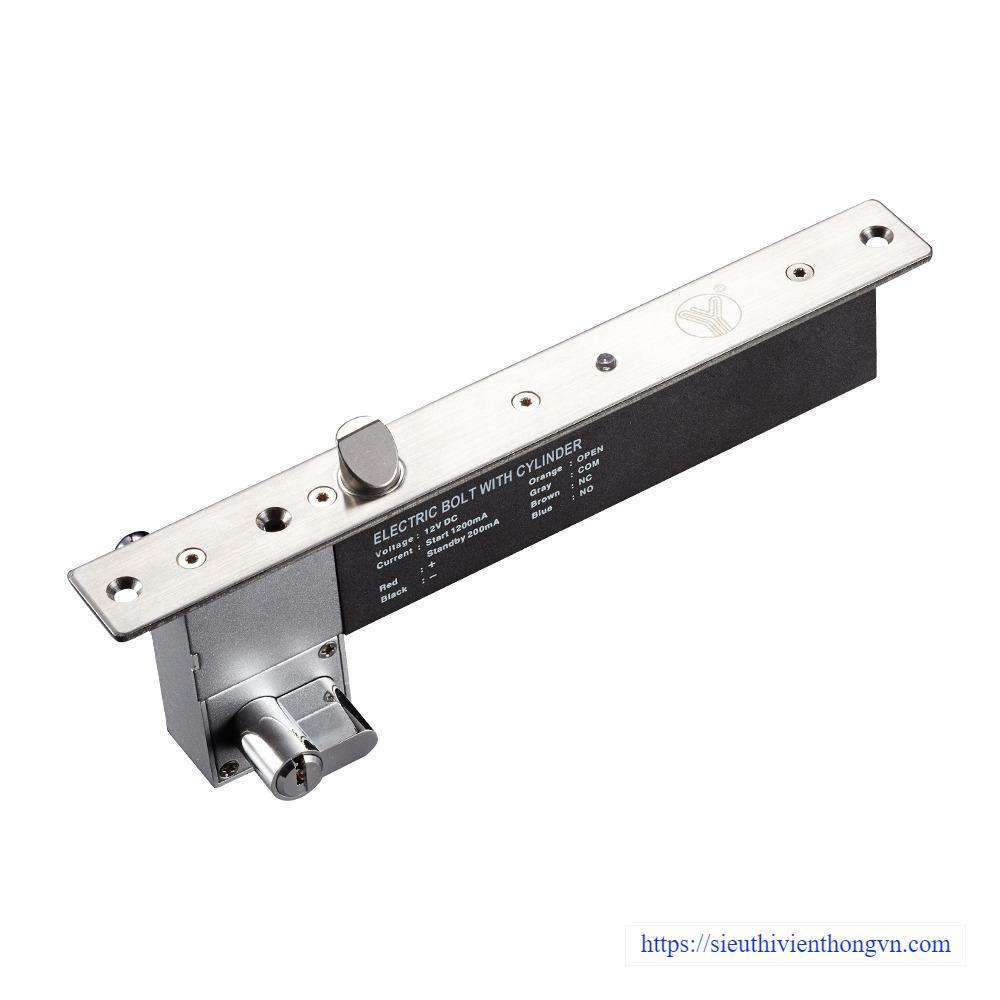

Fail Secure Electric Bolt W/Cylinder YB-630C(LED)
- 2151
- YLI
YB-630C (LED) is an all-metal construction electric bolt with latch bolt Design .with European-type cylinder and has both electric control and manual control functions. Based on the all-metal linkage parts,It can operate at the temperature of 60 ℃ or -40 ℃ .The bolt adopts special stainless steel solid bar by CNC lathe.With the verified designs of magnetic valve, control by special photoelectric , ultra-low temperature and low-power dissipation
