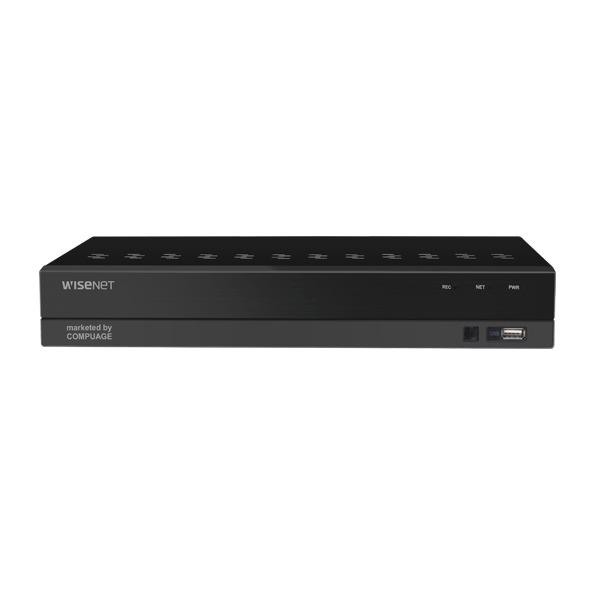

Đầu ghi hình AHD 8 kênh Hanwha Techwin WISENET ZRD-E820L/VAP
- 8CH 1080N analog + 2CH network camera recording
- AHD, TVI, CVI, CVBS analog input
- H.264 supported
- Coaxial control
- HDMI / VGA video output
- Max. 1 internal HDDs
Đặc tính kỹ thuật
| Model | ZRD-E820L/VAP |
| Display | |
| Video Input | Analog Camera: 8CH BNC, PAL type AHD (720P, 1080P), TVI (720P, 1080P), CVI (720P, 1080P), CVBS 960H(960x576) Network Camera: Max. 2CH (up to 2MP) |
| Frame Rate | Analog Camera: 200fps@960x1080,1280x720, 960x576 Total IP Camera: 15fps@1920*1080 |
| Resolution | 960x1080(1080P-Lite)/ 1280x720 (HD) / 960 x 480 (960H) |
| Multi Screen Display | 1/4/6/8/9/10/12/Auto Seq |
| Performance | |
| Operating System | Embedded Linux |
| Compression | H.264 |
| Mode | Manual, Schedule (Continuous/Event), Event (Pre/Post) |
| Event | Video Loss, Motion (Sensitivity Level 1~8), Tampering |
| Overwrite Modes | Off / On (Auto) |
| Pre-alarm | 1 ~ 10sec |
| Post-alarm | Up to 5min (10 ~ 300 sec) |
| Search & Playback | |
| Search Mode | Date/time, Event, Motion |
| Playback Function | Fast forward / backward (2x, 4x, 8x) Slow forward (1/2x, 1/4x, 1/8x) Step Forward |
| Network (IPv4) | |
| Transmission Speed | Analog Camera: 96fps@960x1080 IP Camera: 15fps@1920*1080 |
| Bandwidth | Up to 16Mbps |
| Max. Remote Users | Max 7 (admin+user) |
| Protocol Support | TCP/IP, UDP/IP, UDP |
| Monitoring | HD E-Viewer II (Client & Mobile Viewer) |
| Internal HDD | 1 SATA HDD * Support max. 6T/HDD |
| External (e-SATA Interface) | RF, AVI, MP4 |
| Interface | |
| Monitors | VGA: 1080P (Source: 960 x 1080), 720P, 1024×768 1 HDMI: 1080P (Source : 960 x 1080), 720P, 1024×768 |
| Audio Inputs/ Output | 1/1 |
| Audio Compression | G.711a |
| Remote Notification | Notification via e-mail |
| Ethernet | 1 RJ45 10/100Base-T |
| USB | 2 x USB 2.0 |
| General | |
| Input Voltage/ Current | 12V/2A DC Adaptor |
| Power Consumption | <6W |
| Operating Temperature | 0°C~+40°C |
| Dimensions (WxHxD) | 230 x 208.7 x 48 mm |
| Weight | 0.7kg |
- Hãng sản xuất: Hanwha Techwin Hàn Quốc.
- Xuất xứ: Việt Nam.
- Bảo hành: 24 tháng.
