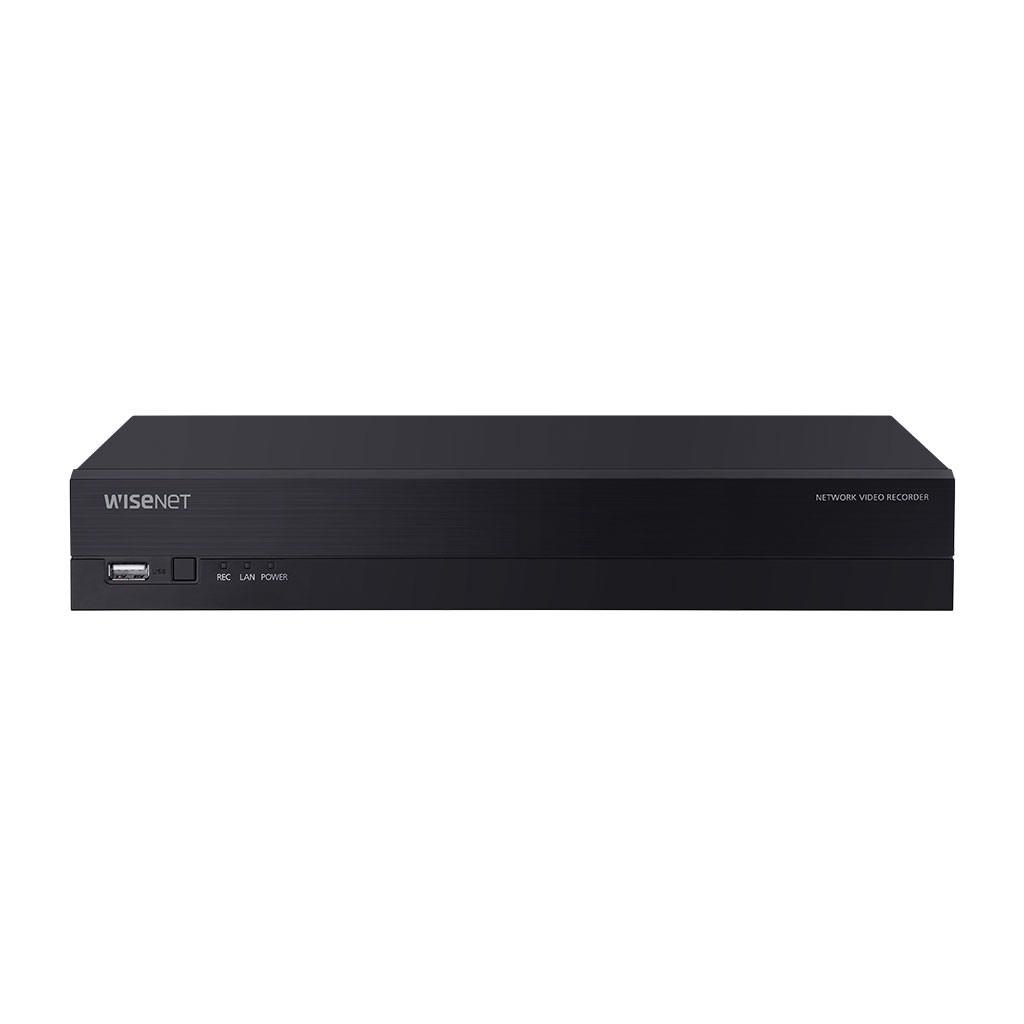

Đầu ghi hình camera AHD 4 kênh Hanwha Techwin WISENET HRX-420
- Đầu ghi hình 5 trong 1 4 kênh camera.
- Ngõ vào: AHD / HDTVI / HDCVI / CVBS / IP.
- Chuẩn nén hình ảnh: H.265, H.264, MJPEG.
- Tốc độ ghi hình: 8fps @ 8MP, 12fps @ 5MP, 30fps @ 2MP.
- Hỗ trợ truyền dữ liệu qua cáp đồng trục.
- Tìm kiếm thông minh (chỉ camera Network).
- Hỗ trợ 1 ổ cứng SATA dung lượng lưu trữ 6TB.
- 1 ngõ vào Audio, 1 ngõ ra Audio.
- Hỗ trợ tên miền miễn phí Wisenet DDNS.
- Hỗ trợ P2P (kết nối mã QR).
- Hỗ trợ âm thanh: 2 chiều.
- Nguồn điện: 12VDC.
Đặc tính kỹ thuật
| Model | HRX-420 | |
| Display | ||
| Analog camera | Inputs | 4CH (1Vp-p 75ohm, BNC) |
| Signal Type | AHD (8MP, 5MP, 4MP, 1080p, 720p), HDTVI (8MP, 5MP, 4MP, 1080p, 720p), HDCVI (5MP, 4MP, 1080p, 720p), CVBS (NTSC/PAL) | |
| Network camera | Inputs | Max. 6CH |
| Resolution | 8MP ~ CIF | |
| Protocols | SUNAPI(Wisenet), ONVIF | |
| Live | Local Display | HDMI: 3840 x 2160, 1920x1080, 1280x720 |
| VGA: 1920x1080, 1280x720 | ||
| Resolution | [Analog Camera (NTSC/PAL)] | |
| - 8MP (15/12fps), 5MP (20/12fps), MP (30/25fps), 2MP (30/25fps),1MP (30/25fps), | ||
| 960H (or 720H)(30/25fps) (per CH [Network Camera] | ||
| - Typ. 2MP(120fps) | ||
| Performance | ||
| Record | Compression | H.265, H.264, MJPEG |
| Record | Analog Camera (NTSC/ PAL) (Main Stream) 8MP 8/8fps CH, 5M 12/12fps CH, 4M 15/12fps CH, 2M 30/25fps | |
| Rate (Analog) | CH, 720p 30/25fps/CH, SD 30/25fps/CH (Sub Stream) 720p or higher : 640x360 full fps/CH, SD sugnal : upto SD fullfps/CH | |
| Recording Bandwidth | Max. 25Mbps (Analog Camera only) ~ 17Mbps (Network Camera only) | |
| Resolution | 8MP ~ CIF | |
| Mode | Manual, Schedule (Continuous/Event), Event(Pre/Post), Dual Track | |
| Event Trigger | Alarm Input | |
| Analog Camera : Video Loss, Motion Detection,Tampering | ||
| Network Camera : Camera Event (Sensor, MD, Video analytics), VA event | ||
| (Tampering, Enter / Exit, Passing, Virtual- line, (Dis)Appear, Face Detection, Audio | ||
| detection), Defocus camera event | ||
| Event Action | E-mail, PTZ preset, Alarm out, Buzzer, Monitor out | |
| Search & Play | Playback Bandwidth | Max. 32Mbps (6CH simultaneously) |
| User | Max. 4 Users (Local 1, Remote 3) | |
| Simultaneous playback | 6CH (Local Monitor) | |
| 4Ch (CMS, Wisenet Mobile), 1Ch(Web) | ||
| Fisheye Dewarping | WEB / CMS | |
| Storage | Supported HDD | Up to 6TB |
| HDD Slot | SATA 1ea (Max 6TB) | |
| Backup | File backup | BU, EXE(Include Player), AVI (Webviewer only) |
| Function | Max. 6 CH play, Date-time/title display | |
| Functions | ||
| PTZ | Control | Via GUI, Webviewer, SSM, SmartViewer, Wisenet Mobile Viewer, System Controller |
| Smart phone | Support Model | iOS, Android |
| ProtocolSupport | RTP, RTSP, HTTP, CGI (SUNAPI) | |
| Control | Live (4ch) : Multi-Profile Support | |
| Playback (4Ch Multi Playback, Max 2MP) | ||
| Event push | ||
| Redundancy | ARB | Support |
| Easy configuration | Setup Wizard (Language Date/Time, Password, Network, Auto Camera | |
| Configuration), P2P (QR code) | ||
| Coaxial Control | CVBS (Pelco-C)/ AHD/ CVI/ TVI | |
| Interface | ||
| HDMI | 1EA | |
| VGA | 1EA | |
| BNC | 4CH In / 1CH Out(Spot Output) | |
| Audio | Out (1EA, RCA, Line) | |
| Ethernet | RJ-45(10/100/1000BASE-T) | |
| Alarm | In 4EA, Out 1EA | |
| - Relay Out1(NO/NC/COM) | ||
| USB | 2EA (Front/Rear USB2.0) | |
| Serial (Protocols) | RS-485 (Samsung-T/Pelco-D/Pelco-p) for PTZ | |
| Power inlet | 1EA DC Input Jack | |
| System | ||
| System Control | Mouse, IR Remocon, Webviewer, System Controller(SPC-7000, SPC-6000, SPC2000) | |
| Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai | |
| Environmental | ||
| Operating Temperature | 0°C to +40°C(+32℉ to +104℉) | |
| Operating Humidity | 20% ~ 85% RH | |
| Certification | UL, CE, FCC, KC | |
| Electrical | ||
| Power Input | 12VDC | |
| Power Consumption | Max. 14W (6T HDD 1ea) | |
| Network | ||
| Protocol | TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), | |
| PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (ProfileS), SUNAPI(Server, Client) | ||
| DDNS | Wisenet DDNS | |
| Transmission speed | Analog Camera (NTSC/PAL) | |
| (Main Stream) 8MP 8/8fps CH, 5M 12/12fps CH, 4M 15/12fps CH, 2M 30/25fps | ||
| CH, 720p 30/25fps/CH, SD 30/25fps/CH, 720p 30/25fps/CH, SD 30/25fps/CH | ||
| (Sub Stream) 720p or higher : 640x360 full fps/CH, SD sugnal : upto SD full | ||
| fps/CH | ||
| Transmission Bandwidth | Max. 15Mbps | |
| Audio | Input/Output | 1 Line in / 1 Line out |
| Compression | G.711 (N/W Cam G.711, 726) | |
| Audio Communication | 2-way | |
| Mechanical | ||
| Color / Material | Black / Metal | |
| Dimension | 300 x 47 x 208.7mm | |
| Weight | Approx. 1.5kg | |
- Bảo hành: 24 tháng.
