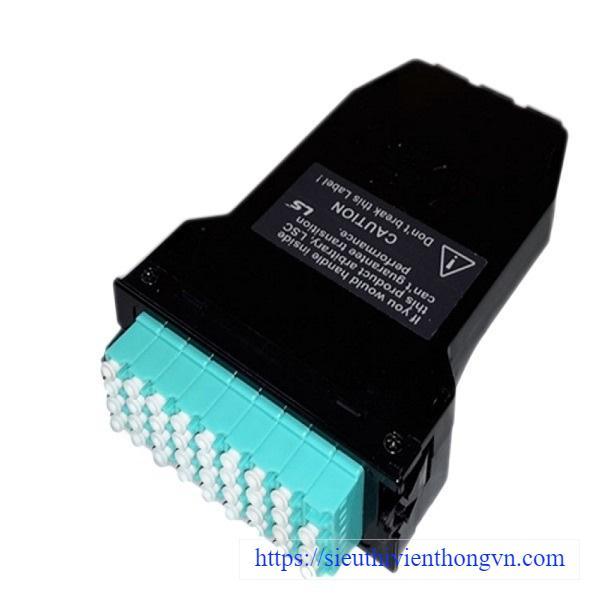

Hộp chứa đầu nối quang-Cassette Module (MCM) LS 9 đầu bốn Multimode OM3 LC

Hộp chứa đầu nối quang-Cassette Module (MCM) LS 9 đầu bốn Multimode OM3 LC

  • MS 000002141
  • LS
Giá : 16,861,000 vnđ (Đã bao gồm VAT)

Hộp chứa đầu nối quang-Cassette Module (MCM) LS 9 đầu bốn Multimode OM3 LC

Hộp chứa đầu nối quang-Cassette Module (MCM) LS 9 đầu bốn Multimode OM3 LC

- Part Number: LS-MCM-LC-4M-36-M3.

- Hộp MPO/MTP chứa 9 đầu bốn.

- Số cổng kết nối: 36 cổng.

- Đầu kết nối: LC.

- Kiểu sợi quang: Multimode OM3.

- Kết nối với 3 sợi cáp đã gia công sẵn.

Description

- The MPO/MTP Cassette Modules are installed with terminated MPO/MTP trunk cables and patch cords. The cassette includes the plastic case, adaptor plate, MPO/MTP fan-out cord and other necessary materials for the arrangement of optical fiber cables. It is installed on LS Simple Fast-NetTM Empty Panel (PPP-) and Modular FDF.

- They are pre-terminated and pre-tested in the factory with MPO/MTP fan-out cords, which guarantee the high performances.

Application

- Telecommunication network, Data Center.

- Data Processing Systems.

- LAN and WAN (IEEE 802.3ba, 100BASE-FX, 10GBASE-LX4, 10GBASE-ER/EW, 40GBASE-LR4, 100GBASE-ER4 etc.).

- Fiber Optic Test & Measurement System.

Technical

- Based on IEC 61754-7 MPO/MTP type Connector.

- Fiber types: Multi-mode.

- Insertion Loss & Return Loss is based on ANSI/TIA-568-C.3.

- MPO/MTP connector insertion loss ≤ 0.35dB (low-loss).

- LC connector insertion loss ≤ 0.2dB (SM), 0.3dB (MM).

- Class OF-300 channel support.

- Operating temperature: 0℃~70℃.

- Material: Plastic UL 94 V-2 above.

- Dimension: 112 x 149 x 37mm.

- Connection Polarity is based on ANSI/TIA-568-C.3.

- Sản xuất tại Hàn Quốc.
