Patch cord Dintek CAT.5E UTP (Part number: 1201-03xxx, dài 0,5m-1m-1,5m-2m-3m-5m)

Patch cord Dintek CAT.5E UTP (Part number: 1201-03xxx, dài 0,5m-1m-1,5m-2m-3m-5m)

  • MS 000008363
  • Dintek
Giá : 29,000 vnđ (Đã bao gồm VAT)

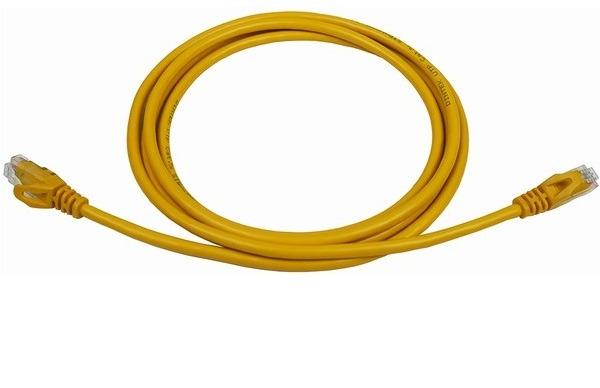

Patch cord Dintek CAT.5E UTP (Part number: 1201-03xxx, dài 0,5m-1m-1,5m-2m-3m-5m)

Patch cord Dintek CAT.5E UTP (0,5m-1m-1,5m-2m-3m-5mét)

-         Part number: 1201-03xxx.

-         Patch Cord UTP Cat.5e, 2 đầu đúc RJ45.

-         Màu: Vàng, Xám, Xanh dương.

STT

Loại Patch cord

Đơn giá

(VNĐ)

1

Patch cord Dintek CAT.5E UTP 0,5 mét

30.000

2

Patch cord Dintek CAT.5E UTP 1,0 mét

35.000

3

Patch cord Dintek CAT.5E UTP 1,5 mét

40.000

5

Patch cord Dintek CAT.5E UTP 2 mét

45.000

6

Patch cord Dintek CAT.5E UTP 3 mét

52.000

7

Patch cord Dintek CAT.5E UTP 5 mét

89.000



Features

-         24AWG stranded wire provides maximum flexibility.

-         Brilliant colors make management a snap

-         Fully tested to meet ANSI/TIA-568-C.2 category 5e requirement.

-         The various colors are available to meet TIA/EIA-606 standards.

-         The mechanical characteristics and transmission performance meet 16Mbps Token Ring, 10Base-T, 100Base-T, 155Mbps, 622Mbps ATM, Gigabit-Ethernet and 1.2Gbps ATM requirements.



Electrical Characteristics

 Contact material: Phosphor bronze alloy
 Contact plating: 24 Karat hard gold (50 micro-inch plating thickness) over 100 micro-inch nickel.



Cable Data

-         Twisted pair color code:
            Pair 1> blue, white/blue ring.
            Pair 2> orange, white/orange ring
            Pair 3> green, white/green ring
            Pair 4> brown, white/brown ring

-         Conductor: 24AWG (7x0.2±0.01mm) stranded anneal copper wire

-          Insulation material: HDPE,FRPE

-          Diameter of dielectric core: 0.99±0.02mm

-          Insulation thickness: min AVG 0.19mm

-          Number of twist pairs: 4 pairs

-          Assembly: 4 pairs of dielectric core shall be stranded in circular form.

-          Material of jacket: PVC/LSZH

-          Thickness of jacket: AVG 0.5mm

-          Nominal O.D.: 5.5±0.2mm

-          Flame rating: CM

-          Jacket color: red,orange,yellow,green,blue,grey, etc.

-          RJ45 Plug: Housing>polycarbonate

-          Contact>copper alloy 50u” gold plated over nickel

-          Strength: 20lbs. min

-          Durability: 200 cycles min.

-          Insulation resistance: 500 megaohms min.

-          Molded boots prevent pin from bending and cables from kink.

-          Wiring schemes: T568B



Applications

-         Voice

-         ISDN

-         10Base T(IEEE 802.3)

-         Fast Ethernet(IEEE802.3)

-         100Vg-AnyLAN(IEEE 802.12)

-         Token Ring(IEEE 802.5)

-         TP-PMD(ANSI X3T9.5)

-         100Base-T Ethernet(IEEE 802.3u)

-         155/622 Mbps ATM

-         1000Base-T

-         550 MHz Broadband video

 Standards

-         UL, ETL Verifi ed

-         ANSI/TIA-568-C.2

-         ISO/IEC 11801

-         EN 50173

-         Sản xuất tại Taiwan.
