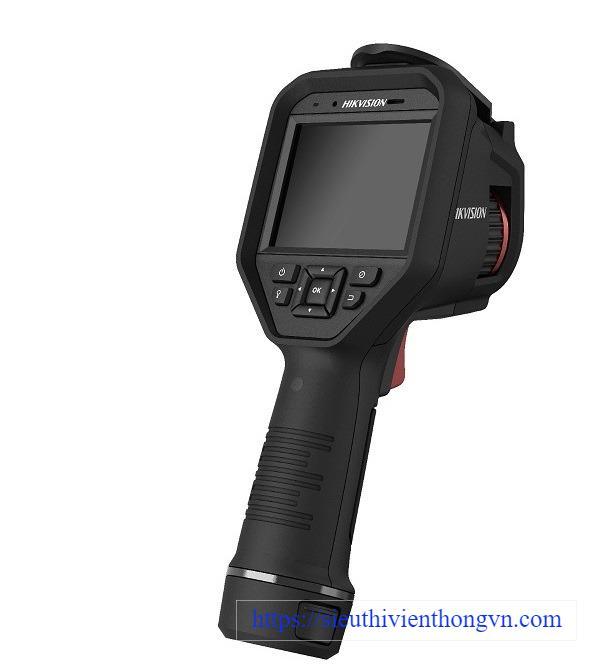

Camera IP đo thân nhiệt HIKVISION DS-2TP21B-6AVF/W
- Độ phân giải: 160 × 120 (ống kính nhiệt), 640 × 480 (ống kính quang).
- Độ sai số: ±0.5°C.
- Thermographic Range: 30°C to 45°C.
- Hiển thị kết hợp hình ảnh màu và nhiệt độ.
- FOV: 25°×18.7°.
- Màn hình cảm ứng 3.5-inch LCD.
- Hỗ trợ xem live view trên PC, mobile device.
- Hỗ trợ Wi-Fi.
- Hỗ trợ Pin sạc (Sử dụng 4~5 tiếng).
- Tích hợp bộ nhớ 16GB.
- Hỗ trợ đèn, âm thanh cảnh báo.
Đặc tính kỹ thuật
| Model | DS-2TP21B-6AVF/W |
| Parameter | Thermographic Handheld Camera |
| Thermal Module | |
| Image sensor | Uncooled Focal Plane Arrays |
| Resolution | 25Hz: 160 × 120 |
| Pixel Pitch | 17μm |
| Response waveband | 8μm to 14μm |
| NETD | < 40 mk (@ 25 °C,F#=1.0) |
| Field of View | 25° × 18.7° |
| Focal length | 6.2 mm (Manual focus) |
| IFOV | 2.74 mrad |
| Aperture | F 1.1 |
| Optical Module | |
| Picture Resolution | Configurable: 2 MP, 5 MP, 8 MP |
| Video Resolution | 640 × 480 |
| Monitor | 640 × 480 resolution 3.5-inch LCD touch display |
| Palettes | Black hot, White hot, Red hot, Rainbow, Ironbow, Fusion, Rain |
| Image Display | |
| Digital Zoom | Thermal: 1x, 2x, 4x |
| Thermal/Optical | Thermal/Optical/Fusion image/Picture in picture |
| Picture in Picture | Support Thermal View in Optical View |
| Fusion | Support (Thermal View and Optical View Combined) |
| Record Video | Support on-board video recording |
| Thermography | |
| Rules | Max. Temperature; Min. Temperature; Center Temperature; Custom Point/Line/Area Thermography |
| Range | 30°C to 45°C |
| Accuracy | ±0.5°C |
| Battery | |
| Battery Type | Dismountable and rechargeable Li-ion Battery |
| Battery Operating Time | 5 hours in normal temperature, with Wi-Fi, Bluetooth, and supplement light off. 4 hours in normal temperature, with Wi-Fi, Bluetooth, and supplement light on. |
| Storage | Built-in memory module (16G) |
| Photo | Thermal/Optical/Fusion image |
| Video | Thermal/Optical/Fusion image |
| Wi-Fi | Support |
| Text Comment | Support |
| Voice Comment | Support |
| Language | English |
| General | |
| Power | 5 VDC/2 A |
| Power Consumption | Max. 4.5 W |
| Hardware Interface | Type-C Interface |
| Working Temperature | 15°C to 35 °C |
| Protection level | IP54 |
| Drop Test Height | 2 m (6.56 feet) |
| Dimension | 244 mm × 100 mm × 104 mm |
| Weight | With Battery: 653 g (1.44 lb) Without Battery: 511 g (1.13 lb) |
- Bảo hành: 24 tháng.
