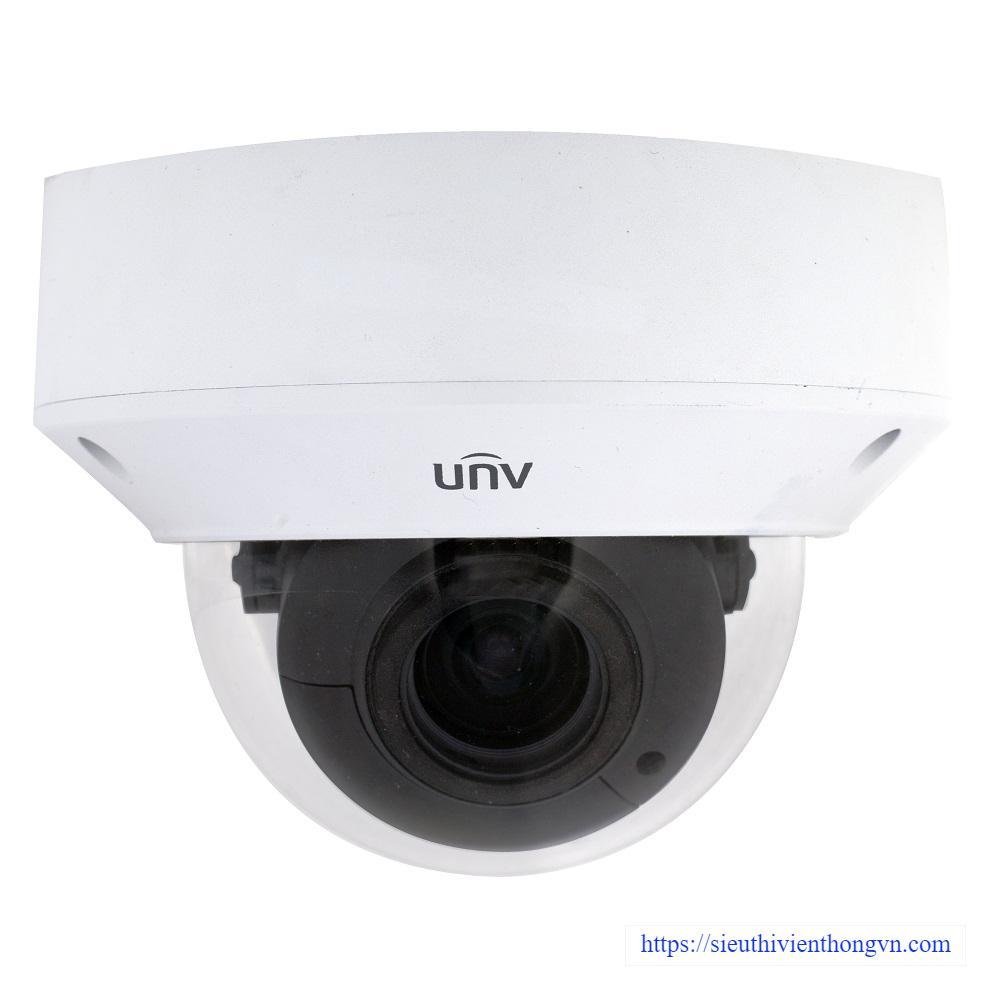

Camera IP Dome hồng ngoại 8.0 Megapixel UNV IPC3238ER3-DVZ
- Cảm biến hình ảnh: 1/2.5 inch CMOS.
- Độ phân giải camera ip: 8.0 Megapixel.
- Ghi hình: Max 30fps (3840×2160).
- Tiêu cự thay đổi: 2.8-12mm.
- Góc quan sát 79.6° ~ 26.3°.
- Tầm quan sát hồng ngoại: 30 mét.
- Độ nhạy sáng: 0.02 Lux.
- Chức năng quan sát ngày đêm ICR.
- Chức năng chống nhiễu 3D-DNR.
- Chức năng chống ngược sáng WDR 120dB.
- Chế độ hành lang Corridor mode.
- Chức năng đếm người ra vào, hàng rào bảo vệ ảo, vạch báo động, phát hiện khuôn mặt, phát hiện chuyển động.
- Hỗ trợ cổng Audio in/out: 1/1.
- Hỗ trợ cổng Alarm in/out: 1/1.
- Hỗ trợ thẻ nhớ lên tới 128GB.
- Tiêu chuẩn chống bụi và nước: IP67 (thích hợp sử dụng trong nhà và ngoài trời).
- Tiêu chuẩn chống va đập: IK10.
- Chức năng cấp nguồn qua mạng PoE.
- Nguồn điện: 12VDC.
Đặc tính kỹ thuật
| Model | IPC3238ER3-DVZ |
| Camera | |
| Sensor | 1/2.5 inch progressive scan CMOS, 8.0 megapixel |
| Lens | 2.8~12 mm@F1.6 |
| Angle of View (H) | 79.6°~34.9° |
| Adjustment angle | Pan: 0°~360°, Tilt: 0°~80°, Rotate: 0°~360° |
| Shutter | Auto/Manual, 1~1/100000s |
| Minimum Illumination | Color: 0.02 Lux (F1.6, AGC ON); 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Digital noise reduction | 2D/3D DNR |
| IR Range | 30m |
| Defog | Digital Defog |
| WDR | 120dB |
| Video | |
| Video Compression | Ultra 265,H.265, H.264, MJPEG |
| H.264 code profile | Baseline profile, Main Profile, High Profile |
| HLC | Supported |
| BLC | Supported |
| 9:16 Corridor Mode | Supported |
| OSD | Supported |
| Privacy Mask | Up to 8 areas |
| ROI | Up to 8 areas |
| Motion Detection | Up to 4 areas |
| Smart | |
| Supporting | Behavior Detection; Intrusion; Cross line; Motion detection; Recognition; Intelligent Identification; Statistical Analysis |
| General Function | Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
| Audio | |
| Audio Compression | G.711 |
| Two-way audio | Supported |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP |
| Compatible Integration | ONVIF (Profile S, Profile G), API |
| Interface | |
| Audio I/O | 1/1 |
| Alarm I/O | 1/1 |
| Network | 1 RJ45, 10M/100M Base-TX Ethernet |
| Edge Storage | Micro SD, up to 128 GB |
| General | |
| Power | DC12V±25%, PoE (IEEE802.3 af) |
| Power consumption | Max.8.7 W |
| Ingress Protection | IP67 |
| Vandal Resistant | IK10 |
| Dimensions | Φ148 x 111.3 mm |
| Weight | 0.75kg |
- Bảo hành: 02 năm.
