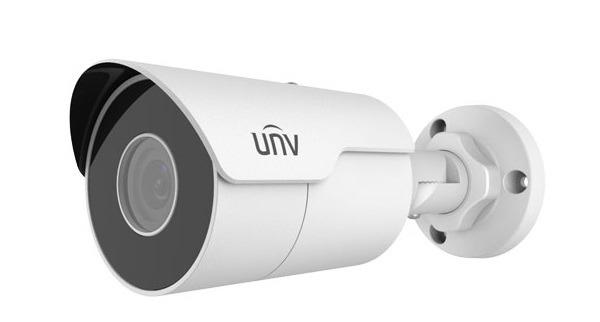

Camera IP hồng ngoại 4.0 Megapixel UNV IPC2124LR5-DUPF40M-F
- Cảm biến hình ảnh: 1/3 inch progressive scan CMOS.
- Độ phân giải camera ip: 4MP (2688*1520), Max 25fps.
- Chuẩn nén hình ảnh: Ultra265/H.265/H.264/MJPEG.
- Hỗ trợ 3 luồng video.
- Ống kính: 4mm.
- Tầm quan sát hồng ngoại: 50 mét.
- Độ nhạy sáng: 0.005Lux (F1.6, AGC ON).
- Công nghệ nén băng thông U-code.
- Tự động chuyển ngày đêm, tự động cân bằng ánh sáng trắng.
- Chức năng chống ngược sáng WDR 120dB.
- Phát hiện chuyển động, phát hiện dáng người.
- Tiêu chuẩn chống bụi nước: IP67 (thích hợp sử dụng trong nhà và ngoài trời).
- Chuẩn Onvif quốc tế.
- Hỗ trợ tên miền miễn phí trọn đời.
- Nguồn cấp: DC12V (± 25%) và PoE.
- Vật liệu vỏ: Kim loại.
Đặc tính kỹ thuật
| Camera | |
| Sensor | 1/3 inch, 4.0 megapixel, progressive scan, CMOS |
| Lens | 4.0mm@F1.6 |
| Angle Of View (H) | 79.7° |
| Angle Of View (V) | 41.6° |
| Angle Of View (O) | 98.0° |
| Adjustment Angle | Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360° |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Minimum Illumination | Colour: 0.005Lux ( F1.6, AGC ON) 0Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Digital Noise Reduction | 2D/3D DNR |
| S/N | >52dB |
| IR Range | Up to 50m (164ft) IR range |
| Wavelength | 850nm |
| IR On/Off Control | Auto/Manual |
| Defog | Digital Defog |
| WDR | 120db |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 Code Profile | Baseline profile, Main Profile, High Profile |
| Frame Rate | Main Stream: 4MP (2688*1520), Max 25fps Sub Stream: 720P (1280*720), Max 25fps |
| Video Bit Rate | 128 Kbps~16 Mbps |
| OSD | Up to 4 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Up to 4 areas |
| Motion Detection | Up to 4 areas |
| Image | |
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital noise reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Normal/Vertical/Horizontal/180° |
| Dewarping | Supported |
| HLC | Supported |
| BLC | Supported |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL |
| Compatible Integration | ONVIF (Profile S, Profile T), API |
| Client | EZStation EZView EZLive |
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ |
| Interface | |
| Network | 10/100M Base-TX Ethernet |
| Certifications | |
| Certifications | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 |
| General | |
| Power | DC 12V±25%, PoE (IEEE 802.3af) Power consumption: Max 6W |
| Dimensions(L × W × H) | 191.3×72.6×70.9mm |
| Net Weight | 0.5kg |
| Material | Metal |
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Surge Protection | 2KV |
| Ingress Protection | IP67 |
- Bảo hành: 02 năm.
