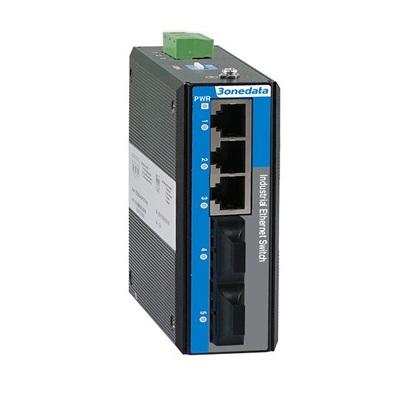

Switch công nghiệp 3 cổng Ethernet + 2 cổng quang (2 sợi quang, Multi Mode, SC, 2KM) 3Onedata IES2105-3T2F(MSC2KM)-P48
IES2105 series are unmanaged industrial PoE/Non-PoE Ethernet switches. This series provide 8 products to choose from and support 100M copper ports, 100M fiber ports and 100M PoE copper ports, as well as multiple power supply schemes, 220VAC, 12~48VDC and 48VDC PoE. They adopt DIN-Rail mounting to meet the requirements of different application scenes.
| Standard & Protocol | IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX and 100BaseFX IEEE 802.3x for Flow Control IEEE 802.1Q for VLAN IEEE 802.3af for PoE IEEE 802.3at for PoE+ | |||||||||
| PoE | The maximum power of PoE port: 30W
The power supply pin of PoE: V+, V+, V-, V- correspond to Pin 1, 2, 3, 6 | |||||||||
| Interface | 100M copper port: 10/100Base-T(X), RJ45, Automatic Flow Control, Full/half Duplex Mode, MDI/ MDI-X Autotunning
100M fiber port: 100Base-FX, optional SC/ST/FC 100M POE copper port: 10/100Base-T(X) RJ45, automatic flow control, full/half duplex mode, MDI/ MDI-X autotunning, POE port, output power of 15W or 30W. | |||||||||
| Indicator | Port Indicator, Power Supply Indicator, PoE Indicator | |||||||||
| Switch Property | MAC address: 2K
Backplane bandwidth: 1G Transmission mode: store and forward Switch time delay: <10μs | |||||||||
| Power Supply | Optional AC/DC power supply, 12~ 48VDC, 48VDC PoE or 220VAC
3-pin 7.62mm pitch terminal blocks | |||||||||
| Power Consumption |
| |||||||||
| Working Environment | Operating temperature: -40~75℃
Storage temperature: -40~85℃ Relative humidity: 5%～95% (no condensation) | |||||||||
| Physical Characteristic | Housing: IP40 protection, metal
Installation: DIN-Rail mounting Dimension (W x H x D): 35mm×110mm×95mm Weight l IES2105-5T-P48, IES2105-5T-P220: 356g l IES2105-4P1F-P48, IES2105-4P1F-P220: 384g l IES2105-4T1F-P220: 375g l IES2105-3T2F-P48, IES2105-3T2F-P220: 355g | |||||||||
| Industrial Standard | IEC 61000-4-2 (ESD, electrostatic discharge), Level 4
l Air discharge: ±15kV l Contact discharge: ±8kV IEC 61000-4-4 (EFT, electrical fast transient), Level 4 l Power supply: ±4kV l Signal: ±2kV IEC 61000-4-5 (Surge), Level 4 l Power supply: differential mode±2kV, common mode±4kV l Signal: differential mode±2kV, common mode±4kV Shock: IEC 60068- 2- 27 Free fall: IEC 60068- 2- 32 Vibration: IEC 60068- 2- 6 | |||||||||
| Certification | CE, FCC, RoHS | |||||||||
| Warranty | 5 years |
