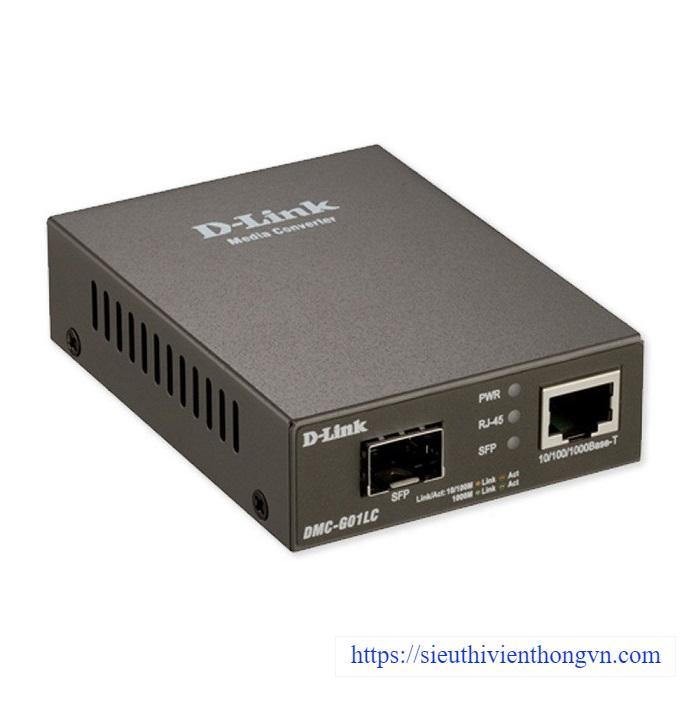

10/100/1000Mbps to SFP Media Converter D-Link DMC-G01LC/E
- D-Link’s DMC-G01LC standalone media Converter turns a copper Ethernet link into a fiber link, allowing for an ultra-fast, long distance connection. Installation of a standalone media converter is simple, and allows you to tap into fiber speeds with ease. Instead of requiring an investment in an entire chassis, a standalone media converter provides the same high-quality conversion on a unit-by-unit basis. You can save space and cut costs while still extending your network over long distances of 10 km and beyond on a fiber optic line.
- The fiber side of the DMC-G01LC utilizes a 100/1000 SFP port for maximum flexibility. Using the appropriate SFP transceiver (purchased separately) it can support either multimode or single-mode fiber, varying wavelengths, and speeds of either 100 Mbps or 1000 Mbps.
Specifications
| Model | DMC-G01LC/E |
| Features | LAN 1 x 10/100/1000 Mbps port IEEE 802.3u IEEE 802.3x IEEE 802.3ab Auto-Negotiation for each port Full-Duplex operation at 1000 Mbps Half/Full-Duplex operation at 10/100 Mbps Back pressure at Half-Duplex operation Auto MDI/MDIX Wire speed reception and transmission Supports Jumbo frames up to 9216 bytes at 1000 Mbps LLR (Link Loss Return) LLCF (Link Loss Carry Forward) |
| Packet Buffer Memory | 56 Kbit |
| Switching Capacity | 2 Gbps |
| External Power Adapter | Switching 5V/1A Level V Power Adapter, ErP compliant |
| Power Consumption (Max.) at 240V | DC 2.34W AC 3.46W |
| Power Consumption (Standby) at 240V | DC 1.49W AC 2.06W |
| Heat Dissipation | 11.81 BTU/h (Max.) 7.75 BTU/h (Standby) |
| Dimensions (L x W x H) | 95 x 70 x 25mm |
- Bảo hành 12 tháng.
